SANY SCC1000C - Main Hoisting Winch - Checking the Connecting Bolts

- 90/250 -
Section 1 Maintenance
SCC1000C Crawler Crane — Maintenance Manual
7�1�5 Main Hoisting Winch - Checking the Connecting Bolts
-- As all the securing bolts are applied with bolt thread sealant, they normally will not loosen up and a visual
inspection would be sufcient.
-- Any bolt that is found loose, broken or defective must be replaced.
-- Apply a little amount of thread sealant on thread and surface of all bolts.
-- Check the slewing reducer cap, pipelines, and bearing housings for leaks.

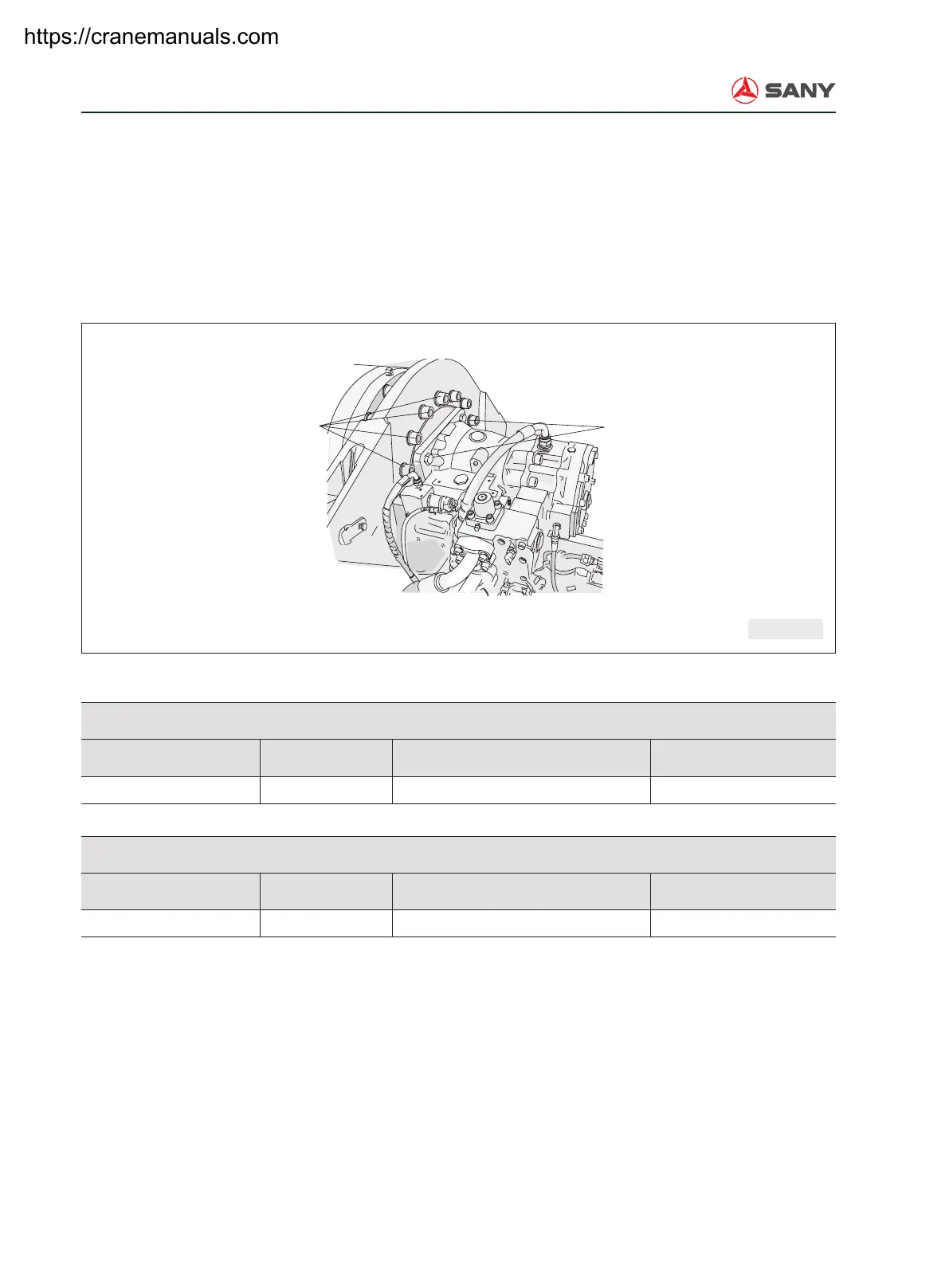

Structure and Mounting Position of Aux. Hoisting Winch
Reducer mounting
bolt
Hydraulic motor
securing bolt
Torque Value of Reducer Mounting Bolts and Bracket
Diameter(mm) Grade Pre-tightening Torque Screw sealant
M24(15/16") 10.9 940~1120N•m(693~826ft•lb) ○
Torque Value of Hydraulic Motor Securing Bolts and Bracket
Diameter(mm) Grade Pre-tightening Torque Screw sealant
M20(13/16") 10.9 650N•m(480ft•lb) ○
