SANY SCC1000C - Checking Air Intake Piping and Pipe Clamp

- 63/250 -
Section 1 Maintenance
SCC1000C Crawler Crane — Maintenance Manual
4�4�5 Checking Air Intake Piping and Pipe Clamp

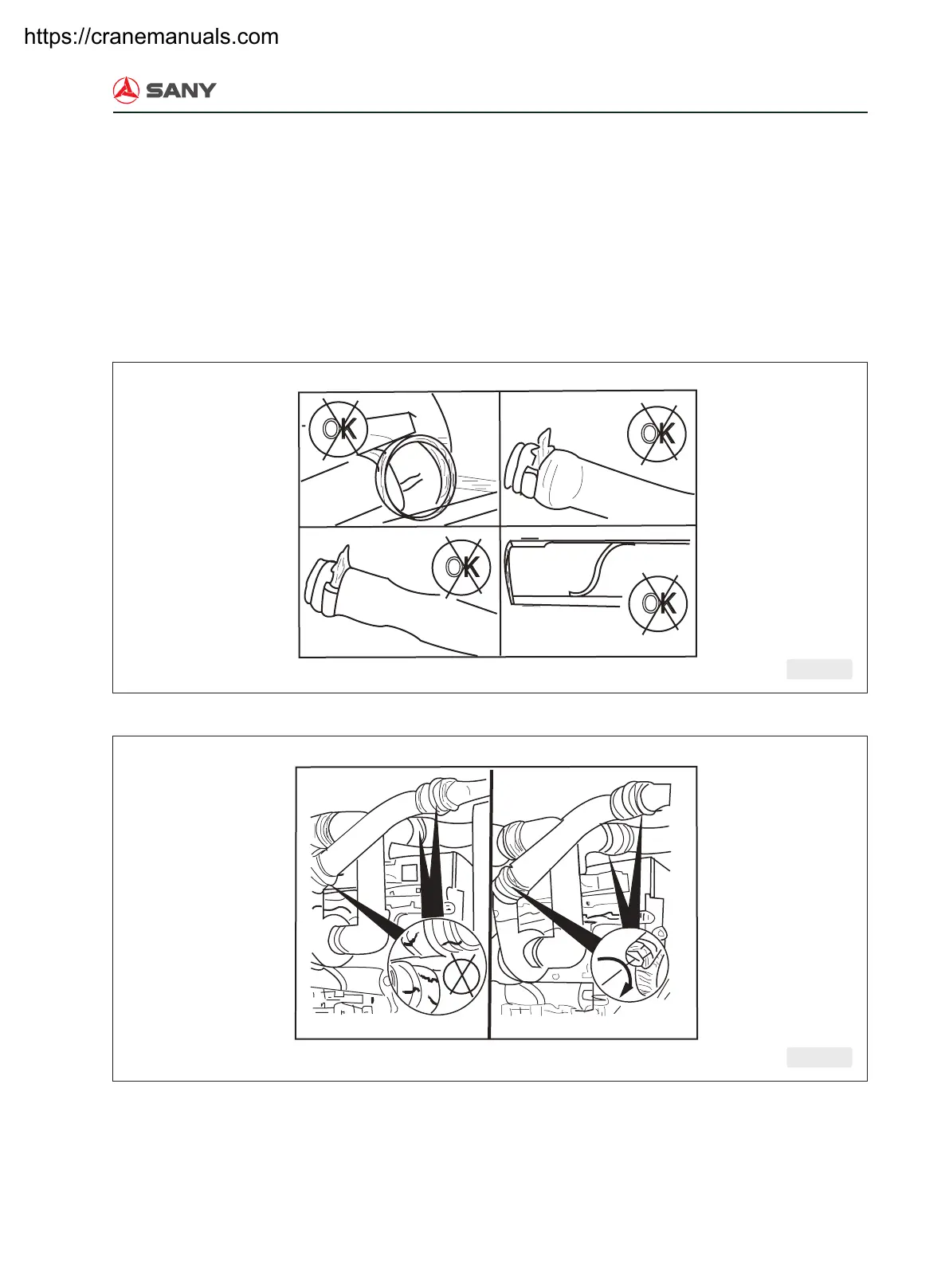

Check the air intake piping for cracks, deformation, loose clamps. Replace the damaged pipes and
tighten loose clamps if the situation illustrated in the following figure occurs. Replace the clamp if
necessary.
Note: The piston ring can be seriously worn even quite a little amount of dirt entering the engine. Make
sure that the air intake system is clean and has no leaks.
TY 0206
TY 0207
OK
OK
OK
OK
OK
