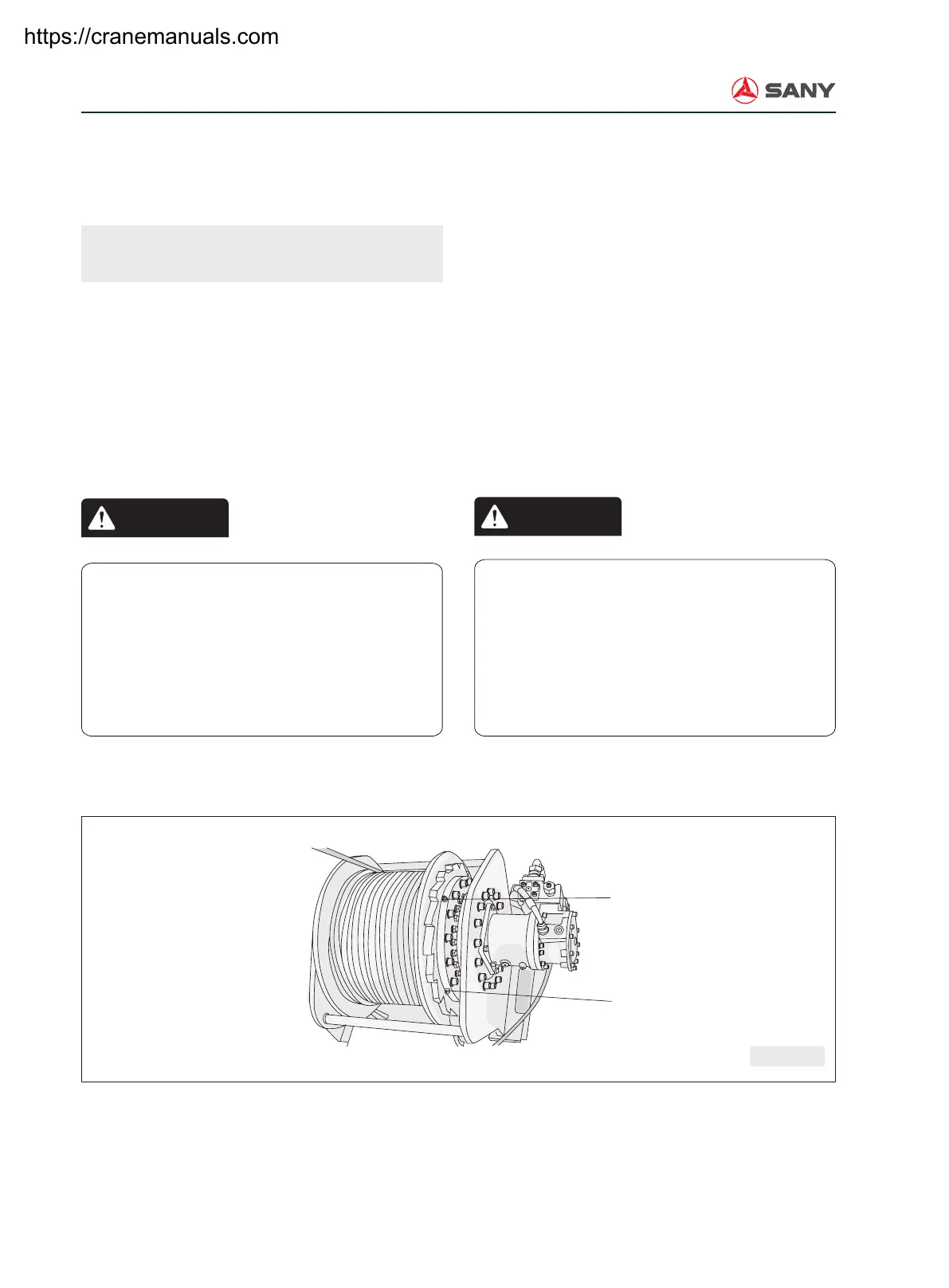

SCC1000C Crawler Crane — Maintenance Manual
DANGER
□
8
Boom Lufng Winch (Kawasaki)
Refer to 8.2 “Changing Oil” for the operating of
lling lubricating oil.
Checking procedures:
1. Park the machine on a at level surface,
2. Remove the oil level plug,
3. If the oil surface can be seen, the oil is sufcient.
8.1 Boom Lufng Winch - Checking the
Oil Level
Danger of dragging or entanglement.
Pay special attention while implementing
th e ma i n t e n a n c e , in s p e c t i o n an d
installation, because there is danger of
being dragged into area between the
winch and wire ropes�
CAUTION
If an oil leak is detected while checking the
oil level, the operation must be temporarily
stopped, and the system sshould be
disassembled for examination� This work
can only be carried out by trained and
experienced professionals�
Oil lling plug
Oil level plug
T103 4001
