Section 1 Maintenance
SCC1000C Crawler Crane — Maintenance Manual
-- The oil level of the hydraulic oil tank can be checked through the site glass on the hydraulic oil tank.
-- When the crane is placed level, if the hydraulic oil reaches the oil level marking of the level gauge, then
the level is correct
.
-- During the operation, hydraulic oil should be lled at the 1/2 position of liquid level meter.
-- Before lling the oil, oil tank must be checked for cleanness.
-- Oil leakage is prohibited after lling the oil.
-- Concerning the hydraulic oil tank construction diagram, refer to parts manual-hydraulic oil tank.

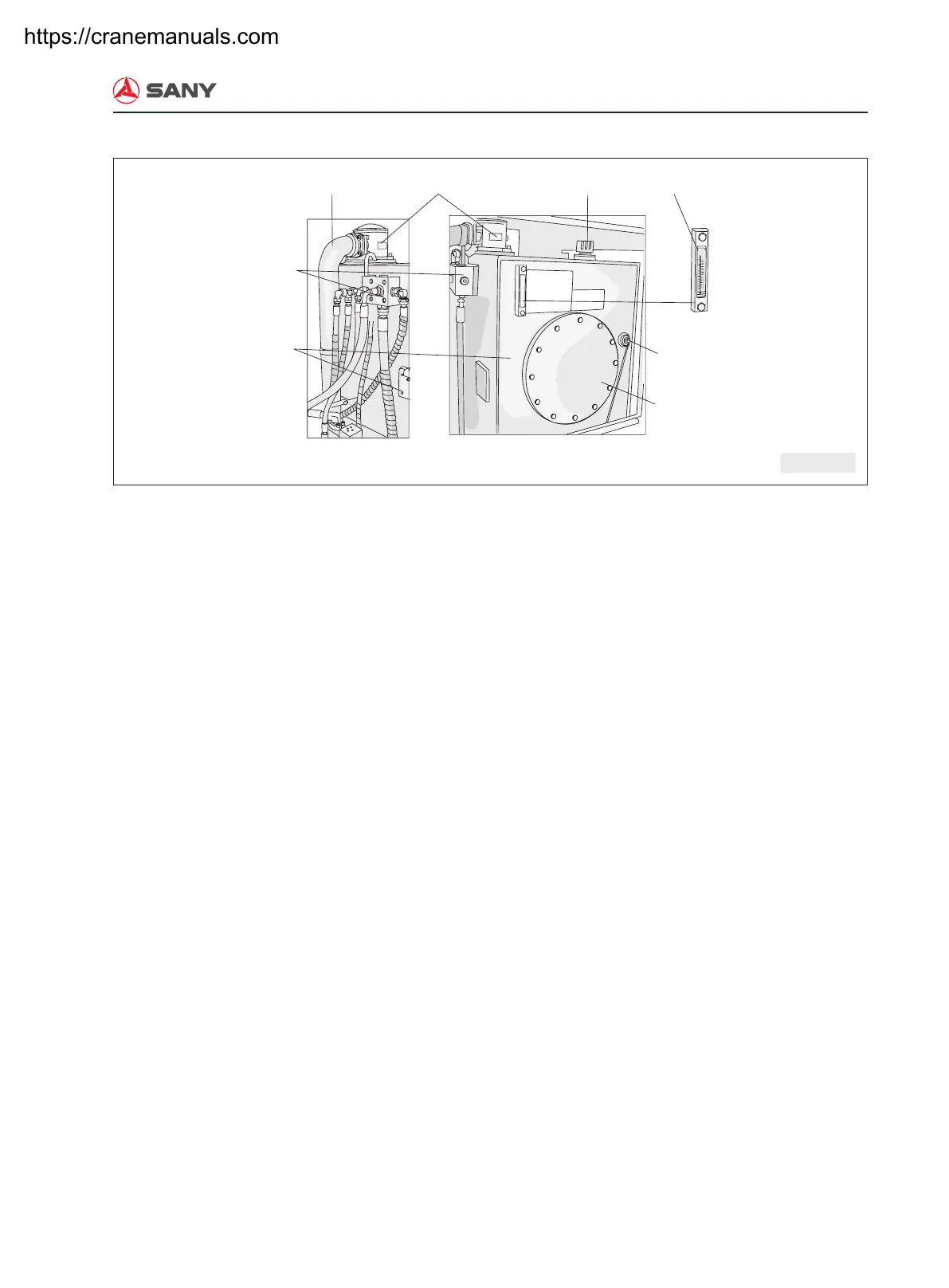

Hydraulic Oil Tank
Oil
temperature
sensor
Oil return pipe
Oil return lter
Air lter
Liquid level liquid
temperature gauge
Oil return block
Oil tank body
Cleaning port
cap
T103 9002
