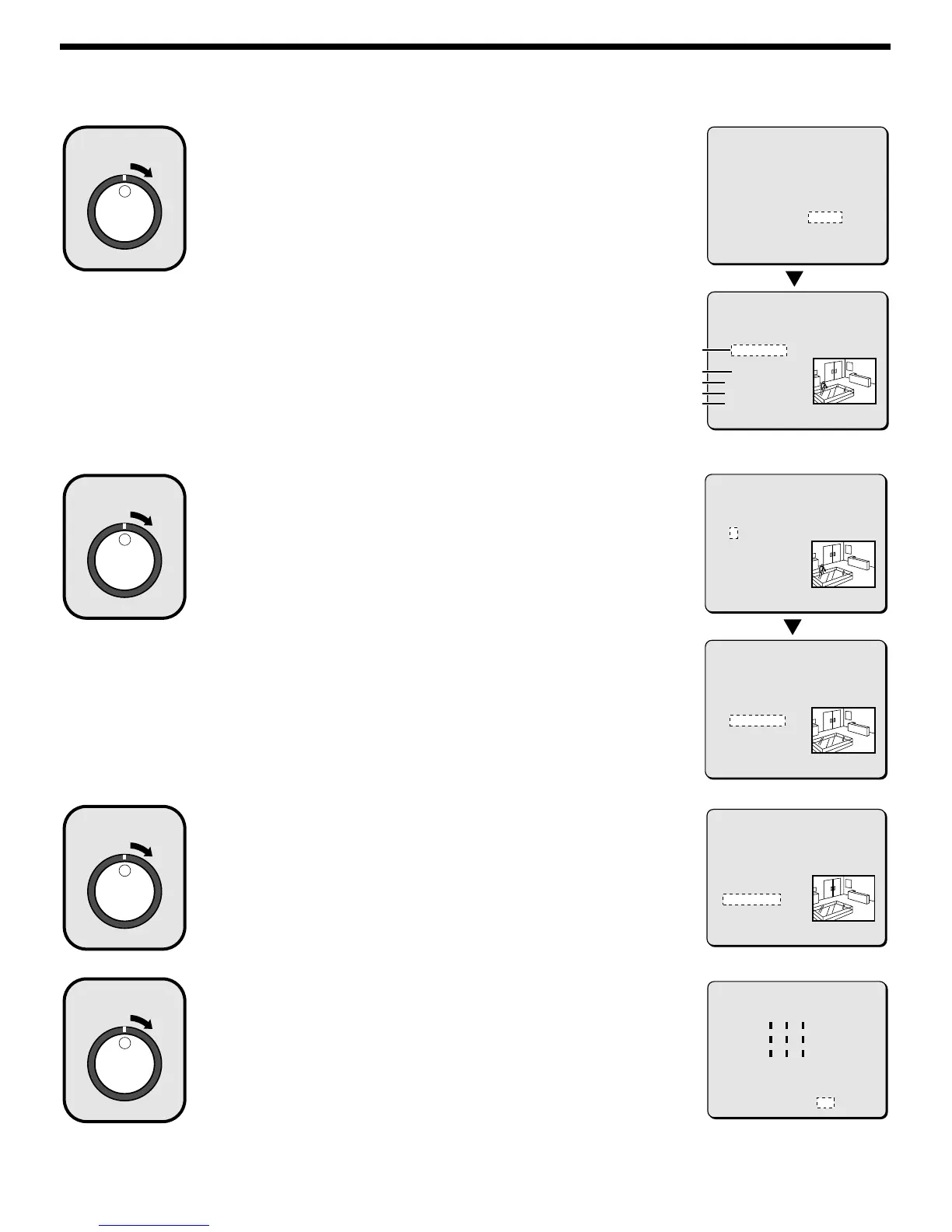

SEARCHING FOR RECORDED IMAGES
Turn the shuttle dial clockwise.
The screen changes and the preview screen for camera number 4 appears.
1
START: The date and time for the first image in the selected recording area
appears.
You can also select the screen which has a motion sensor set.
2
END: The date and time for the last image in the selected recording area
appears.
One hour is added to the time that is displayed.
You can also select the screen which has a motion sensor set.
3
MOTION SENSOR: The motion sensor appears.
4
PREVIEW: The selected start point appears.
If you turn the shuttle dial clockwise, you can check the images
up until the end point.
5
VIEW: The selected image appears on the monitor as a single-screen image
in a normal screen.
Turn the shuttle dial clockwise.
Use the jog dial to set the START date and time (example: 10.00 am on the
current day) for the motion sensor setting, and then turn the shuttle dial
clockwise.
The image for the specified time appears in the preview screen, and the cursor
moves to the END date and time setting location.
Turn the shuttle dial clockwise.
Use the jog dial to set the END date and time (example: 8.00 pm on the current
day) for the motion sensor setting, and then turn the shuttle dial clockwise.
The cursor moves to MOTION SENSOR.
Turn the shuttle dial clockwise.
The motion sensor setting screen appears.
Set the motion sensor to cover the area where you would like movement to be
observed.
Move the cursor to EXIT and turn the shuttle dial clockwise. The display returns
to the MOTION DETECTION SEARCH screen. Refer to page 58 for details on
motion sensor settings.
6
<MOTION DETECTION SEARCH>
SEARCH FROM : NORMAL
START : 10-28-01 08:00
END : 10-28-01 20:00
CHANNEL : 4
START PREVIEW -> SEARCHING
MOVE:JOG SELECT:SHUTTLE
<MOTION DETECTION SEARCH>
SEARCH FROM : NORMAL / CHANNEL : 4
START :
10-28-01 08:00
END :
10-28-01 10:00
MOTION SENSOR ->
PREVIEW ->
VIEW ->
MOVE:JOG SELECT:SHUTTLE
1
2
3
4
5
7
<MOTION DETECTION SEARCH>
SEARCH FROM : NORMAL / CHANNEL : 4
START :
10-28-01 08:00
END :
10-28-01 20:00
MOTION SENSOR ->
PREVIEW ->
VIEW ->
MOVE:JOG SELECT:SHUTTLE
<MOTION DETECTION SEARCH>
SEARCH FROM : NORMAL / CHANNEL : 4
START :
10-28-01 10:00
END :
10-28-01 20:00
MOTION SENSOR ->
PREVIEW ->
VIEW ->
MOVE:JOG SELECT:SHUTTLE
8
<MOTION DETECTION SEARCH>
SEARCH FROM : NORMAL / CHANNEL : 4
START :
10-28-01 10:00
END :
10-28-01 20:00
MOTION SENSOR ->
PREVIEW ->
VIEW ->
MOVE:JOG SELECT:SHUTTLE
9
----------
----------
---úúú----
---úúú----
---úúú----
----------
----------
----------
LEVEL : 6 EXIT
