Sanyo PLC-WXU30 - Part Names and Functions; Front; Back; Bottom

10
@ Kensington Security Slot
This slot is for a Kensington lock used to deter
theft of the projector.
* Kensington is a registered trademark of ACCO Brands
Corporation.
Bottom
Back

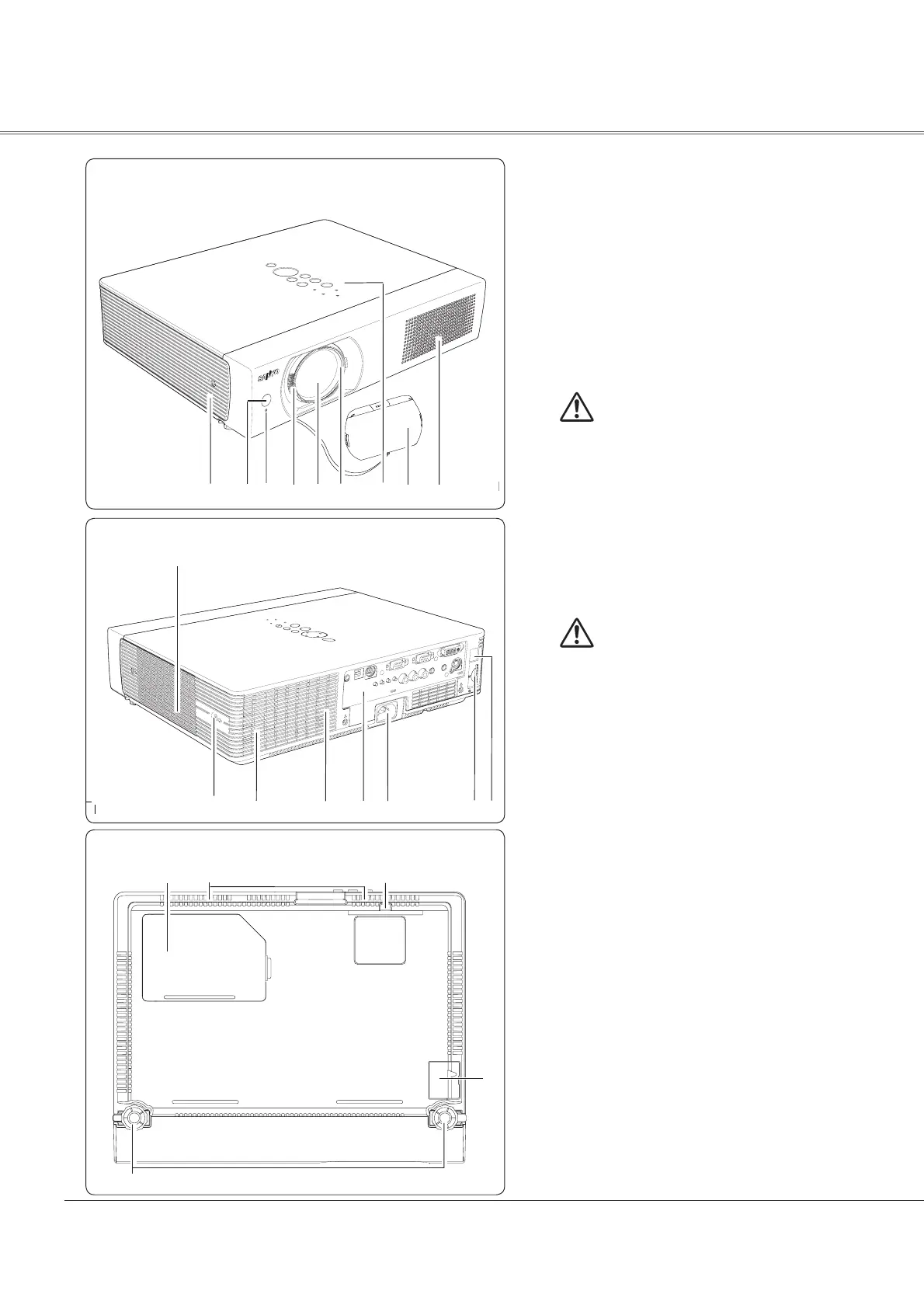

DAlarm Speaker
JInfrared Remote Receiver
8 WIRELESS Indicator
EFocus Lever
GProjection Lens
LZoom Ring
H Top Controls and Indicators
< Lens Cover
BAir Intake Vent
Exhaust vent
 Speaker
 Air Intake Vent (back and bottom)
Terminals and Connectors
Power Cord Connector
SD Card Slot
 LAN Connection Terminal
 Lamp Cover
Filter
Battery Cover
Adjustable Feet


CAUTION
Hot air is exhausted from the exhaust
vents. Do not put heat-sensitive objects
near this side.
HE G L
Front
D
J
@
Part Names and Functions


< B



8



Note:
8WIRELESS Indicator and  
LAN Connection Terminal are for
the Network function. Refer to the
owner’s manual “Network Set-up and
Operation”.
CAUTION
Do not turn on a projector with lens cap
attached. High temperature from light
beam may damage lens cap and result in
fire hazard.
