Part Names and Functions

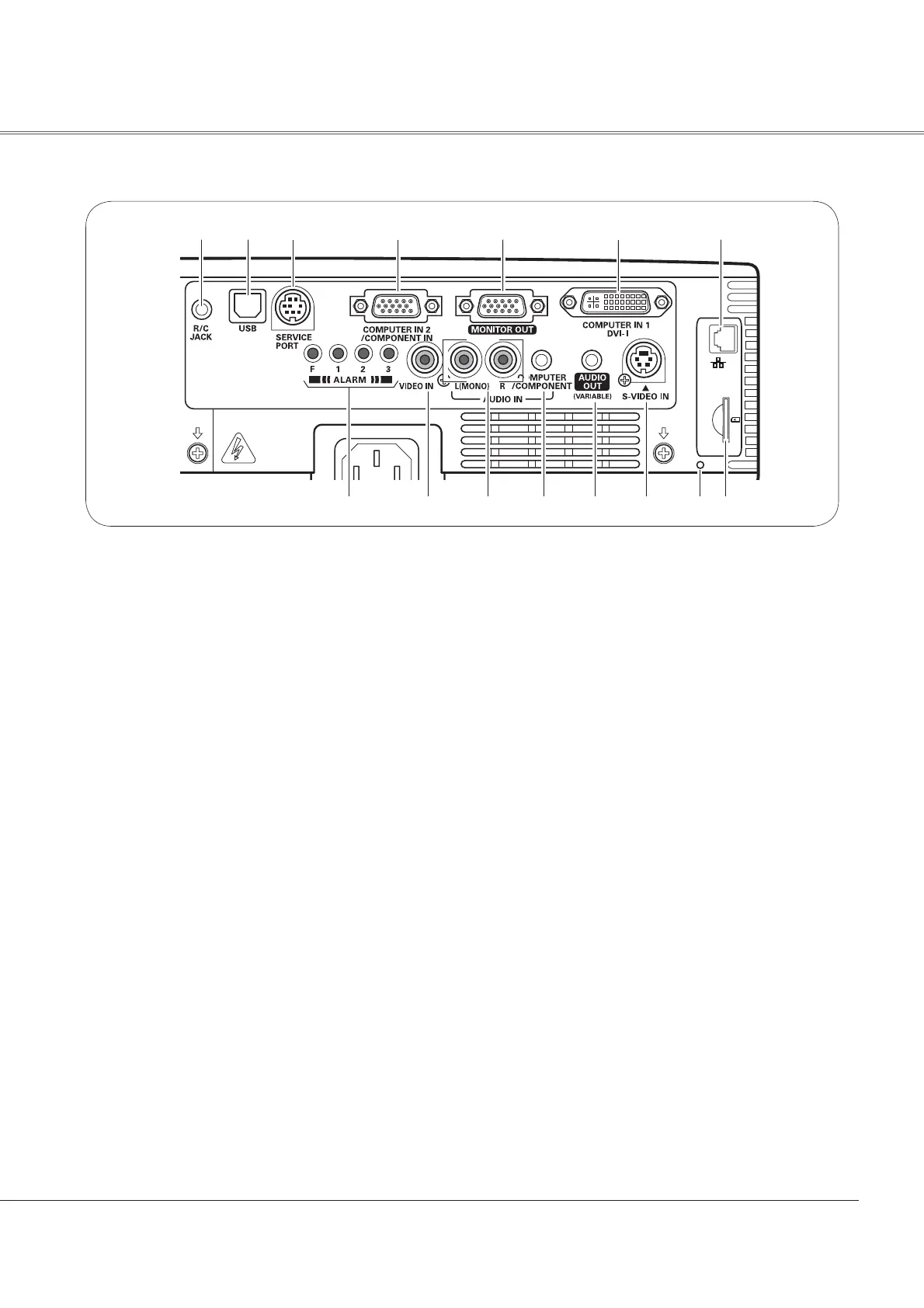

Rear Terminal
S-VIDEO IN
Connect the S-VIDEO output signal from video
equipment to this jack (p.20).
AUDIO IN
Connect the audio output signal from video
equipment connected to B or  to this jack. For a
mono audio signal (a single audio jack), connect it
to the L (MONO) jack (p.20).
COMPUTER/COMPONENT AUDIO IN
Connect the audio output (stereo) signal from a
computer or video equipment connected to E or L
to this jack (pp.19, 21).
BVIDEO IN
Connect the composite video output signal to this
jack (p.20).
ECOMPUTER IN 2/COMPONENT IN
Connect the computer or component video (or RGB
Scart) output signal to this terminal (pp.19, 21).
Use the supplied VGA cable or a Component-VGA
cable commercially available.
AUDIO OUT (VARIABLE)
Connect an external audio amplifier to this jack
(pp.19–21).
This terminal outputs sound from AUDIO IN terminal
( or ).
DR/C JACK
When using the wired remote control, connect
the wired remote control to this jack with a remote
control cable (not supplied).
8SERVICE PORT
This jack is used to service the projector.
LCOMPUTER IN 1/DVI-I
Connect computer output (Digital/Analog DVI-I
type) to this terminal (p.19).
SD Card Indicator
Display the status of SD card.When inserting SD
Card, the indicator lights, and when removing SD
Card, the indicator turns off.
HLAN Connection Terminal
Connect the LAN cable (refer to the owner’s manual
“Network Set-up and Operation”).
SD
KB3AC
D J 8 E G L
<
H
B  
JUSB (Series B)
In order to operate the computer with the remote
control and use the PAGE
! buttons on the
remote control during a presentation, connect the
USB port of the computer to the USB terminal with
a USB cable (not supplied) (pp.13, 19).
GMONITOR OUT
This terminal can be used to output the incoming
RGB analog signal from COMPUTER IN 1 and
COMPUTER IN 2/COMPONENT IN terminal to the
other monitor (p.19).
<ALARM buttons
Use these buttons when setting up the Alarm
function (pp.58–59).
  
 SD Card Slot
Insert the SD card memory (not supplied) for
Memory viewer operation(refer to the owner’s
manual of Memory viewer).

