Installation
Connecting to Video Equipment
Cables used for connection
• Video Cable
• S-Video Cable
• S-Video-VGA Cable
• Audio Cables
(Cables are not supplied with the projector. )
✔Note:
• When the AUDIO OUT is plugged-in, the projector's built-in speaker is not available.
• See page 73 for ordering optional cables.
Unplug the power cords of both the projector and external equipment from the AC outlet before connecting
cables.

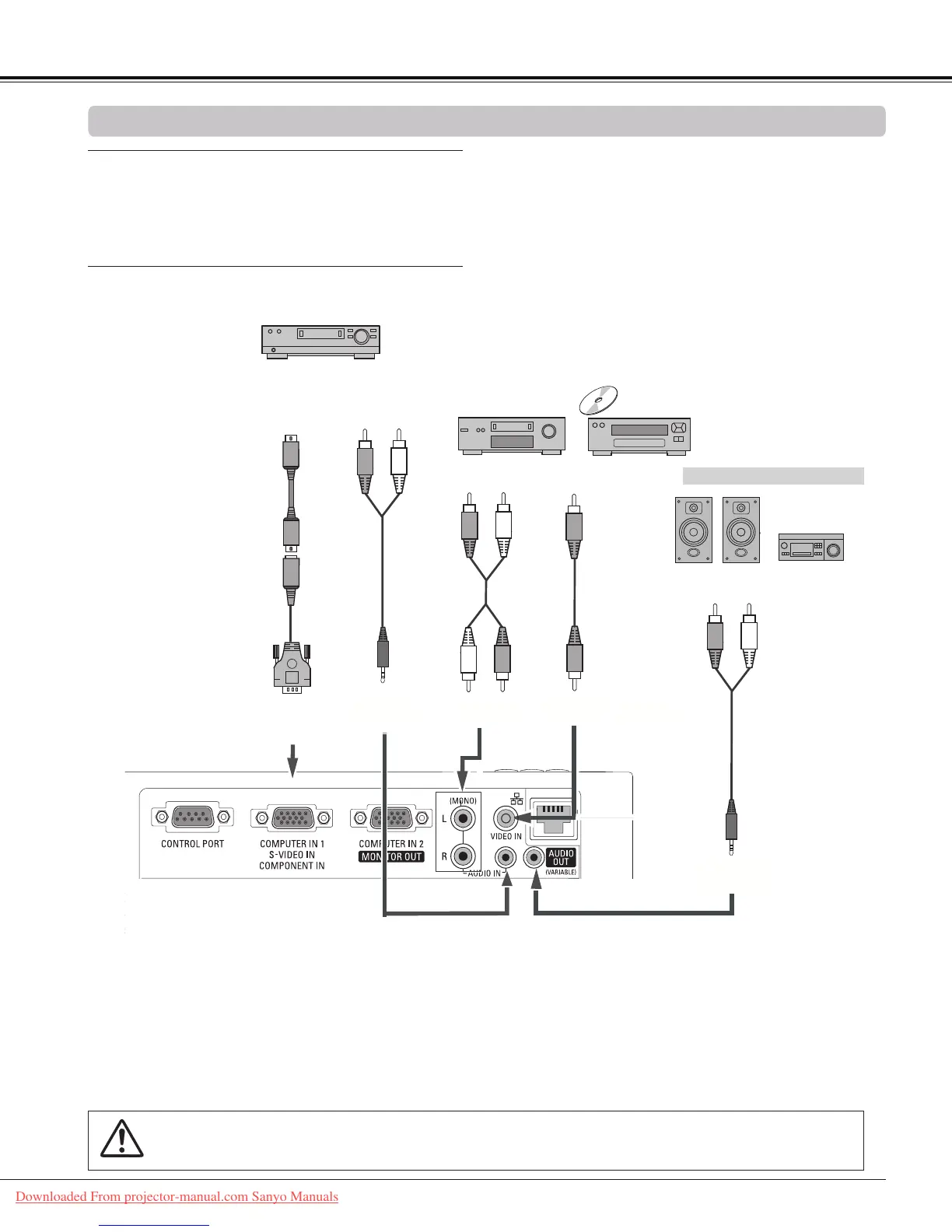

External Audio Equipment
Audio cable
(stereo)
S-Video cable
Composite Video and Audio Output
S-Video Output and Audio output
Audio Input
AUDIO IN
S-Video-VGA
cable
Video cable
COMPUTER IN 1
/ S-VIDEO IN
/COMPONENT IN
VIDEO IN
Audio
cable
(stereo)
AUDIO OUT
(stereo)
AUDIO IN
Audio
cable
(stereo)
