8

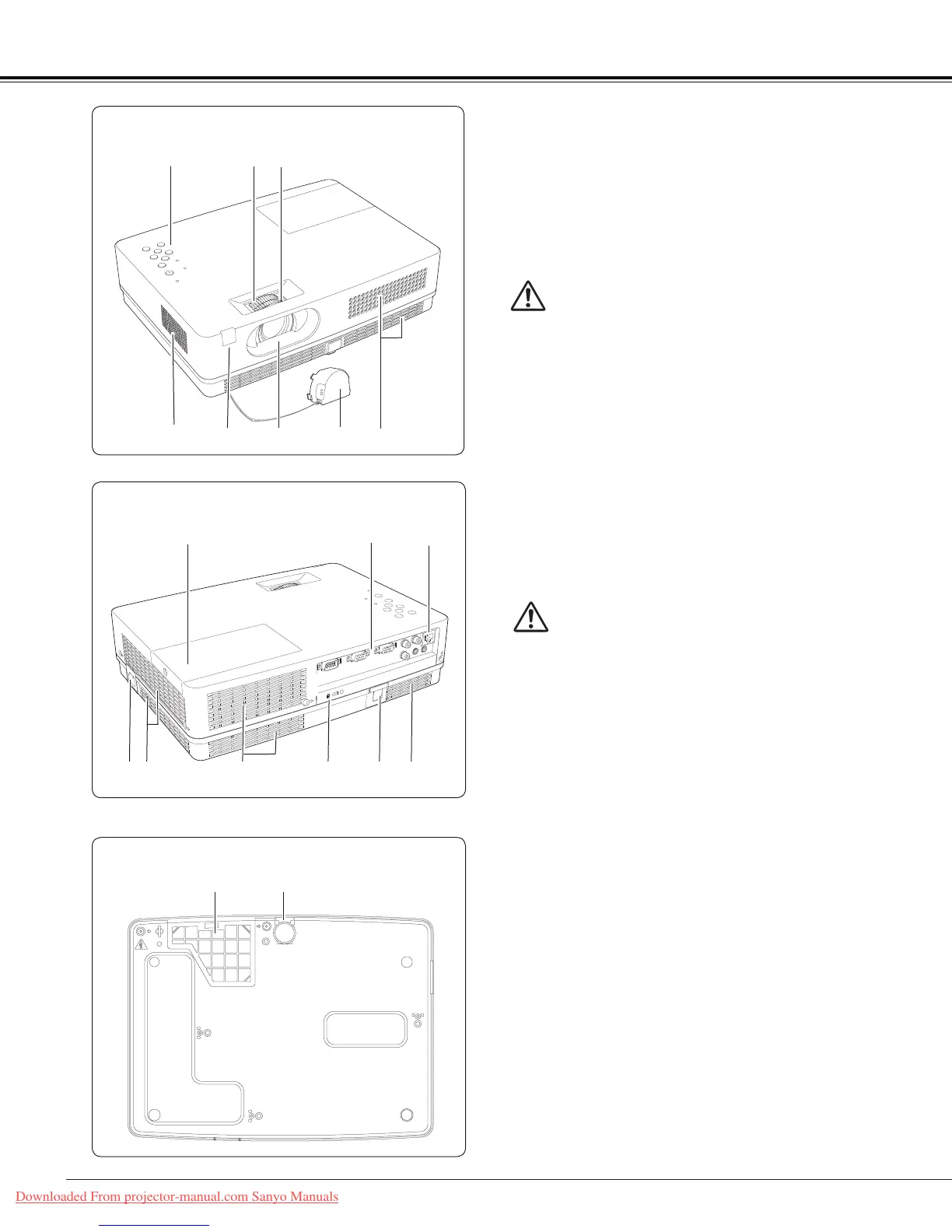

Part Names and Functions
⑤
⑦ ⑧
③
②
Front
Back
⑥
① Top controls and Indicators
② Zoom Ring
③ Focus Ring
④ Speaker
⑤ Infrared Remote Receiver
⑥ Projection Lens
⑦ Lens Cap
(See page 61 for attaching.)
⑧ Air Intake Vent
⑨ Lamp Cover
⑩ Terminals and Connectors
⑪ LAN Connection Terminal
⑫ Power Cord Connector
⑬ Exhaust Vents
CAUTION
Hot air is exhausted from the exhaust vent. Do not put
heat-sensitive objects near this side.
⑭ Filters
⑮ Adjustable Foot
✔
Note:
⑪
LAN Connection Terminal is for the Network function.
Refer to the owner’s manual of “Network Set-up and
Operation” .
✽ Kensington Security Slot
This slot is for a Kensington lock used to deter theft of
the projector.
*Kensington is a registered trademark of ACCO Brands
Corporation.
CAUTION
Do not turn on a projector with lens cap attached. High
temperature from light beam may damage lens cap and
result in fire hazard.
④
⑩
⑧
⑪
⑨
✽
Bottom
⑮
①
⑭⑬⑬⑫
⑭
