Sanyo PLC-XF1000 Service Manual

-24-

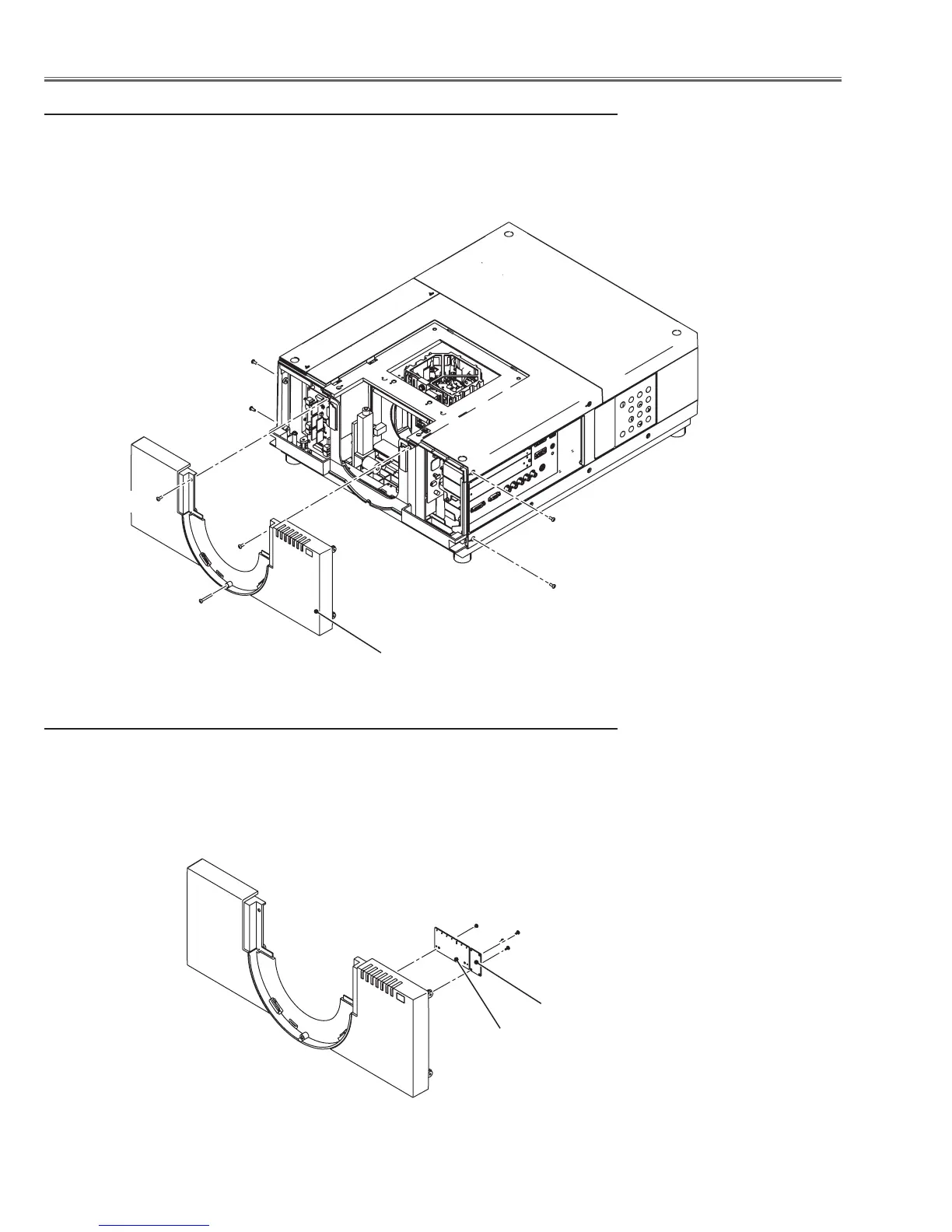

Mechanical Disassembly
2 Cabinet front removal
1 Remove 4 screws-A (M4x10), 2 screws-B (M4x10) and 1 screw-C (M4x30).
2 Disconnect the cable on the LED board and remove the cabinet front.
2-1 LED and front RC boards removal
1 Remove 2 screws-A (T3x6) on the LED board and 2 screws-B (T3x6) on the front
RC board and then remove boards.
Cabinet front
Front RC board
LED board
A
A
A
A
C
B
B
A
A
B
B

Sanyo PLC-XF1000 Specifications

General

Vertical scan range	48 - 120 Hz
Horizontal scan range	15 - 120 kHz
Projection technology	LCD
Contrast ratio (typical)	4000:1
Projector native resolution	XGA (1024x768)
Resolution	2359296 pixels
Aspect ratio	4:3
RS-232 ports	1
Dimensions (WxDxH)	530 x 269 x 756 mm
Lamp power	330 W
Light source type	Lamp
Service life of light source (economic mode)	3000 h
Serial interface type	RS-232
Power consumption (economy mode)	770 W

Weight and Dimensions

Weight	27578 g
