Sanyo PLC-XK2600 Service Manual

-14-
Mechanical Disassembly
AV Panel
1. Remove 4 screws A (M3x8) and 2 screws B(M4x6) to remove the Lamp back shield and
the Right shield.
2. Remove 2 screws C (T3x8) and 1 screw D(M4x6) to remove the Main Board.
3. Remove 1 screw E(M2x4) and 1 screw F(T3x6), and release hooks to remove the AV Panel.
4. Remove 2 screws G(M2.5x6) to remove the Audio Jack board.
5. Remove 2 screws H(T3x8) to remove the Audio AMP board.
6. Remove 3 screws J(T3x12) to remove the Speaker box.
Remove 2 screws K(T3x8) to remove the Speaker(SP901).

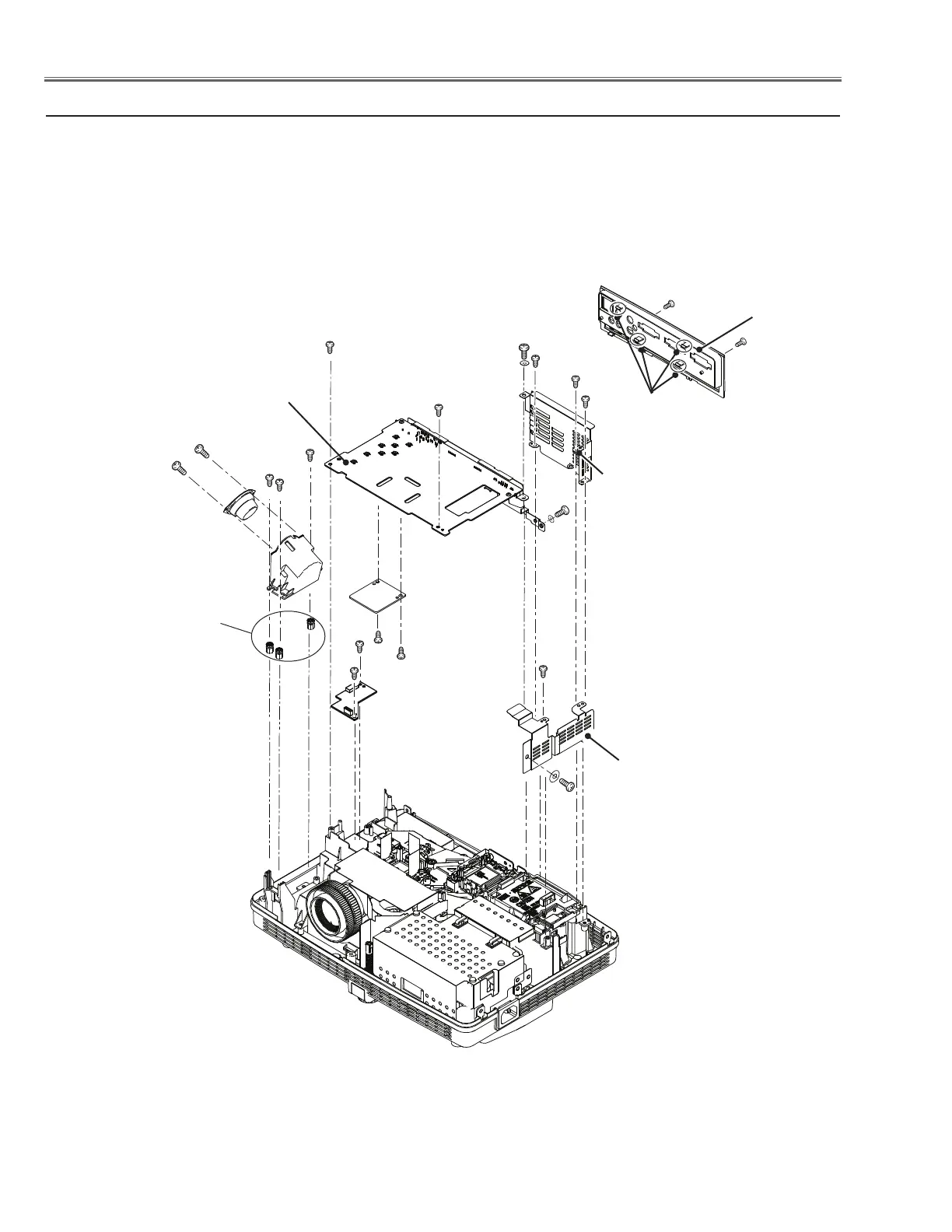

Fig.2
x Main Board, AV Panel, Audio Jack, Audio AMP and Speaker (SP901) removal
C (T3x8)x2
C
Main Board
F (T3x6)
Hooks
B (M4x6)x2
Speaker (SP901)
B
A (M3x8)x4
A
A
A
Lamp back
shield
Right shield
Audio Jack
G (M2.5x6)x2
G
Audio AMP
H (T3x8)x2
H
J (T3x12)x3
J
J
K
K (T3x8)x2
D (M4x6)x2
E (M2x4)
Speaker box
Bushes
