Sanyo PLC-XK2600 Service Manual

-22-
Optical Parts Disassembly
There are 2 types of LCD Panel/Prism Ass'y for this model. Either L-Type or R-Type LCD Panel/Prism Ass'y is used on
the projector. Check which type of LCD Panel/Prism Ass'y is used with the figure below.
When replacing the LCD Panel/Prism Ass'y, you need to take "Panel Type Check and Setting" on the Electrical Adjust-
ment for the replaced LCD Panel/Prism Ass'y.
The gamma-characteristics is different between L-Type and R-Type LCD Panel/Prism Ass'y.

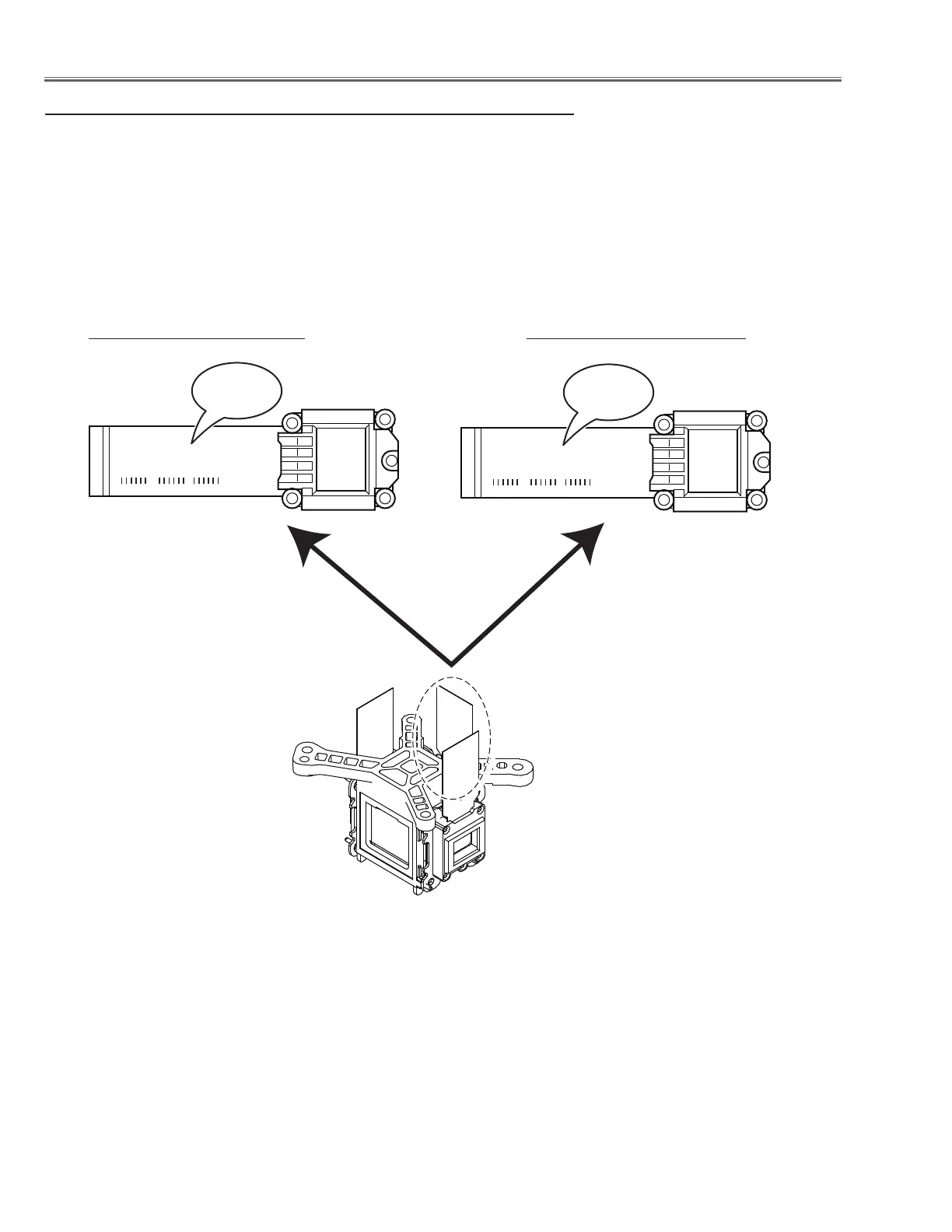

How to check the type of LCD
Panel/Prism Ass'y
Check the printed number on the flat cable of the G-LCD Panel.
Panel Type Check
L-Type LCD Panel/Prism Ass'y R-Type LCD Panel/Prism Ass'y
L3P05X-92G01
1-B-1234A1
-92Gxx
L3P05X-91G01
1-B-1234A1
-91Gxx
G-LCD PANEL
Fig.6-2
