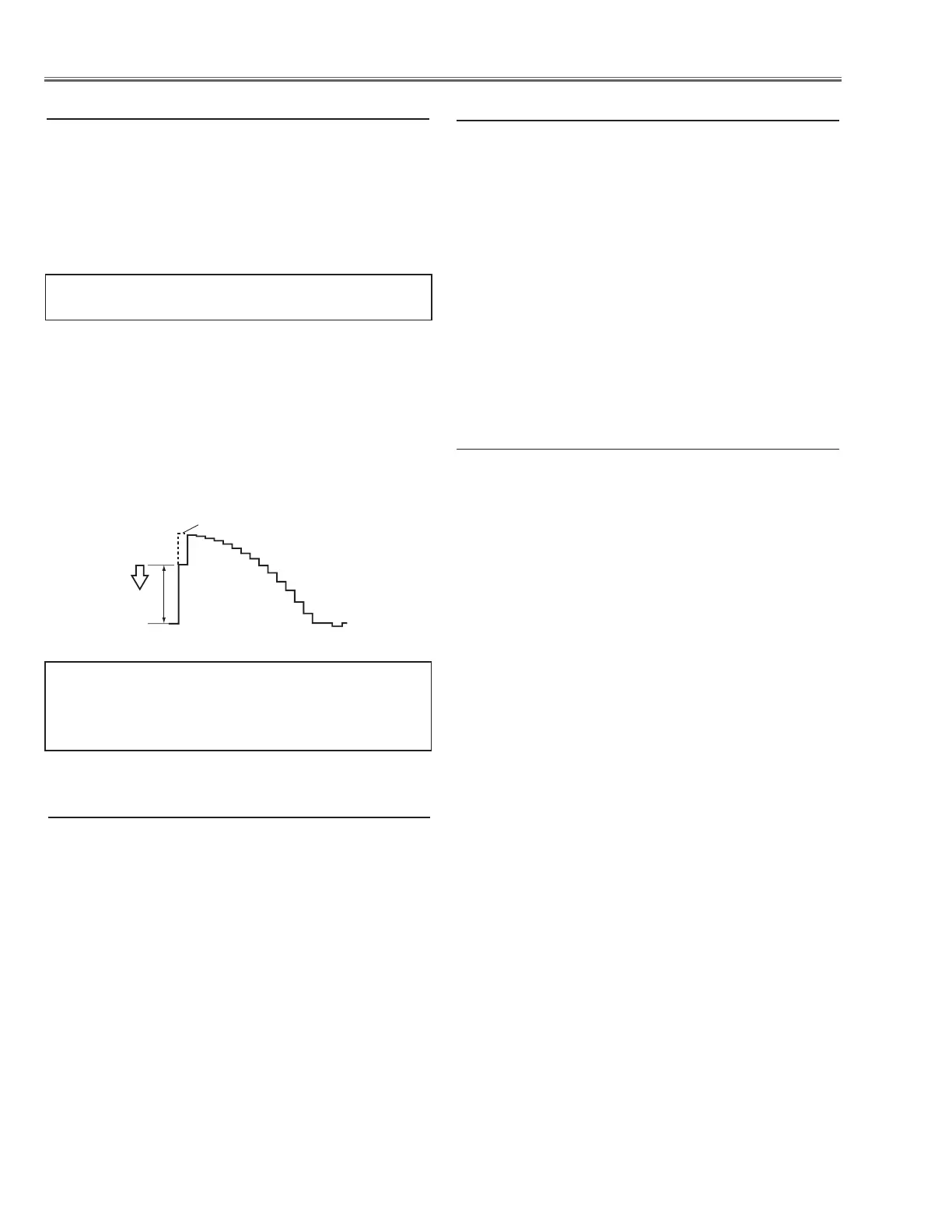

-34-
Electrical Adjustments
1. Enter the service mode.
2. Receive the 16-step grey scale composite video sig-
nal with Video mode.
3. To start the auto-calibration for Component adjust-
ment, select Group No. 260, Item No. 0” and then
change data value from 0” to 1. After the auto-cali-
bration completed, "OK" will appear on the screen.
5. Auto Calibration adjustment [Video]
Gain adjustment [Video]
1. Enter the service mode.
2. Receive the 16-step grey scale composite video signal
with Video mode.
3. Connect an oscilloscope to test point TP35G (+)
and chassis ground (-).
4. Select Group No. 20, Item No. 0 and adjust the
amplitude a to be minimum by changing the Data
value.
(a)
White Level
below adjustment is performed when the above auto
calibration is failed.
1. Enter the service mode.
2. Receive the 50%-Whole Gray computer signal with
Computer1 [RGB] mode.
3. Select Group No. 100, Item No. 92 and change
data value to 2 to reduce the panel frequency.
4. Project only green light component to the screen.
5. Select Group No. 101, Item No. 1 and change
data value to obtain the minimum flicker on the
screen.
6. Project only red light component to the screen.
7. Select Item No. 0 and change data value to obtain
the minimum flicker on the screen.
8. Project only blue light component to the screen.
9. Select Item No. 2 and change data value to obtain
the minimum flicker on the screen.
10. Select Group No. 100, Item No. 92 and change
data value to 0 to reset the panel frequency.
6. Common Center adjustment
1. Enter the service mode,
2. Receive the 16-step gray scale computer signal with
Computer1 [RGB] mode.
3. Select Group No. 100Item No. 7(Red) or 8
(Blue), and change Data values respectively to make
a proper white balance.
8. White Balance adjustment [PC]
Equipment Luminance meter
Input mode Computer 1 (RGB)
Input signal 100%-white and 50%-gray computer
signal
1. Enter the service mode.
2. Input the 100%-white computer signal and measure
luminance on the screen with the luminance meter.
It is
A
for the reading of luminance meter.
3. Change the signal source to the 50%-white
computer signal.
4. Select Group No.
100
, Item No.
6
” and change
the Data value to make the reading of luminance
meter to be
A x 22%.
7. 50% White adjustment [PC]
Adjustments item no. [3] to [5] are carried out at the
spare parts shipment in the factory, therefore they
are not required when the main board is replaced
with new one.
