-72-
KR8-XK220000, KS8-XK260000

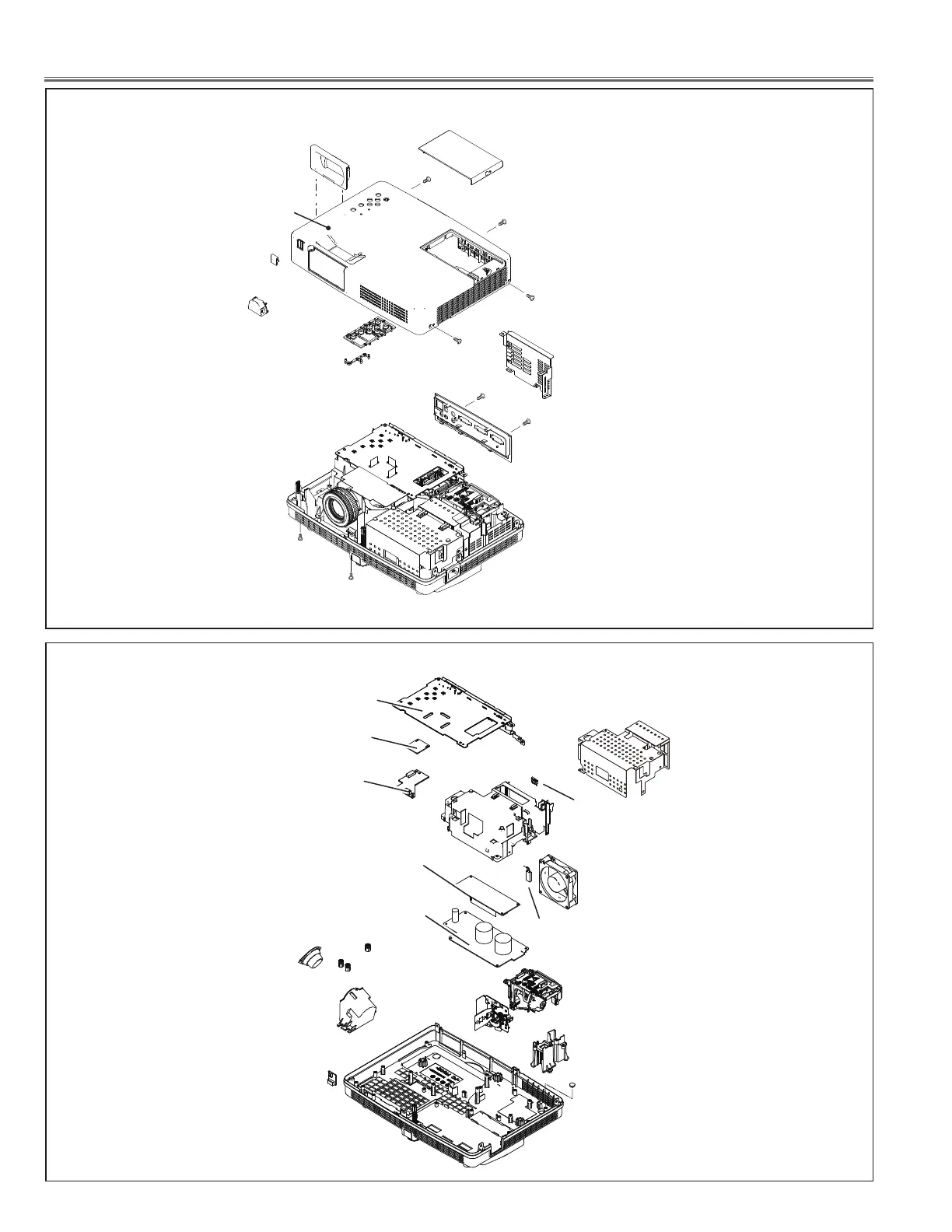

Parts Location Diagrams
Cabinet top assembly
Cabinet bottom-1 assembly
A1000
MAIN BOARD
A2300
R/C BOARD
C10
C04
S02
C12
M02
C05
S01
C03
A901
BALLAST BOARD
A2200
POWER BOARD
FN002
M01
LP900
Lamp Ass'y
S01
S01
S01
S06
S02
C08
C07
C06
A4000
AUDIO JACK BOARD
SP901
Speaker
SW902
Lamp Cover SW
SW601
Thermal Switch
C09
M08
M12
M13
A3000
AMP BOARD
(AUDIO AMP)
M15
M14
S07
