-20-

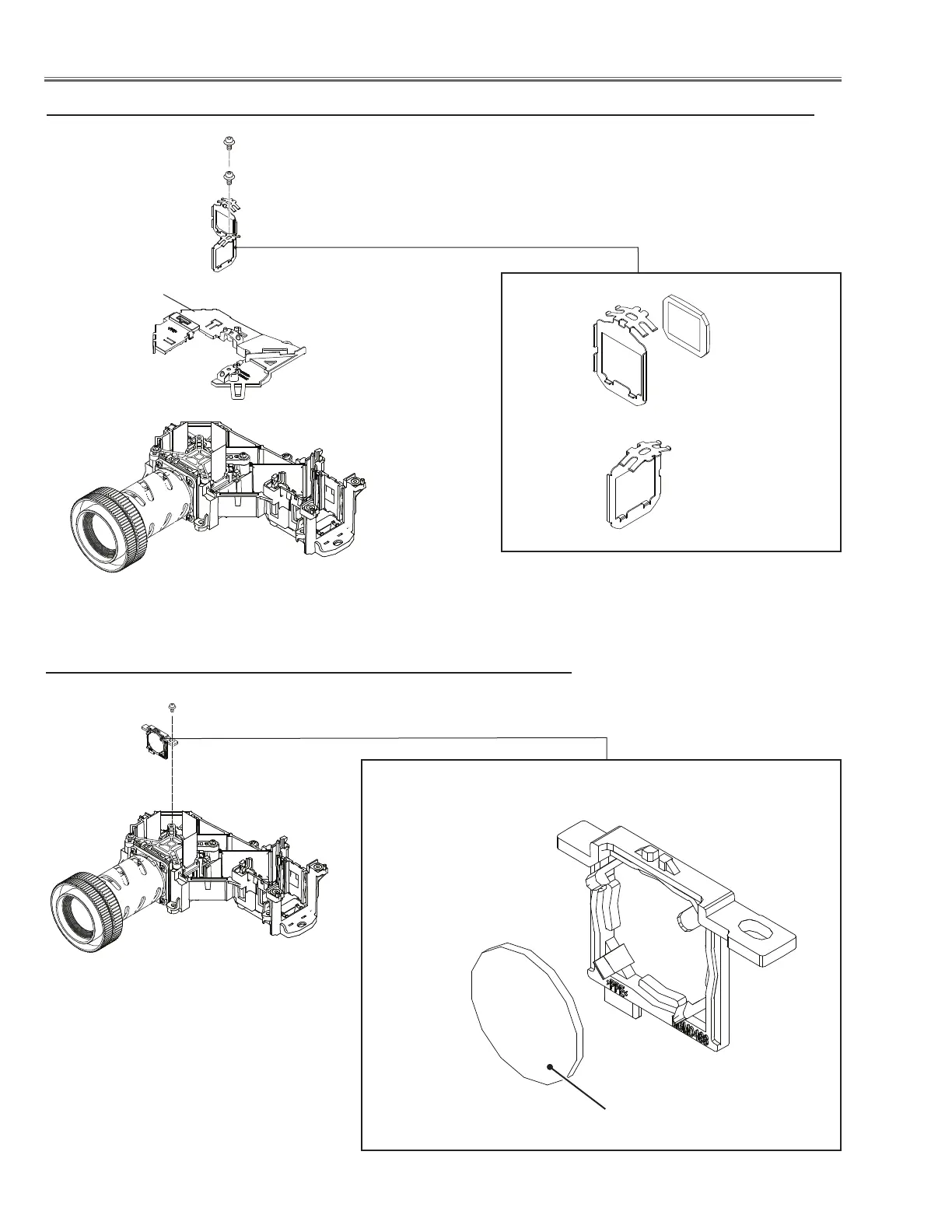

Optical Parts Disassembly
b Relay Out lens disassembly
Relay Out lens
Relay lens Ass'y
Fig.5
M(2.5x6)
v Condenser Lens Ass'y disassembly (For KS8-XK260000 )
(M2.5x6)x2
Fig.4
Optical unit top
Condenser Lens (G) Ass'y
Polarized glass (B) Ass'y
*Polarized glass is not re-
moved from the mounting
base.
