-14-
1. Cabinet Top, Front, R/C Board removal
Mechanical disassembly should be made following procedures in numerical or-
der.
Following steps show the basic procedures, therefore unnecessary step may
be ignored.
Caution:
The parts and screws should be placed exactly the same position as the original
otherwise it may cause loss of performance and product safety.
Screws Expression
(Type Diameter x Length) mm
T type M Type
A (T3x10)x5
Cabinet front
Fig.1
B (M2.5x6)x2
Cabinet top
E (T2x6)x2

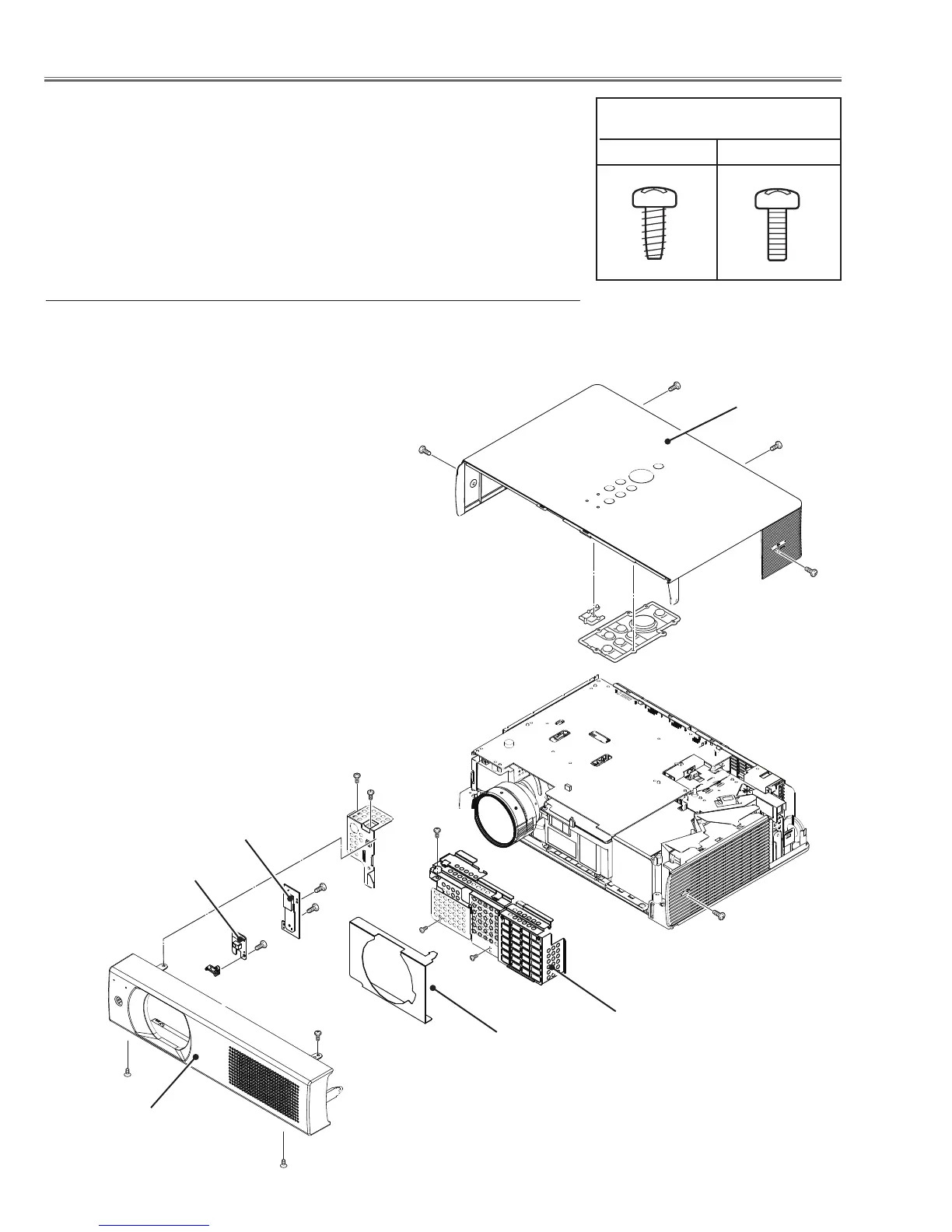

1. Remove 5 screws A(T3x10) to remove the cabinet top.
2. Remove 2 screws B(M2.5x6) and 2 screws C(T3x8) to
the Cabinet front.
3. Remove screw D(M2.5x6), 2 screws E( T2x6) and screw
F(M2.5x6) to remove the Lens spacer sheet and Front
shield.
4. Remove 2 screws G(T2x8) to remove the
Antenna board.
5. Remove screw H(T2x8) to remove the R/C Board.
Control Buttons
C(T3x8)x2
A
A
A
B
A
C
Front shield
Lens spacer sheet
E
Dec Inlay LED
D (M2.5x6)
F (M2.5x6)
Mechanical Disassembly
R/C Board
G (T2x8)x2
H (T2x8)
G
Antenna Board
DEC Inlay LED front
