Sanyo PLC-XU116 Service Manual

-15-

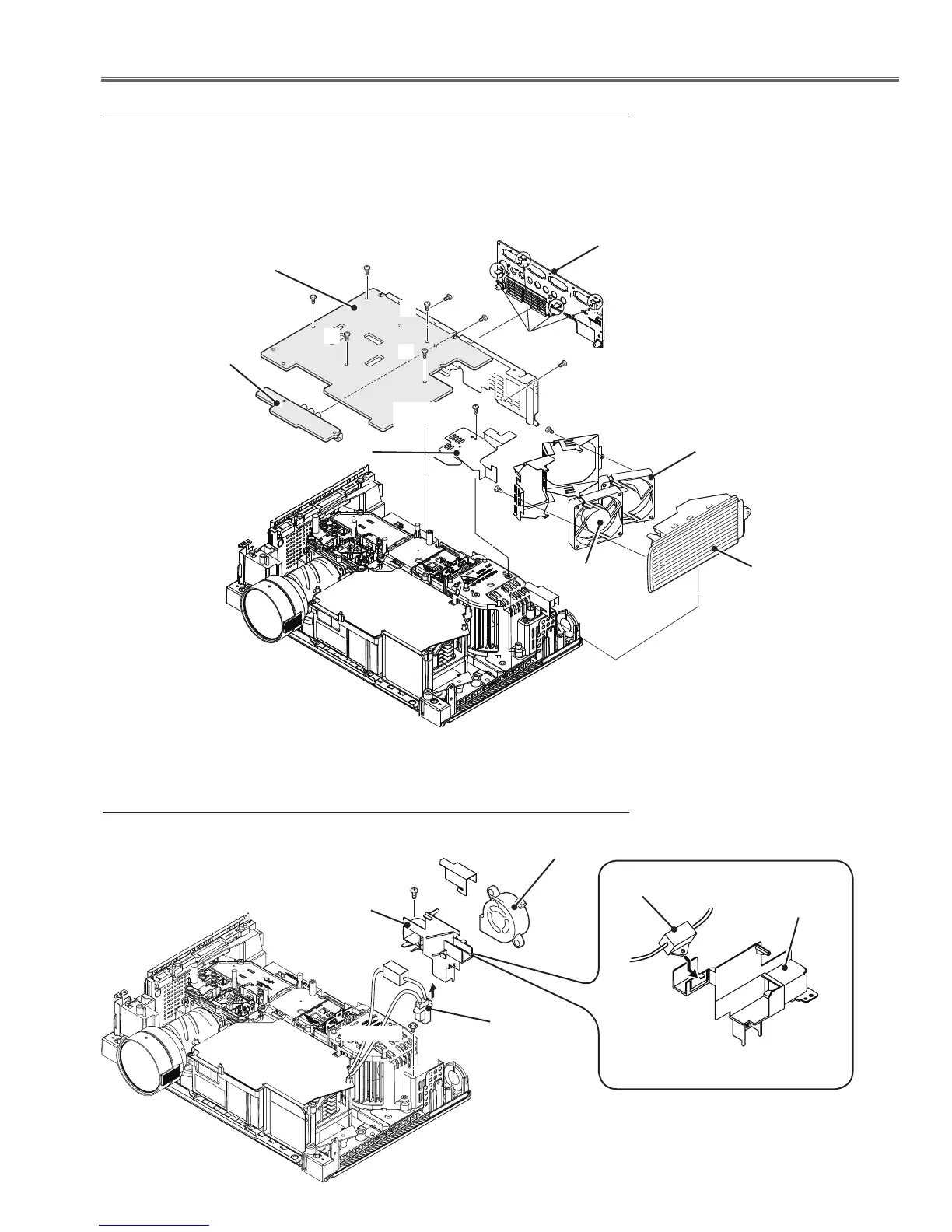

Mechanical Disassembly
2. Main Board, AV Board, Rear Panel and Fans removal
Main board
Rear panel
A (M2.5x6)
Fig.2
AV board
B (M2.5x6)x6
Side grill
D (T3x6)x2
C (T3x6)x2
1. Remove screw A (M2.5x6) to remove the Lamp top shield.
2. Remove 6 screws B(M2.5x6) to remove the Main board.
3. Release 4 hooks to remove the Rear panel and remove 2 screws
C(T3x6) to remove the Rear panel and AV board.
4. Remove 2 screws D(T3x6) to remove fans (FN901, FN902).
FN901
FN902
B (T3x8)
A (M3x8)
FN903
1. Remove screw A(M3x8) to disconnect
the lamp ballast socket.
2. Remove screw B(T3x8) to remove
fan (FN903).
Fig.3
3. Fan (FN903) removal
Trigger
Trigger
Duct
* Trigger should be mounted as the
figure above.
Ballast
socket
B
B
C
D
Lamp top shield
B
Hooks
B
B
