Sanyo PLC-XU116 Service Manual

-22-

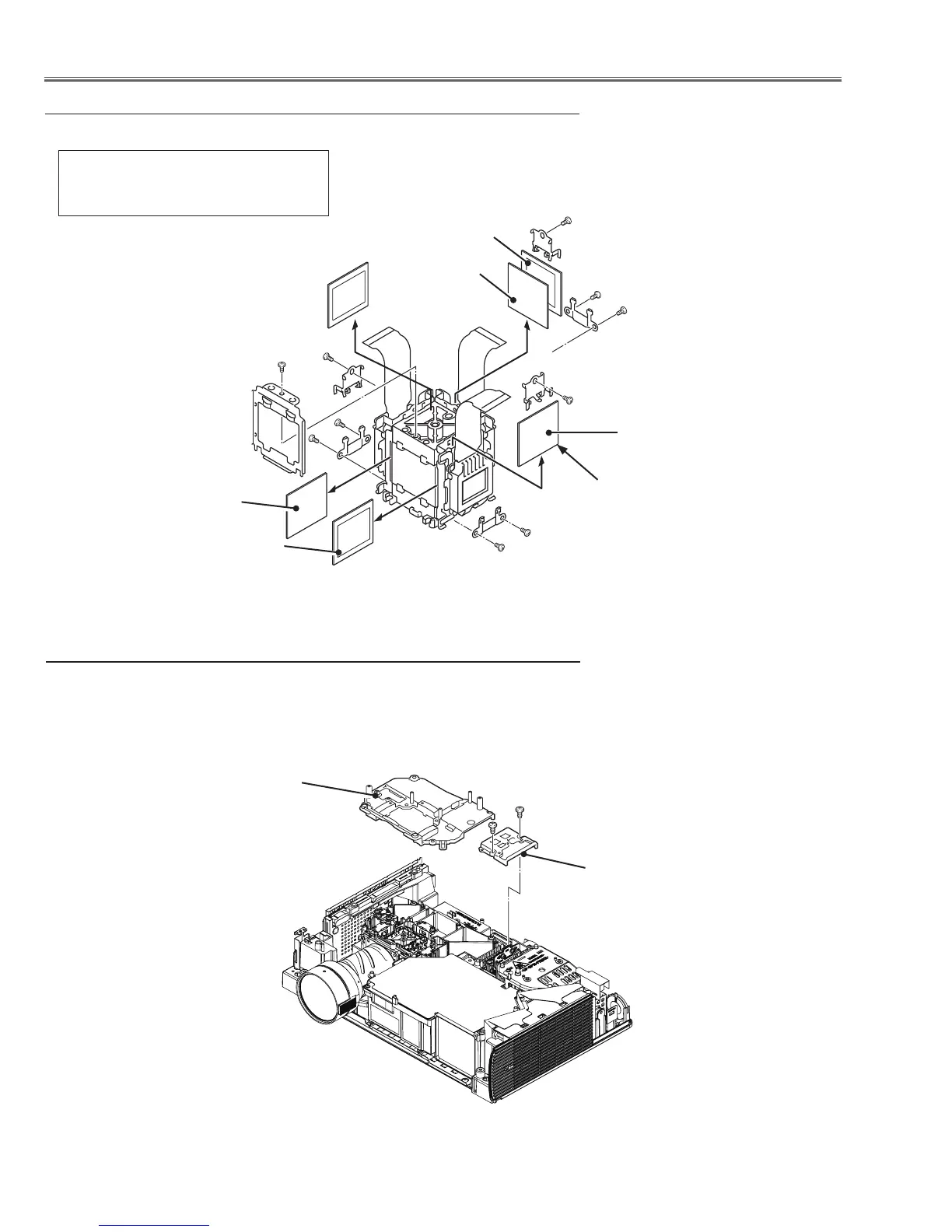

Optical Parts Disassembly
6. Polarized glass, Pre-polarized glass removal
Pre-Polarized Glass(G)
* Mount the polarized glasses as the
film attached side faces the LCD
panel side.
(M2x2)
Film
(Blue)
(Red)
(Green)
Fig.6
7. Optical unit top removal
(M3x8)x2
Pre-Polarized Glass(B)
Fig.7
Polarized Glass(G)
Polarized Glass(R)
Polarized Glass(B)
(M2x2)
Optical top A
Optical top B
1. Remove the Optical top A and Optical Top B.
Pre-Polarized Glass(R)
