Sanyo PLC-XU116 Service Manual

-21-
Optical Parts Disassembly
L3Q08X-85G20
1-A-1234A6
-85G20 -86G20
L3Q08X-86G20
1-A-1234A6
G-LCD PANEL
There are 2 types of LCD Panel/Prism Ass'y for this model. Either L-Type or R-Type LCD Panel/Prism Ass'y is used
on the projector. Check which type of LCD Panel/Prism Ass'y is used with the figure below.
When replacing the LCD Panel/Prism Ass'y, you need to take "Panel Type Check and Setting" on the Electrical Adjust-
ment for the replaced LCD Panel/Prism Ass'y.
The gamma-characteristics is different between L-Type and R-Type LCD Panel/Prism Ass'y.

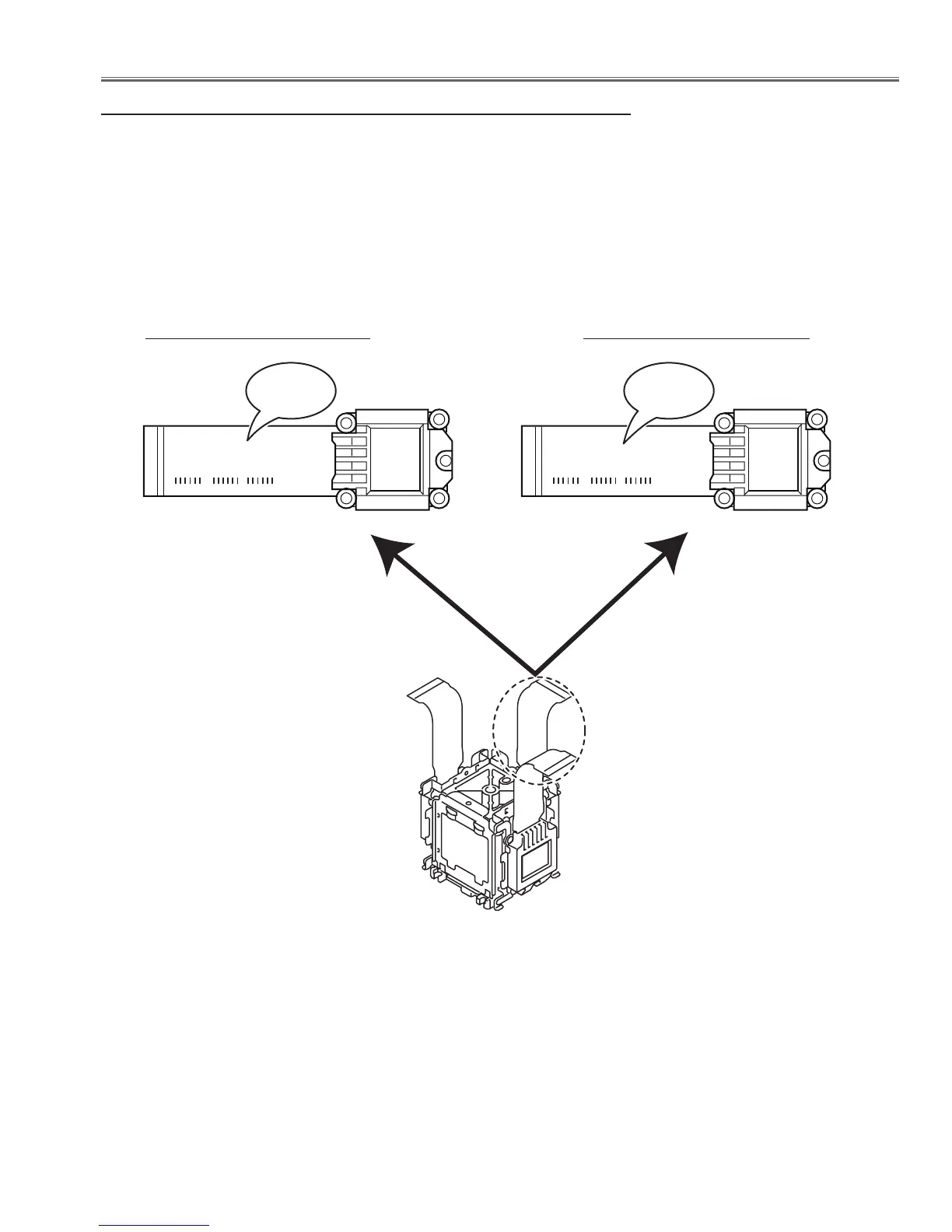

How to check the type of LCD Panel/Prism Ass'y
Check the printed number on the flat cable of the G-LCD Panel.
L-Type LCD Panel/Prism Ass'y R-Type LCD Panel/Prism Ass'y
Fig.5-2
Panel Type Check
