-20-
Optical Parts Disassembly
LCD Panel/
Prism Ass’y

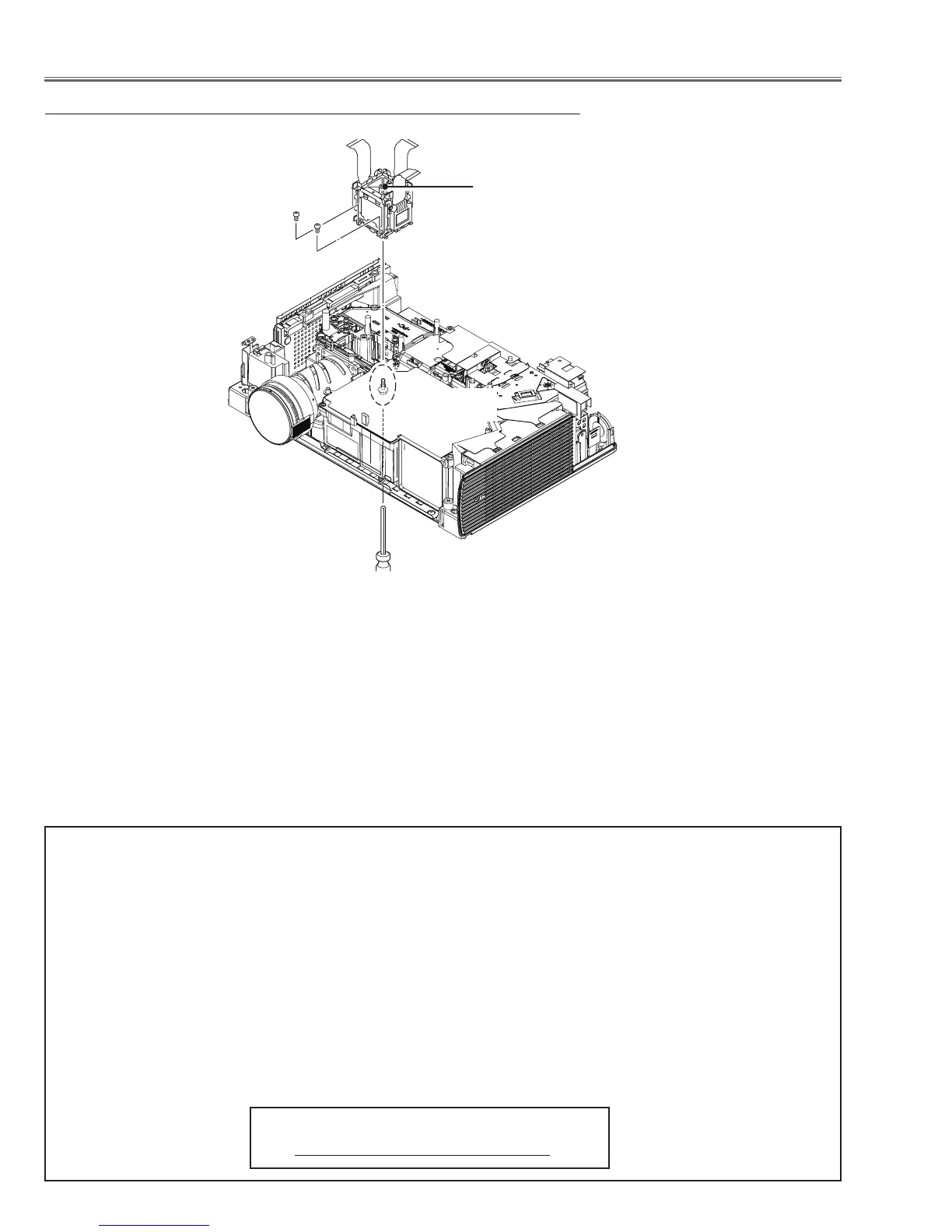

Fig.5-1
5. LCD Panel/Prism Ass’y removal
(M2.5x4)x2
(M3x10)
(Bottom side)
IMPORTANT NOTICE on LCD Panel/Prism Ass'y Replacement
LCD panels used for this model can not be replaced separately. Do not disassemble the LCD Panel/Prism Ass’y.
These LCD panels are installed with precision at the factory. When replacing the LCD panel, should be replaced
whole of the LCD panels and prism ass’y at once.
After replacing LCD Panel/Prism ass’y, please check the following points.
- Check that there is no color shading at the top, bottom, left or right of the screen. If there is, try to remove the
shading following to the chapter “Optical Adjustment”.
- Check the white balance. If it needs the adjustment, adjust the white balance following to the “White Balance ad-
justment” , “Gamma adjustment” and “Common Center adjustment” in the chapter “Electrical Adjustment”.
- Check the white uniformity on the screen.
If you find the color shading at the some part of the screen, it needs to take the color shading adjustment. This
adjustment should be performed by a computer and it also requires a special software “Projector service tool”. The
software will be supplied separately and can be ordered as follows;
PROJECTOR SERVICE TOOL Ver. 4.20
Service Parts No. 610 343 5596
To Next Page
