-19-

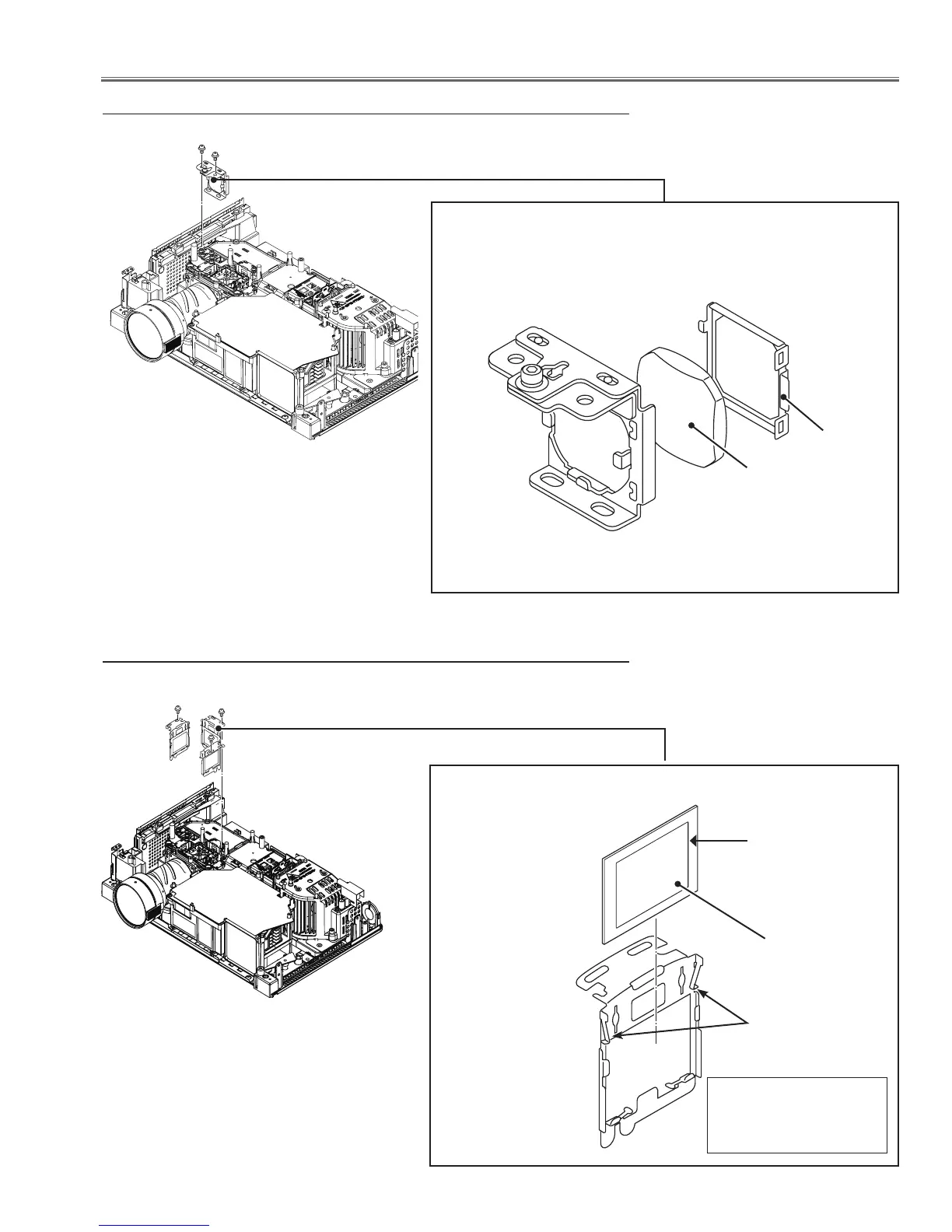

Optical Parts Disassembly
4. Polarized glass-in disassembly
Polarized glass
Polarized glass-in Ass'y
(M2.5x5)x3
Fig.4
Film sheet
3. Relay lens disassembly
Relay lens
Relay lens Ass'y
(M2.5x5)x2
Fig.3
Spring
* Mount the polarized
glass as the film at-
tached side faces the
prism side.
Hooks
