-18-
Optical Parts Disassembly
Before taking this procedure, remove Cabinet Top , Cabinet Front and Main Board following to the “Mechanical Disas-
sembly”.
Disassembly requires a 2.0mm hex wrench.

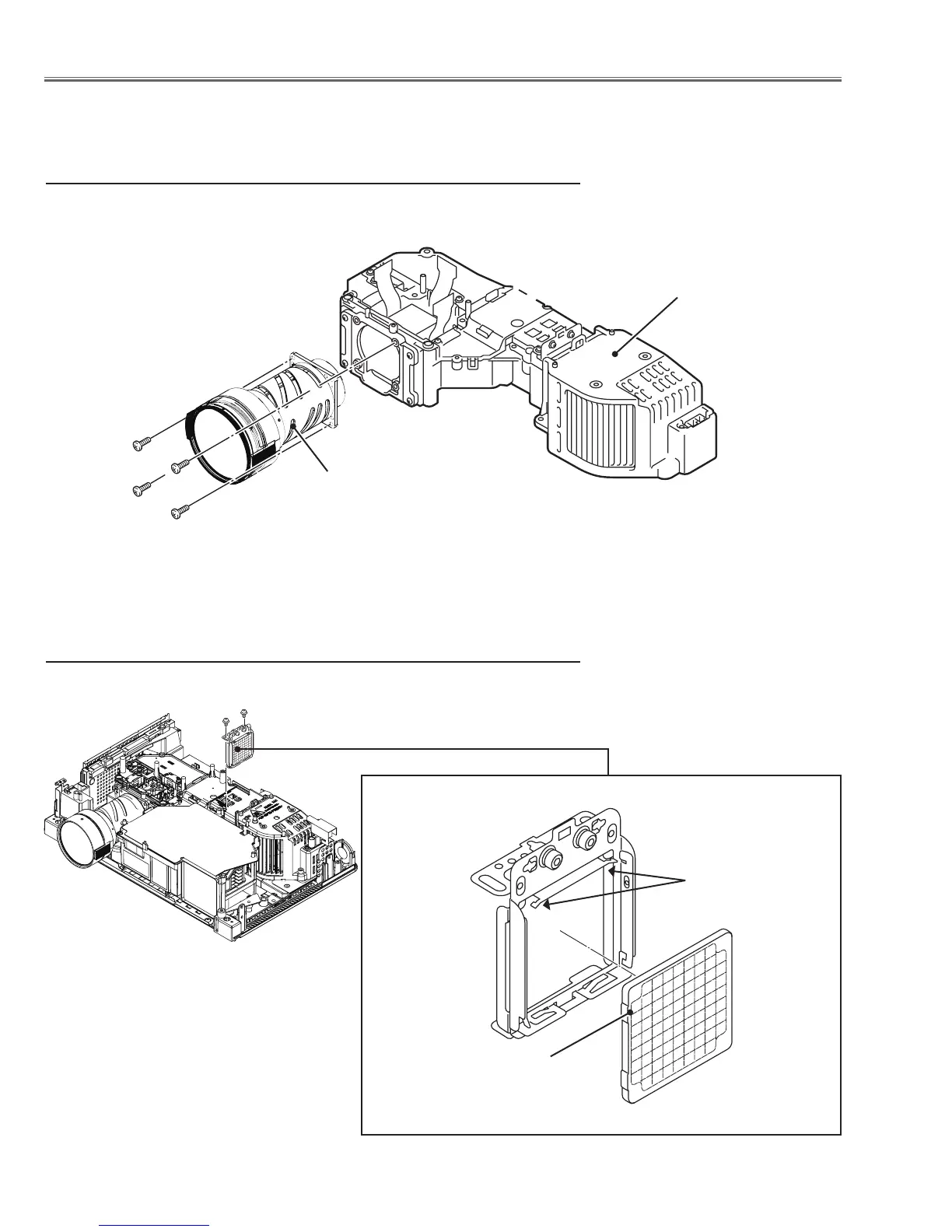

1. Projection lens disassembly
(M2.5x8)x4
Fig.1
2. Integrator lens-in disassembly
Hooks
Integrator lens-in
Integrator Lens-In Ass'y
(M2.5x5)x2
Fig.2
* Rugged surface
(Behind)
Projection lens
Optical unit
Note: The optical unit should be removed from the cabinet bottom before removing the projection lens.
To Next Page
