Sanyo PLC-XU116 Service Manual

-16-
Mechanical Disassembly
4. Optical unit, Network board, TMP board, Filter board, Fans and Speaker removal

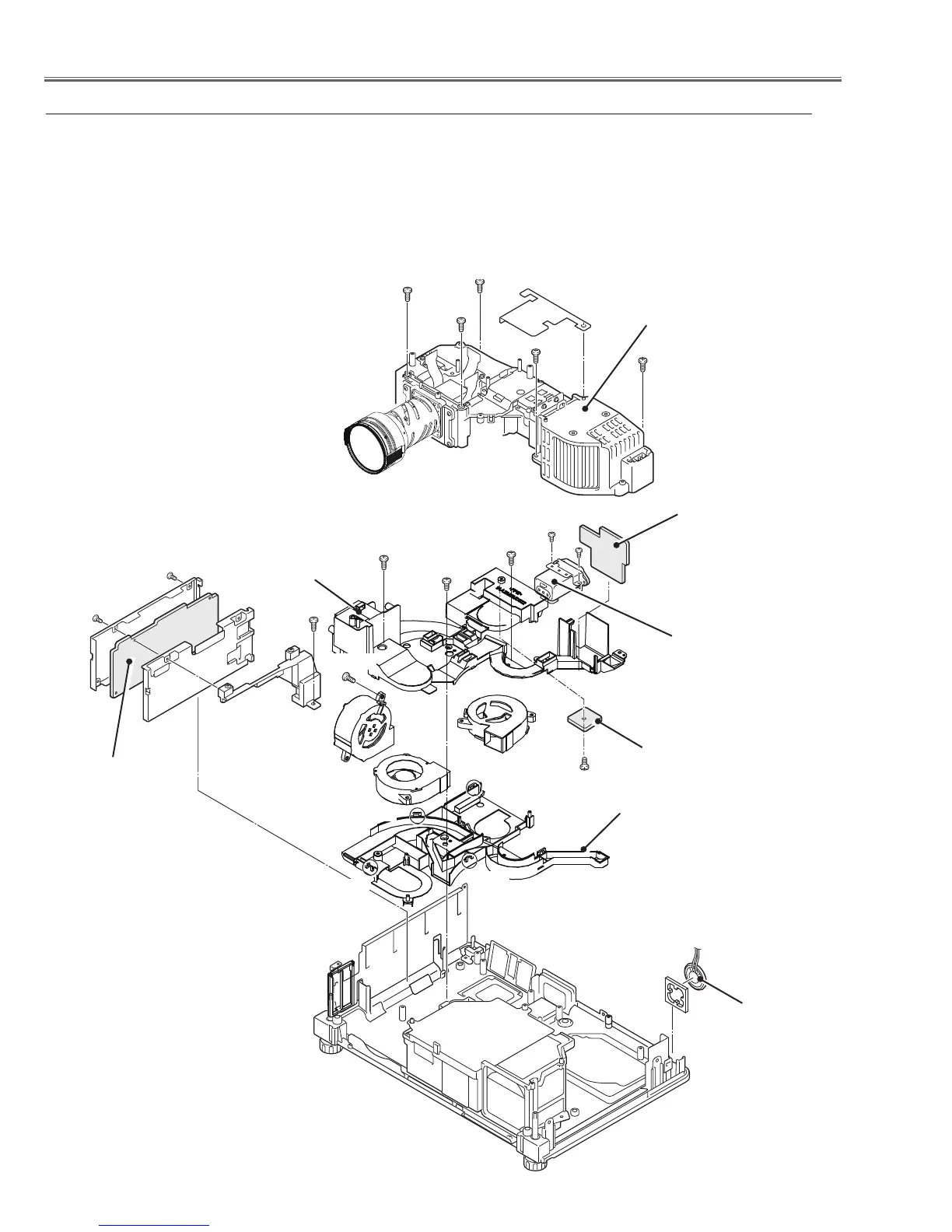

Fig.4
TMP board
SP901
Noise filter
Optical unit
E (T3x6)x2
C (T3x8)
F (T3x6)
Filter board
FN904
FN907
FN905
Duct bottom
1. Remove 5 screws A(T3x8) to remove the the Optical unit.
2. Remove 3 screws B (T3x8) to remove the Network board.
3. Remove 3 screws C (T3x8) and 4 hooks on the duct to remove
the Duct. top and bottom.
4. Remove screw D(T3x8) to remove the fan(FN904).
5. Remove 2 screws E(T3x6) and screw F(T3x6) to remove the filter
board and TMP board.
6. Remove fans (FN905, FN907) and speaker (SP901).
Duct top
A(T3x8)x5
A
A
A
A
E
C
C
Hook
Hook
Hook
Hook
D (T3x8)
B (T3x8)x3
B
B
Network board
