-10-

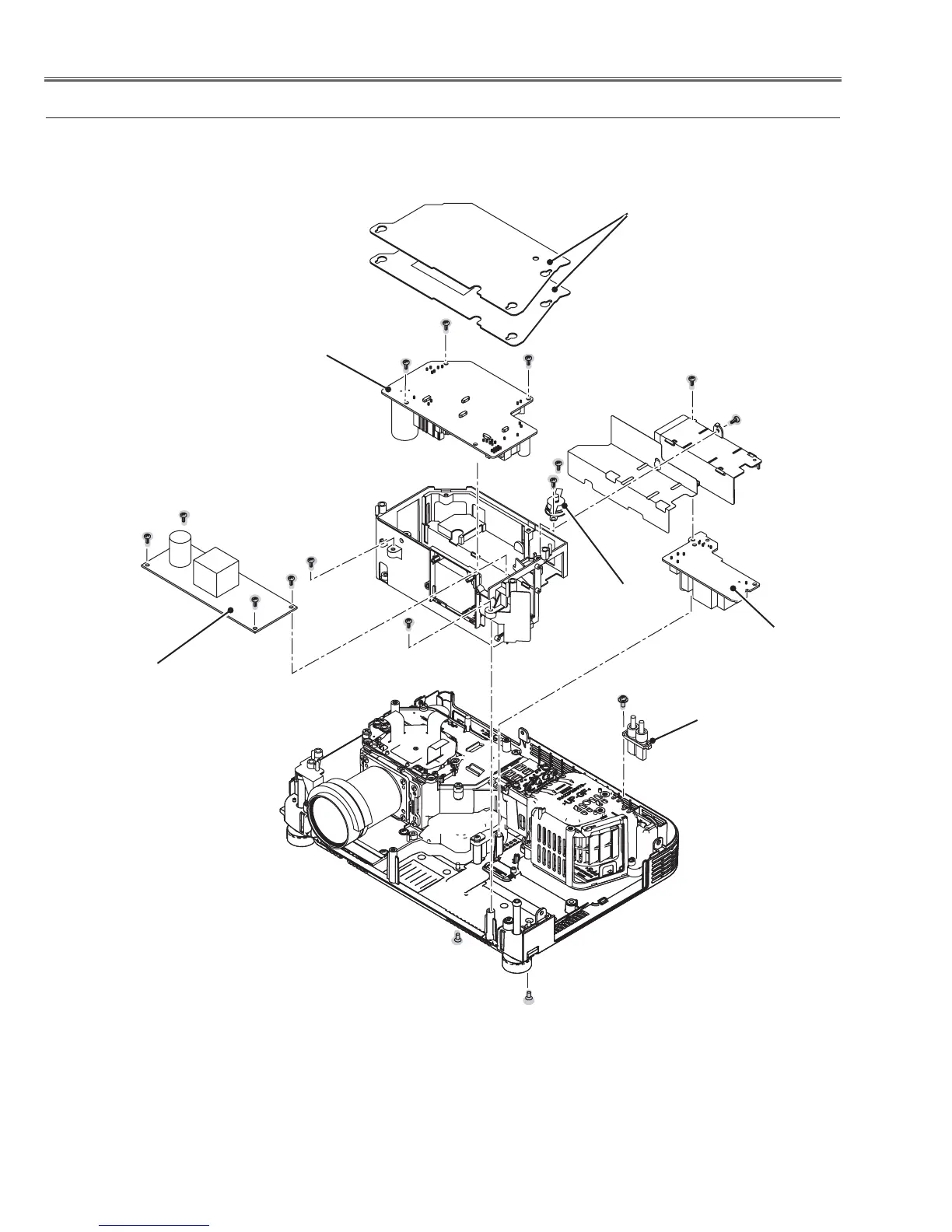

Mechanical Disassembly
Fig.3
c Power, Sub-Power, Line Filter Board, Ballast Board, Thermal Sw(SW902) removal
Power board
Ballast board
Isolation sheet
Ballast socket
Thermal switch
(SW902)
(T3x6)x4
(T3x6)
(T3x6)x2
(T3x6)
(T3x6)x4
Line Filter board
(M3x8)
(T3x6)(Black)
(T3x6)
(T3x6)
(T3x6)(Black)
