-8-
(M3x8)x5

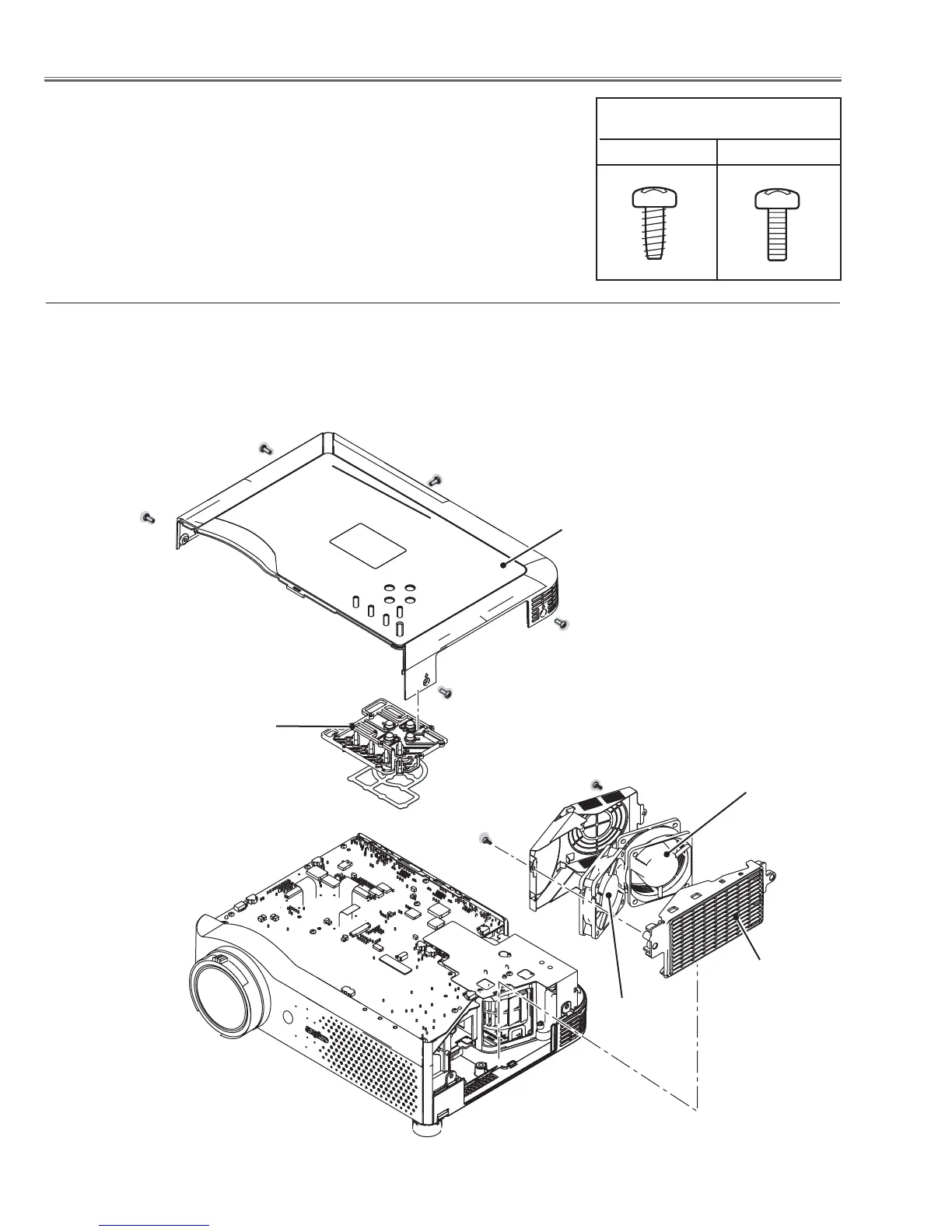

z Cabinet Top & Fans (FN901, FN902) removal
Mechanical Disassembly
Mechanical disassembly should be made following procedures in numerical or-
der.
Following steps show the basic procedures, therefore unnecessary step may
be ignored.
Caution:
The parts and screws should be placed exactly the same position as the original
otherwise it may cause loss of performance and product safety.
Screws Expression
(Type Diameter x Length) mm
T type M Type
Cabinet top
Side grille
FN901
FN902
Control buttons
(T3x6)
Fig.1
(T3x6)
To Next Page
