Sanyo PLC-XU86 - Integrator lens adjustment

-19-
1 Turn the projector on by a state of without FPC cables.
2 Project all of lights on the screen.
3 Adjust the adjustment base of integrator lens assy to make color
uniformity in white.

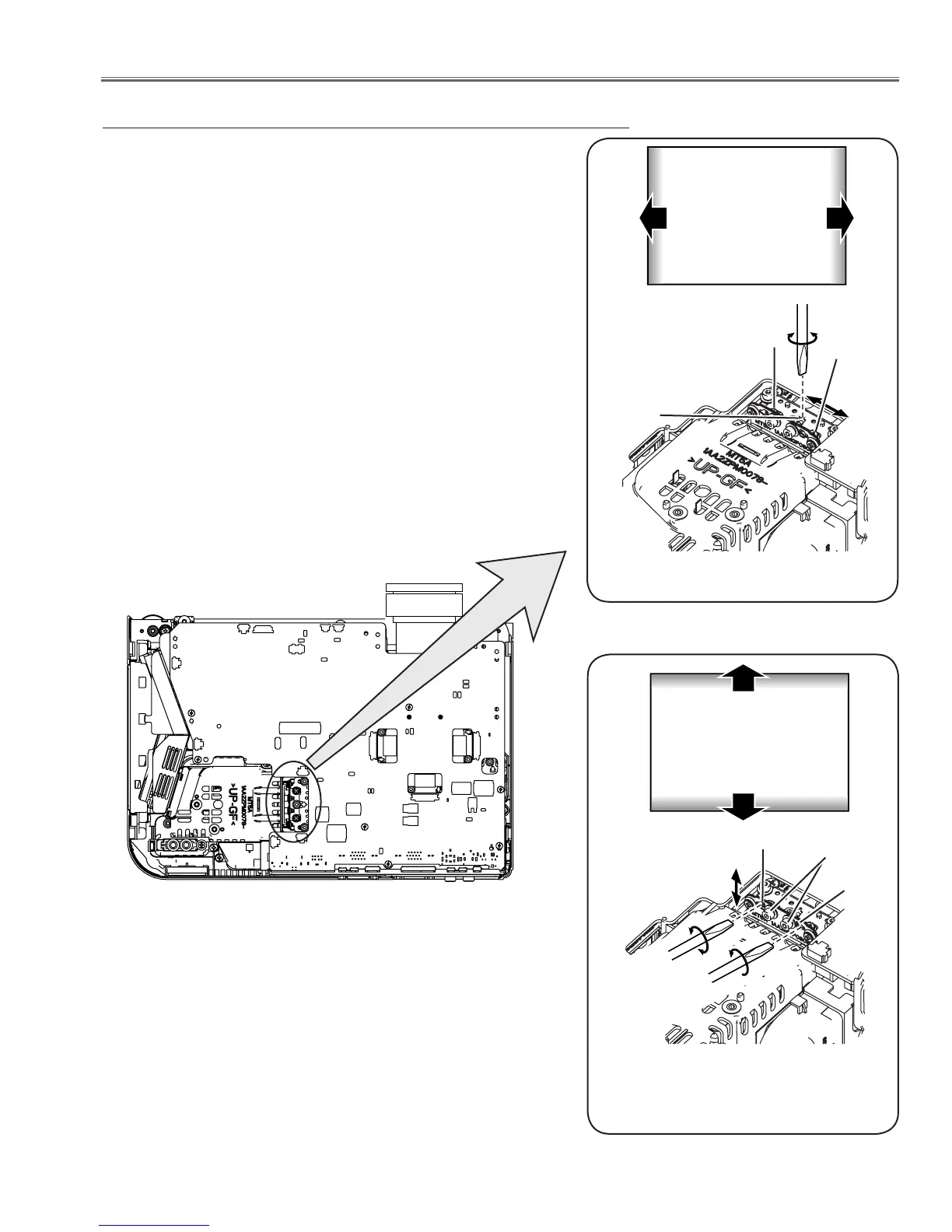

1) If the shading appears on the left or right of the screen as
shown in Fig.2-1, loosen 2 screws A , and adjust the slot B
to make color uniformity in white by using a slot screwdriver.
2) If the shading appears on the top or bottom of the screen as
shown in
Fig.2-2, loosen 2 screws C, and adjust the slots D
to make color uniformity in white by using a slot screwdriver
4 Tighten screws A and C to fix the Integrator lens unit.
Note:
The relay lens adjustment must be carried out after completing this
adjustment.
Optical Adjustments
Integrator lens adjustment
Fig.2-2
Moving of Slot D
Slot D
a
b
Moving of slot B
Fig.2-1
Slot B
A
C
y
x
White
White
A
Slot D
