MY5-XU8600
Electrical Parts List
-56-
-56-

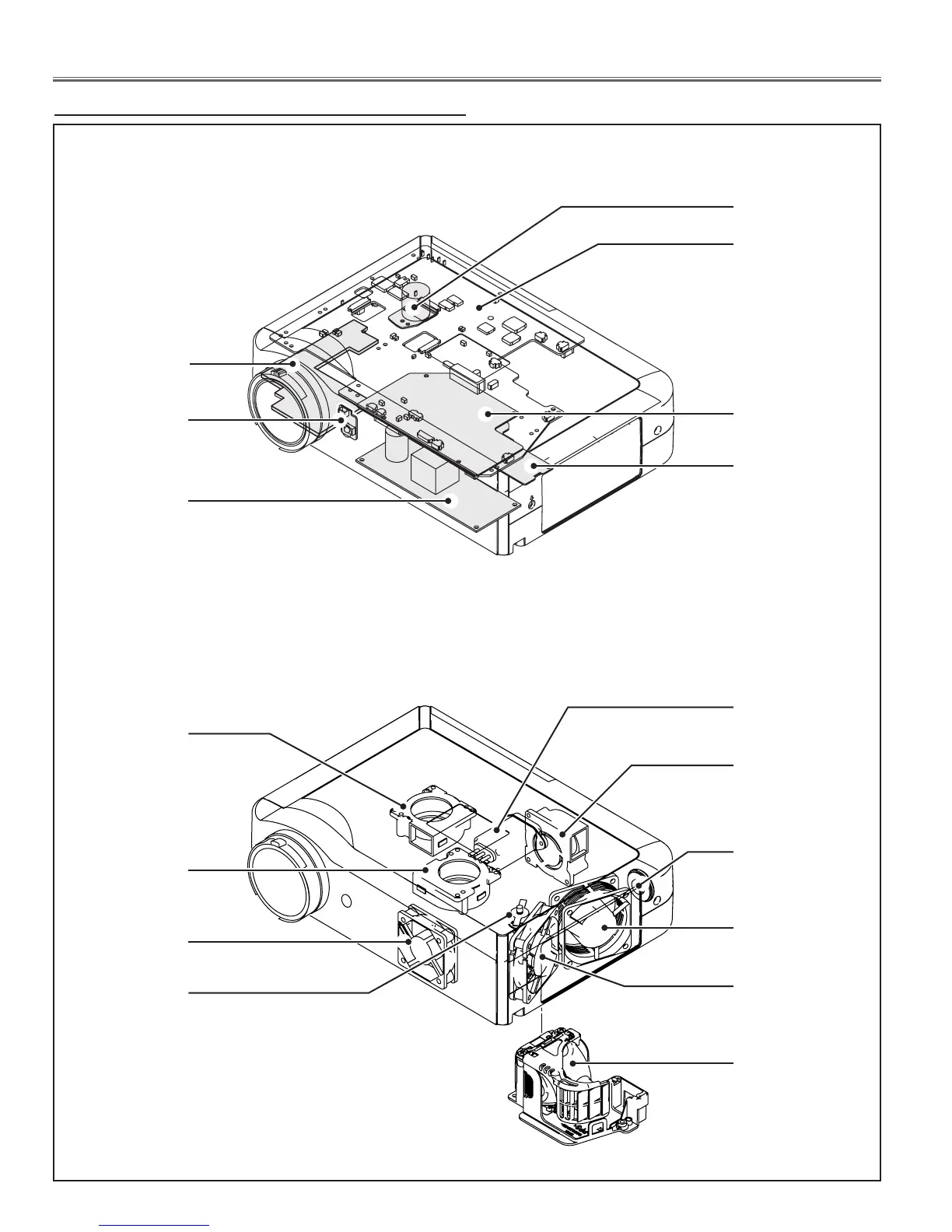

Electrical Parts Location
Assemblied Boards
SW902
Thermal Switch
FN905
Cooling Fan(PBS)
FN904
Cooling Fan(G)
Line Filter Board
Main Board
A901
Ballast Board
SP901
Speaker
MCI Board
FN902 Cooling
Fan(Power)
FN906
Cooling Fan(EX)
FN901
Cooling Fan(Main)
LP900
Lamp Ass’y
LF901
Noise Filter
R/C Board
FN903
Cooling Fan(B)
Sub Power Board
OUT OF CIRCUIT BOARD
Power Board
