7.1.9.5 Encoder clear function
This function is used for clearing the encoder multiple revolution counter or an encoder alarm.
● Encoder clearing procedure

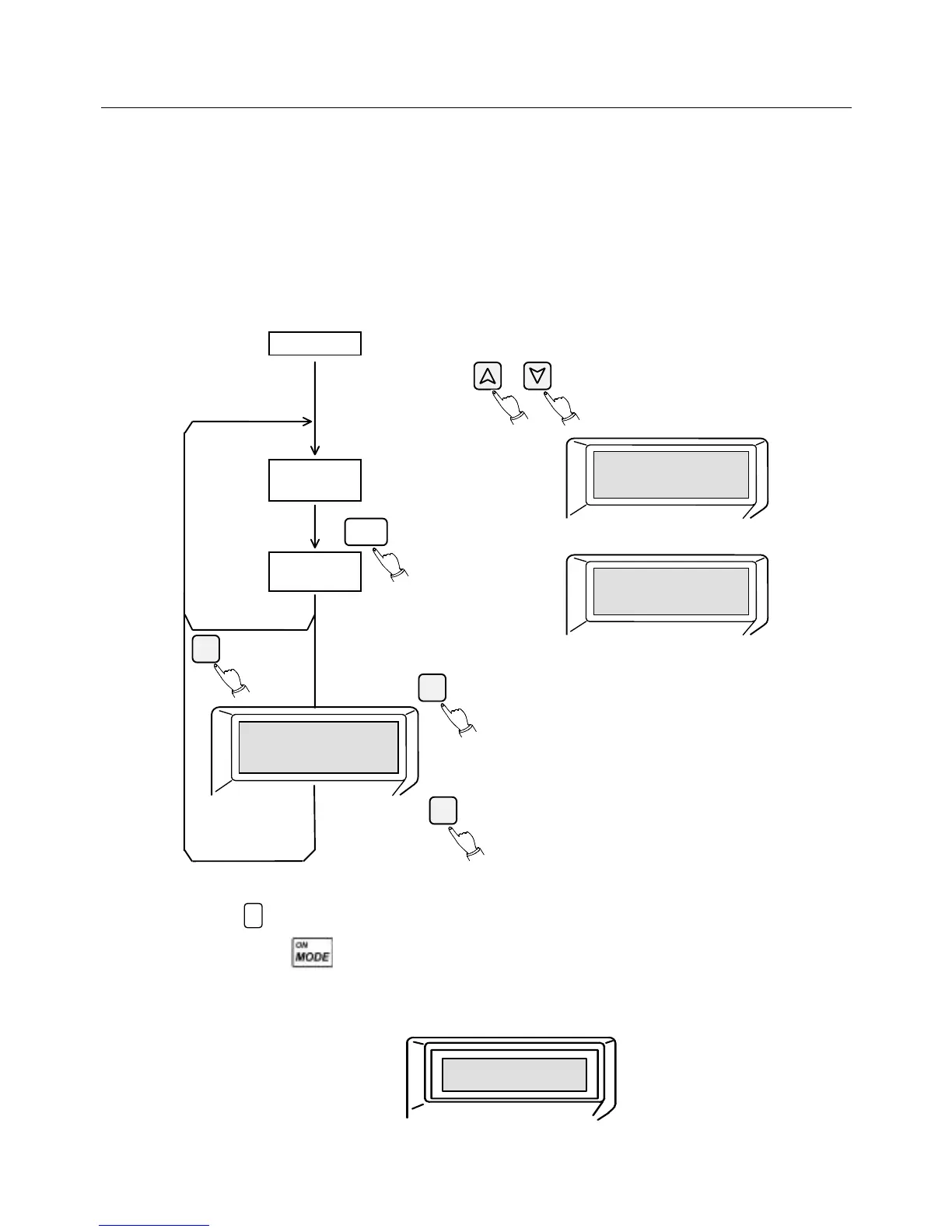

Fig. 7-15 Encoder Clear Operation Procedure
Using the 0 key, return to the set screen from the ready screen, then return to the initial
screen using the key.
When the encoder clear is disabled (when Func6 bit6 = 0), the following message appears on the
screen:
＊
Test 4
ECLR Not Ready
When the encoder clear function is enabled, the ECLR screen appears.
0
Select page 4 using the or key.
: Move to the ECLR ready screen using this key.
* Test 4
ECLR Clear 〔WR〕
*Test 4
ECLR Rdy Y=3,N=0
Test screen
ECLR set
screen
ECLR ready
screen
* Test 4
ECLR Running
0
Cancel
(screen change)
Execute
Hold down the key (press the key for at least 4 seconds to clear the encoder).
Release the key .
WR
3
