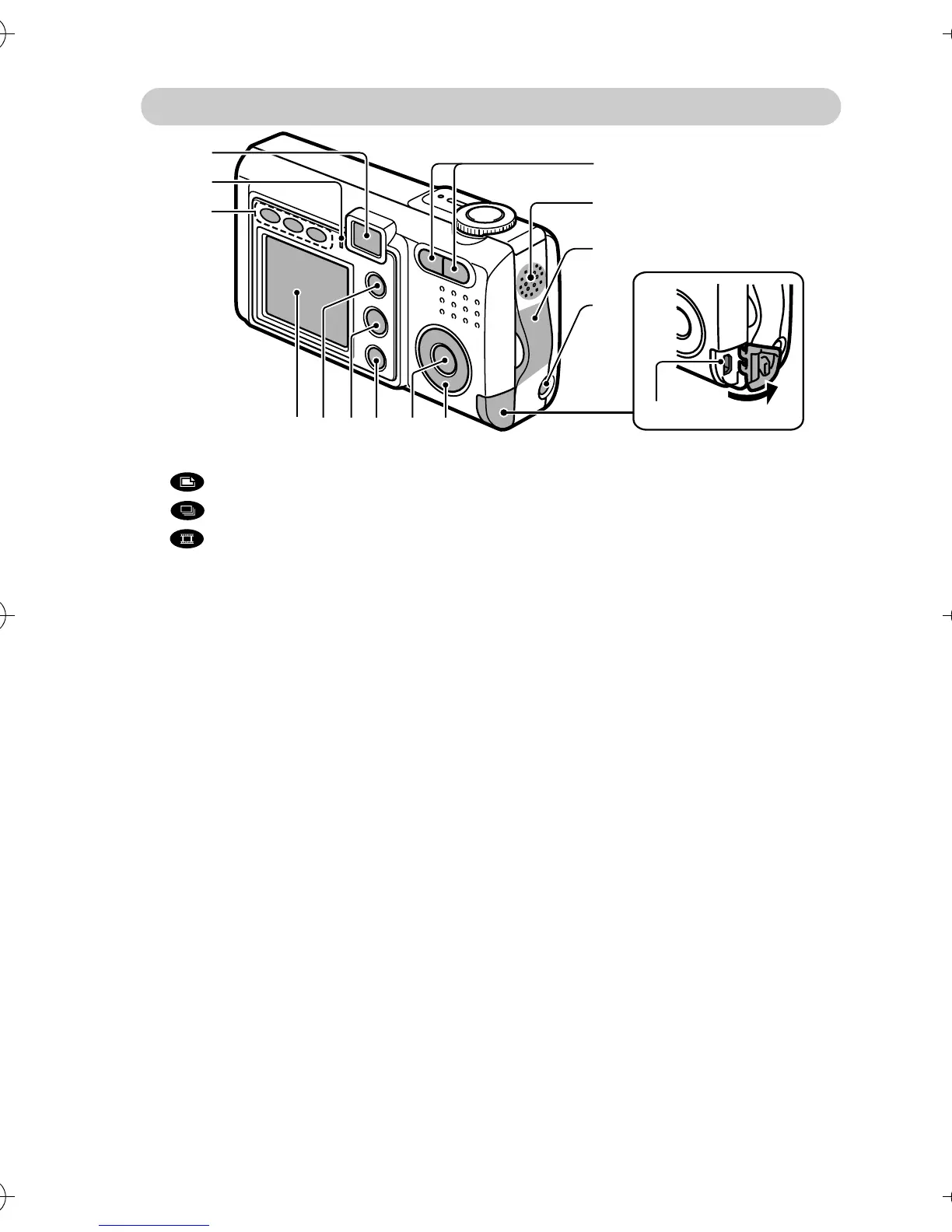

Rear
1 Mode indicator
: Still image mode
: Sequential shots mode
: Video clip mode
2 Accessing indicator
(red/green/orange)
Red flashing:
hWhen charging the flash; when
no card, an unformatted card,
or a locked card is installed
(indicates that image or sound
cannot be recorded); or when
recording using the self-timer
(page 63)
Red steady:
hWhen the card is full (indicates
that image or sound cannot be
recorded), when recording
using the self-timer, or when
the battery power is consumed
Green flashing:
hWhen using the exposure cor-
rection or digital zoom functions
(indicates that image and
sound can be recorded), or
when the power save function
is activated
Green steady:
hWhen images and sound can
be recorded, when connected
to a PC or printer, when print-
ing, or when set to the PC cam-
era mode
Orange steady:
hWhen recording images or
sound
3 Viewfinder
4 Zoom switch
5 Speaker
6 Handstrap holder
7 DC IN (external DC power
input) terminal
hFor connecting a separately
sold AC adapter (model VAR-
G6EX for the VPC-J2EX, model
VAR-G6E for the VPC-J2EX
[for U.K.] and model VAR-G6U
for the VPC-J2)
8 DIGITAL/AV terminal
hUsed as both the USB connec-
tor and AV output terminal.
9 Arrow button
0 SET button
A Flash button
B MENU button
C MODE button
D LCD monitor
4
3
2
5
9
6
7
8
0ABCD
1
