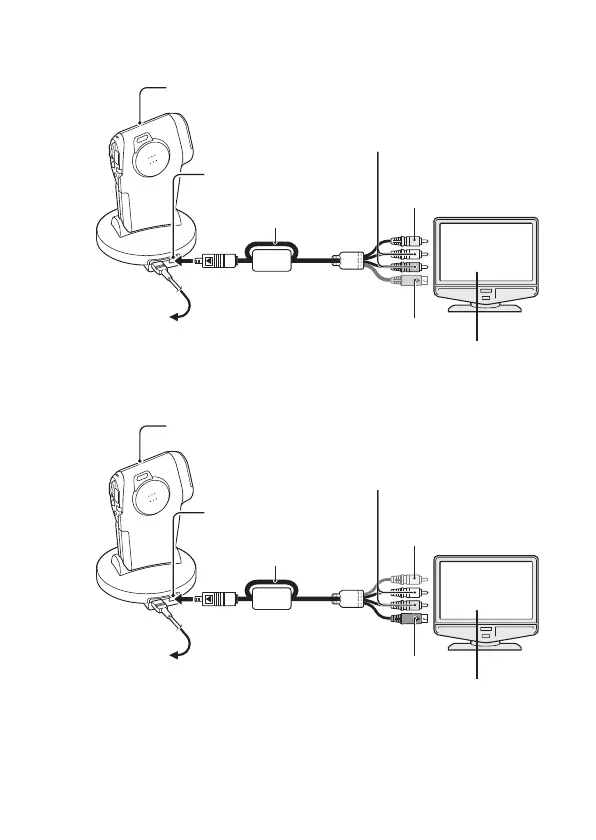

<When connecting to a standard video input terminal>
* When connected, no image appears on the TV monitor.
<When connecting to an S-VIDEO video input terminal>
* When connected, no image appears on the TV monitor.
To AC adaptor/
charger
White plug: To Audio Input (LEFT) terminal
Red plug: To Audio Input (RIGHT) terminal
DIGITAL/AV terminal
Yellow plug:
To Video Input terminal
Set the input to “VIDEO”.
Supplied S-AV
interface cable
The [n] mark on the
plug is facing down.
Not connected*
Set the “VIDEO OUTPUT” setting to “VIDEO” (page 127).
To AC adaptor/
charger
DIGITAL/AV terminal
Yellow plug:
Not connected*
Set the input to “VIDEO”.
Supplied S-AV
interface cable
The [n] mark on the
plug is facing down.
S-terminal
Set the “VIDEO OUTPUT” setting to “S-VIDEO” (page 127).
White plug: To Audio Input (LEFT) terminal
Red plug: To Audio Input (RIGHT) terminal
