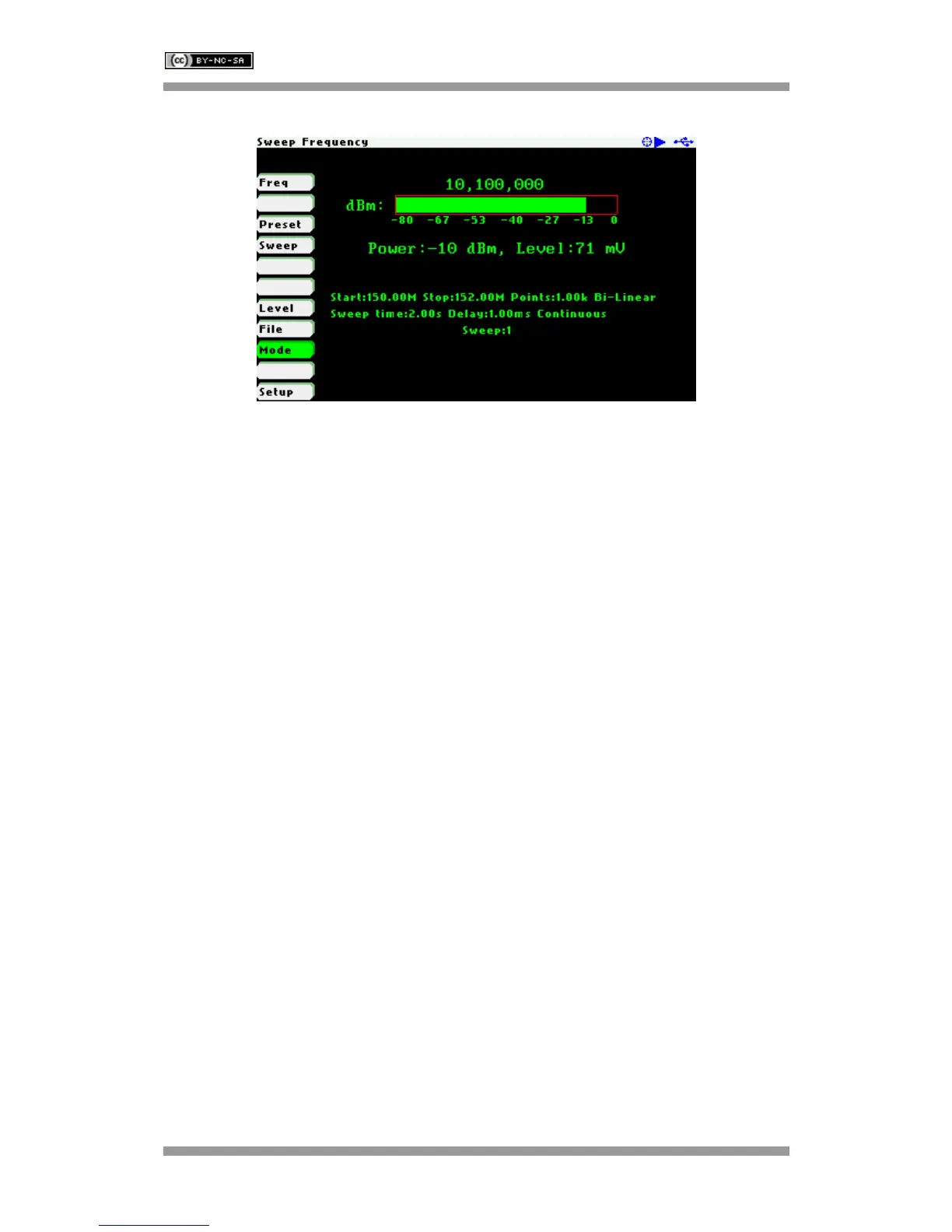

All the sweep parameters are shown on the screen as seen in the screenshot below:
Another useful output power level value for receiver testing is -107dBm, which is 1uV into 50
ohms and equates to S1 on an S-meter. This power level is not available in the SARK-110, but a
34dB attenuator could be made to give -107dBm with a pi network of two 52 ohm resistors as
shunt in and out and a 1.2k + 52 ohm series resistor.
