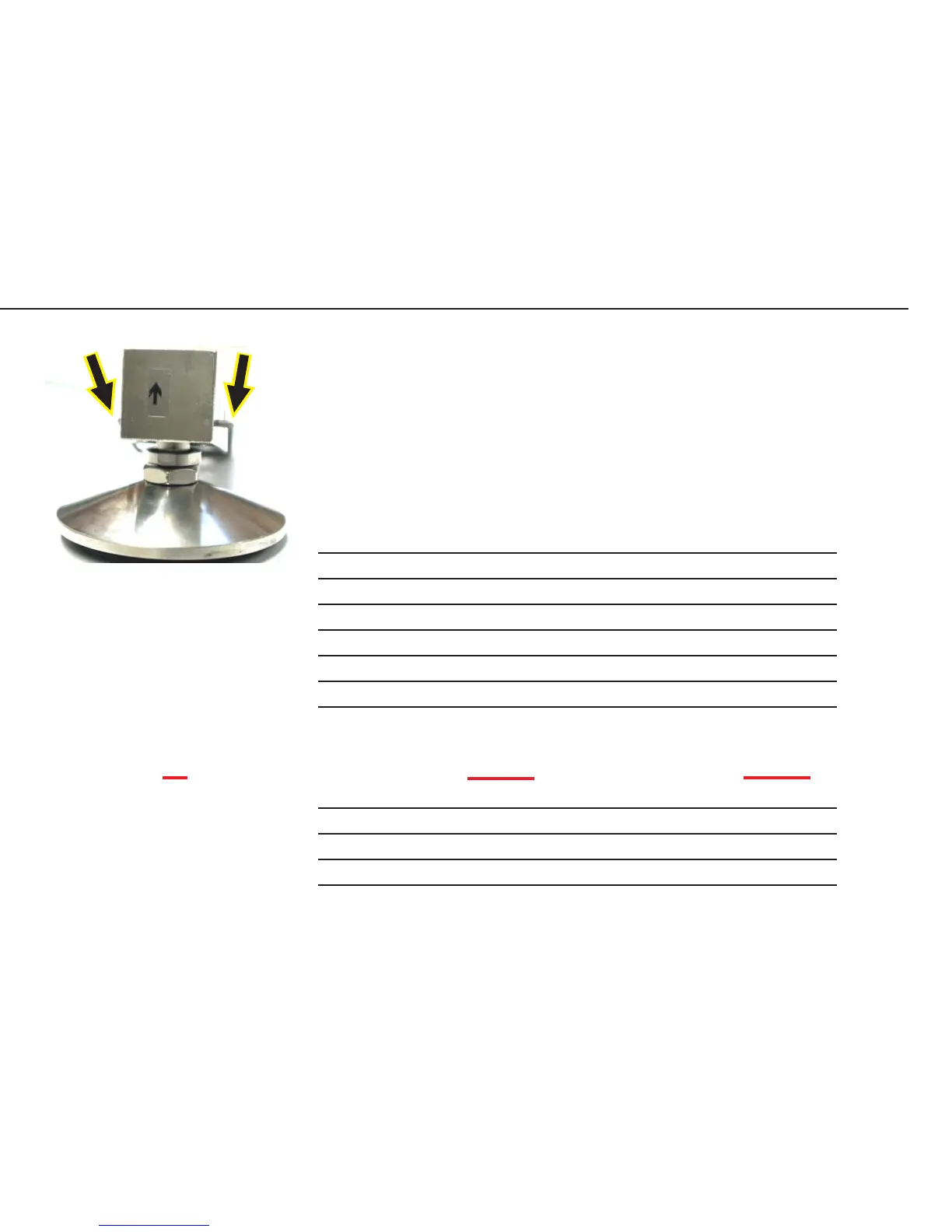

Replacing the Load Cells Foot
– To replace the load cells foot, move the retainer spring to the left hand and right
hand and forth with a screwdriver to push it out.
Color Codes of the Wiring for Weighing Platforms, Models CAPP../CAPS...
Platform size Pin Assignment Chart for the Indicator (see Page 71)
(1)
or Pin Assignment Chart for the Junction Box (see Page 84)
(2)
in inches No.: 1 2 3 4 5 6
12.6 x 9.5
(1)
Blue Green White Red Gray Black
15.8 x 11.8
(1)
Blue Green White Red Gray Black
19.7 x 15.8
(1)
Blue Green White Red Gray Black
24 x 18
(1 or 2)
Blue Green White Red Gray Black
24 x 24
(1 or 2)
Blue Green White Red Gray Black
30 x 24
(1 or 2)
Blue Green White Red Gray Black
30 x 30
(1 or 2)
Blue Green White Red Gray Black
Platform size Pin Assignment Chart for the Junction Box (see Page 84)
in inches No.: 1 2 3 4 5 6
(Wiring Bridge )
36 x 36 Green --- White Red --- Black
48 x 48 Green --- White Red --- Black
60 x 48 Green --- White Red --- Black
60 x 60 Green --- White Red --- Black
