25
Procedure for Off-center Load Adjustment
Proceed as follows to adjust the off-center load using the junction box:

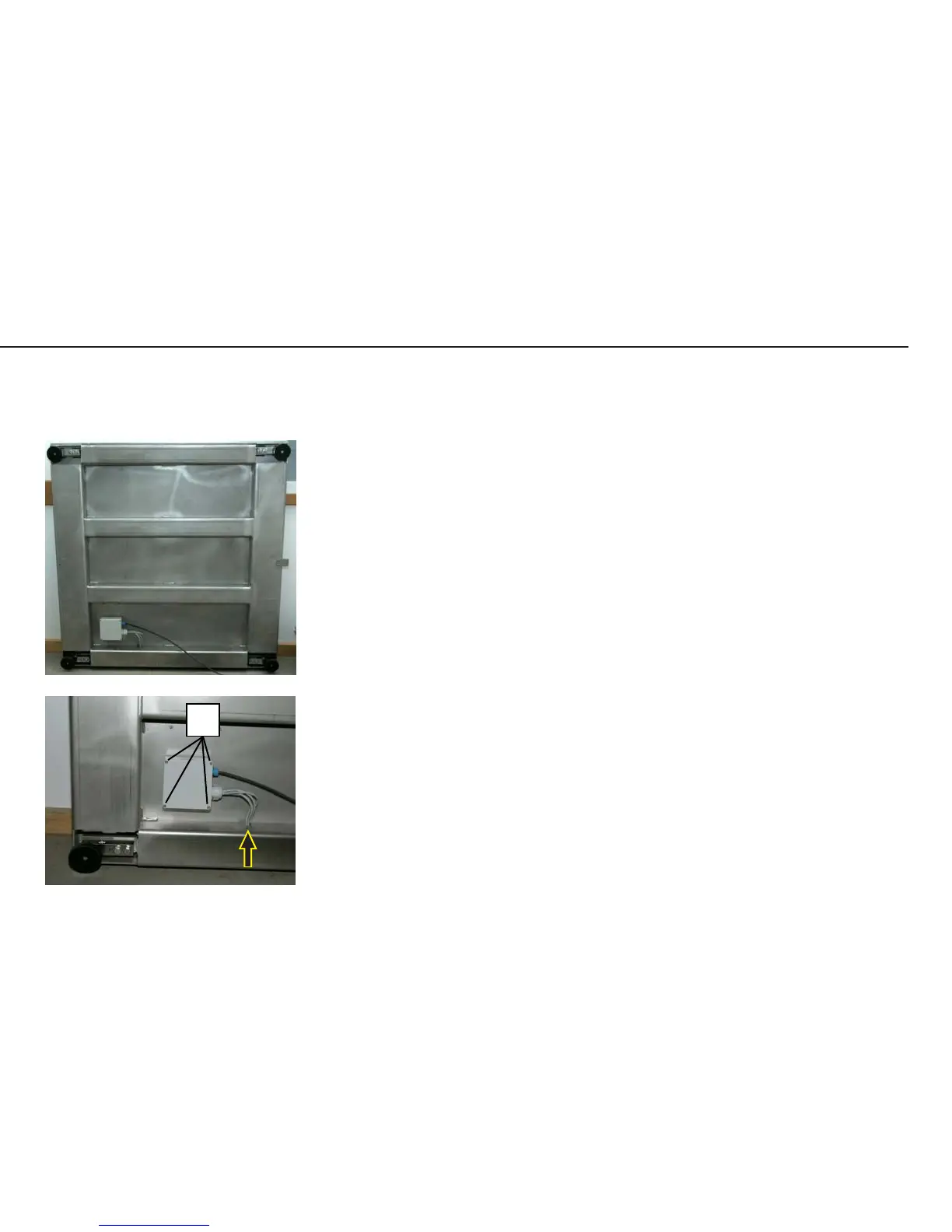

– Stand the weighing platform (with 4 load cells) on its side and secure it in this
position.
– Remove the four screws (S) from the junction box.
– Pull approximately 20 to 30 cm of the load cell cables out of the platform (see
arrow).
– Return the weighing platform to the horizontal and position it next to the
junction box.
– The junction box is now accessible for adjustment of the resistors.
– At the conclusion of off-center load adjustment, follow the instructions above
in reverse order to reassemble the weighing platform.
Important:
Make sure to push the cables back into the weighing platform.
Adjusting the Weighing Platform
S
!
