Setting the Overload Stops

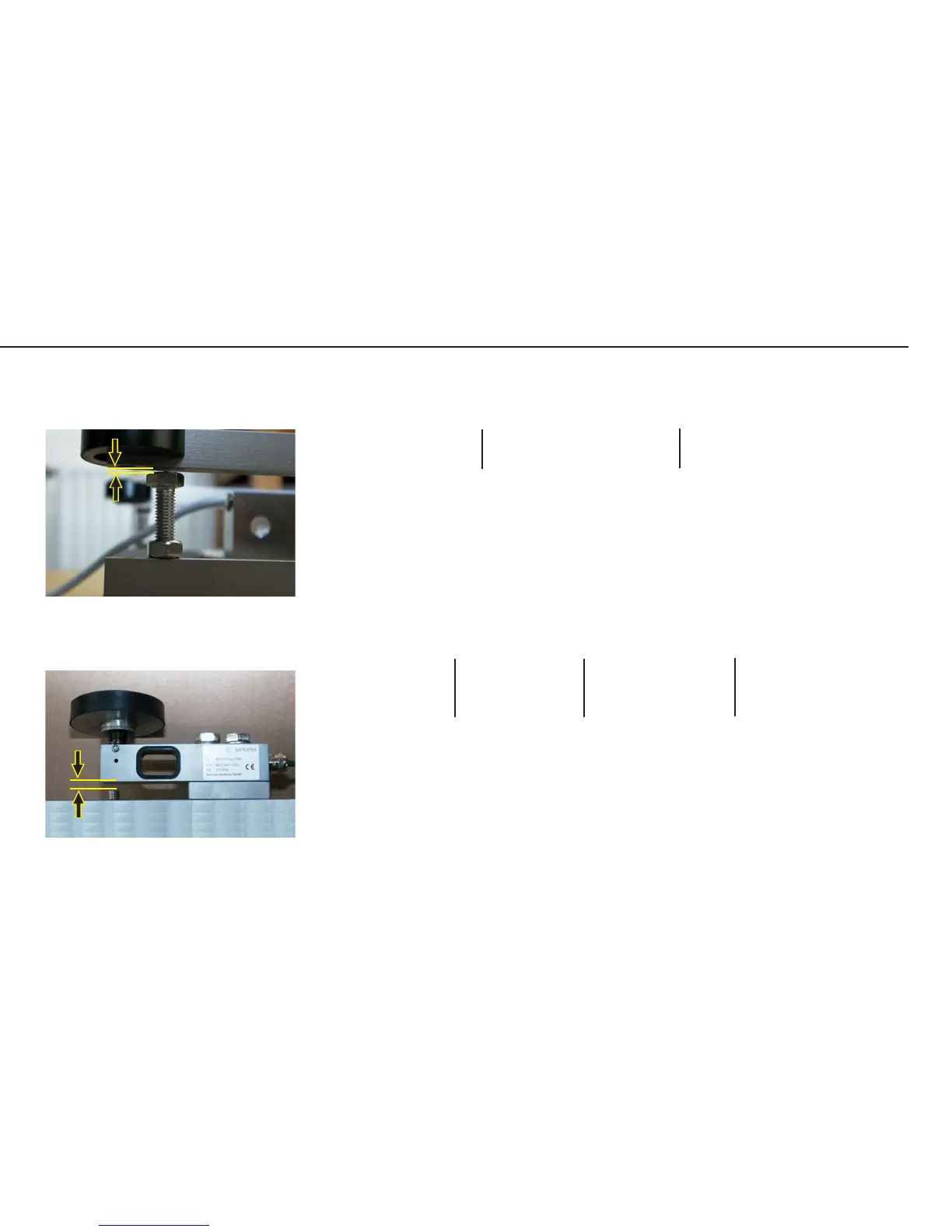

1. Weighing Platforms with One Load Cell: Steel
Platform nominal Test weight for Test weight for
capacity in kg middle stops in kg corner stops in kg
3 — 3 + 10%
6 — 6 + 10%
15 — 15 + 10%
30 — 30 + 10%
60 — 60 + 10%
150 — 150 + 10%
300 — 300 + 10%
2. Weighing Platforms with Four Load Cells: Steel
Platform nominal Test weight for Test weight for Nominal load cell
capacity in kg middle stops capacity in corner measurement path
in kg stop in kg in mm (in kg)
150 — — 0.4 (MP58T-91kg)
300 — — 0.4 (MP58T-227kg)
600 — — 0.6 (MP58T-454kg)
1500 — — 0.6 (MP58T-1134kg)
3000 — — 1.0 (MP58T-2268kg)
Adjusting the Weighing Platform
