Repairing the Weighing Platforms

lastz_drehm071206.xls


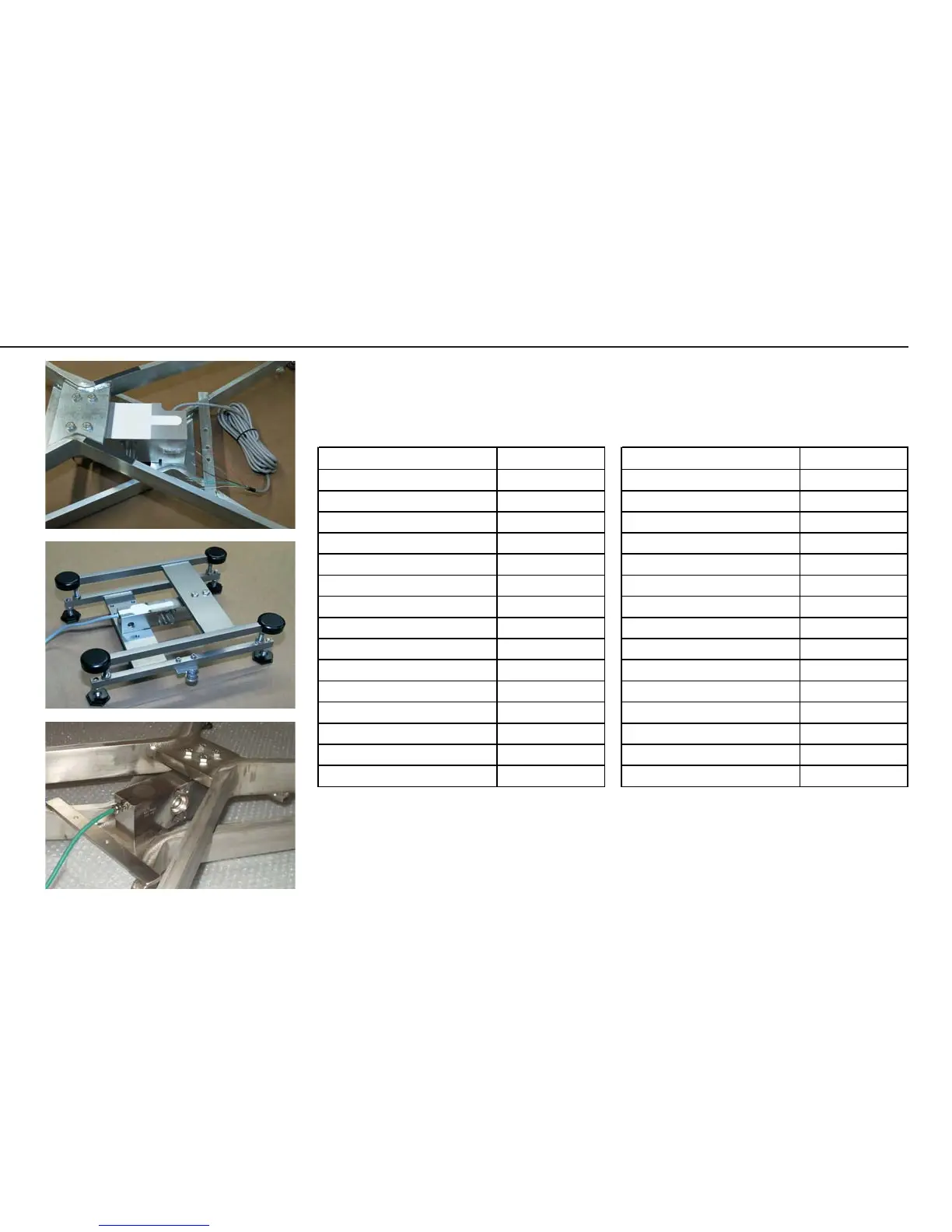

– Tighten the load cells with the required torque.

Torque Values

– After replacing load cells, you need to check the overload stops and adjust them

if necessary (see page 27-28).



Load cell designation Torque value

SAG type 011469/220kg C3 130Nm

SAG type 011231/550kg C3 130Nm

SAG type 011232/1100kg C3 130Nm

SAG type 011233/1760kg C3 130Nm

MP58T / 91kg C3 130Nm

MP58T / 227kg C3 130Nm

MP58T / 454kg C3 130Nm

MP58T / 1134kg C3 130Nm

MP58T / 2268kg C3 130Nm

SAG type 011241/7.5 kg C3 10Nm

SAG type 011242/15 kg C3 10Nm

SAG type 011243/30 kg C3 10Nm

SAG type 011244/50 kg C3 14Nm

SAG type 011245/100 kg C3 14Nm

Load cell designation Torque value

SAG type 011246/50 kg C3 14Nm

SAG type 011247/100 kg C3 14Nm

SAG type 011248/200 kg C3 14Nm

SAG type 011252/150 kg C3 35Nm

SAG type 011253/250 kg C3 35Nm

SAG type 011290/500 kg C3 35Nm

SAG type 011293/7,5 kg C3 14Nm

SAG type 011294/15 kg C3 14Nm

SAG type 011295/30 kg C3 14Nm

SAG type 011296/50 kg C3 14Nm

SAG type 011297/100 kg C3 14Nm

SAG type 011298/200 kg C3 20Nm

TEDEA 1510 / 100 kg 35Nm

TEDEA 1510 / 250 kg 35Nm

TEDEA 1510 / 500 kg 35Nm
