Sartorius MW1 User Manual

Display and Keypad
1 Display
(for details, see the chapter entitled
“Operating Design")
2 On/standby key
3 Zero key
4 Tare key
5 Function key (e.g., toggle between
gross and net values)
6 Print key (data output)
7 ID key
(for entering product information)
8 Numeric keypad
9 Info key (for viewing ID codes
and manual tare values)
10 Toggle key
(function depends on application)
11 OK key
(function depends on application)
12 Reference value key
(function depends on application)
13 Clear-function key
(function depends on application)
Back Panel of Display and Control Unit
14 Connector for weighing platform
15 Menu access switch
16 Optional:
Second interface (UniCOM)
17 Optional:
RS-232C interface (COM1)
18 Ground terminal
(equipotential bonding)
19 Power cord
Weighing Platform
20 Load plate
21 Level indicator (verified models only)
22 Leveling feet

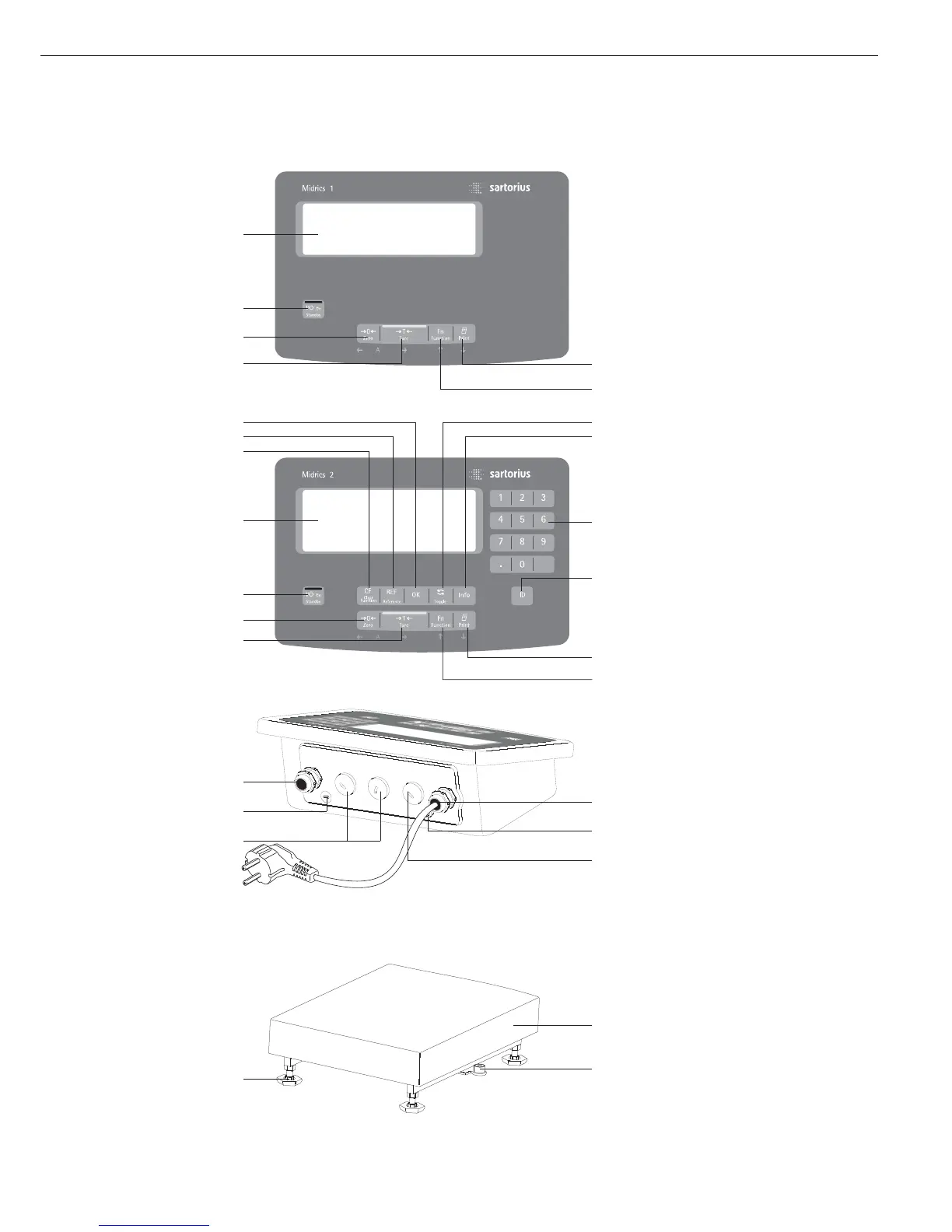

General View of the Equipment
7
6
5
10
9
14
8
7
11
12
13
1
2
3
4
Midrics 1
Midrics 2
Midrics
display and
control unit
Midrics
weighing platform
19
18
17
14
15
16
21
20
22
6
5
1
2
3
4
