Satec PM130P User Manual

Chapter 2 Installation 15

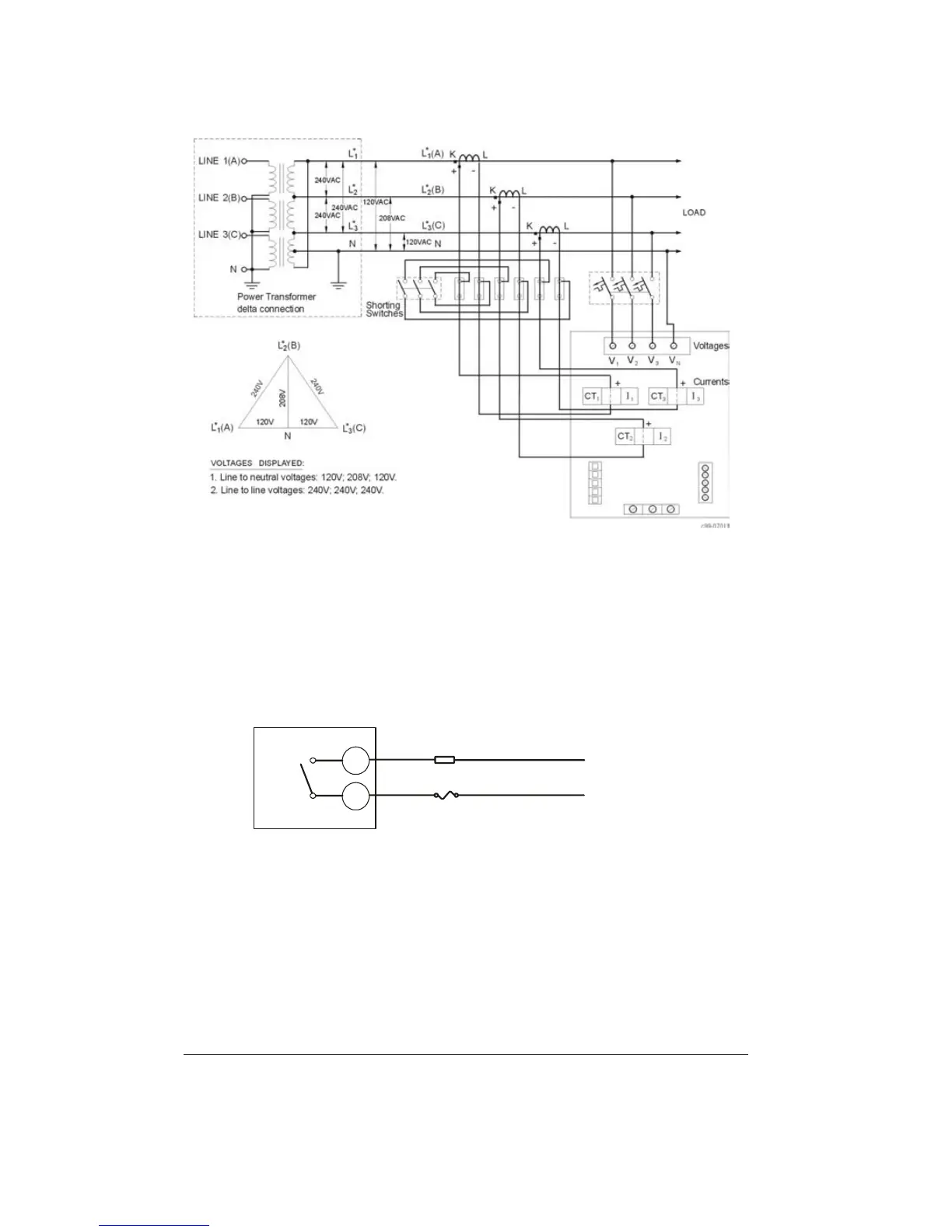

Figure 2-11 Four Wire Delta Direct Connection Using 3 CTs (3 element)
Wiring Mode = 4LL3 or 4Ln3
2.2.5 Relay
One relay (optional) is provided for energy pulsing, alarms or
remote control.
Figure 2-12 Relay Connection
c99-07014
RELAY
N
120V AC
LOAD
10A FUSE
