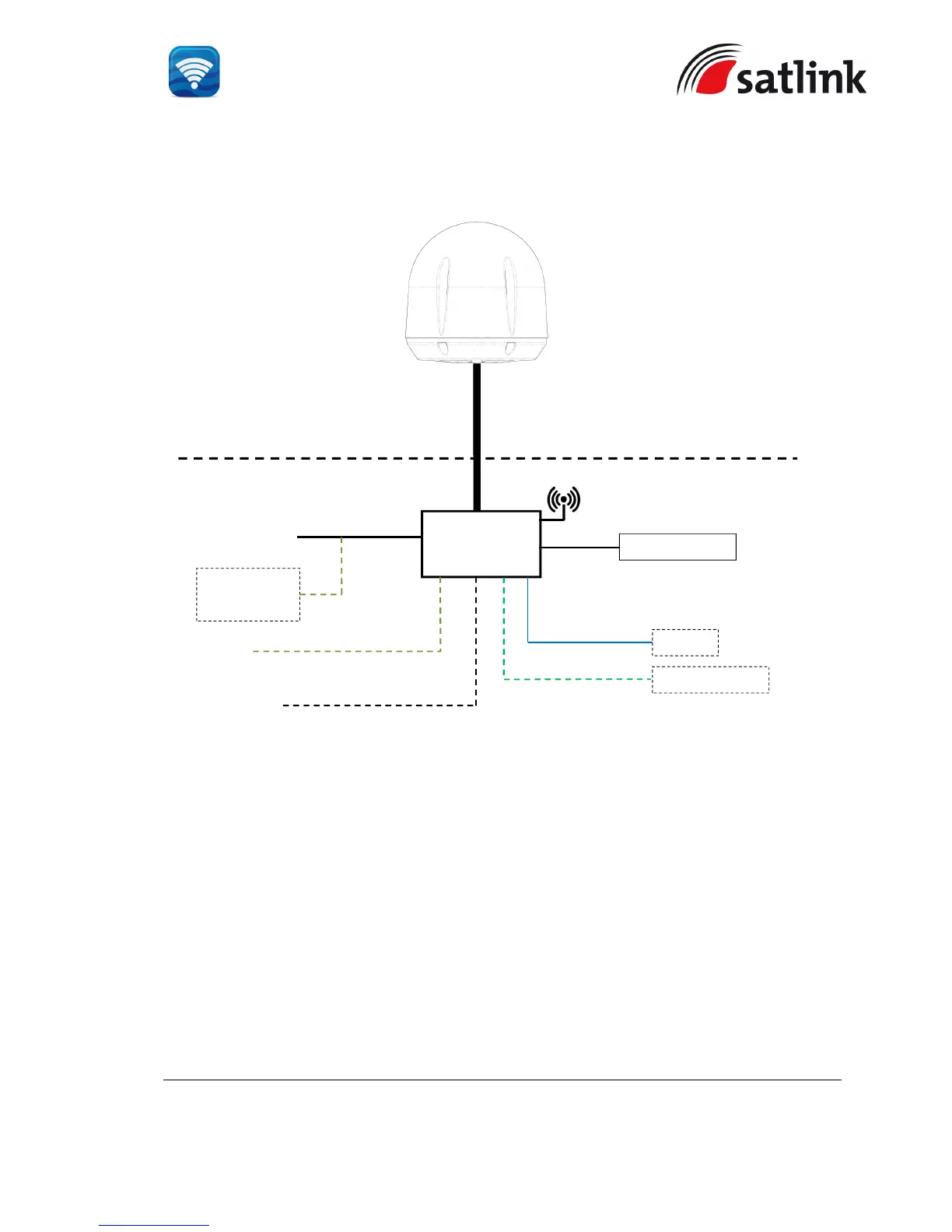

SYSTEM CONFIGURATION
Solid line refers to the basic configuration.
FLEET ONE ADU
FLEET ONE
BDU
Router
External Devices
Above Deck Unit
(To be installed in an exposed area)
Below Deck Unit
(To be installed in protected area)
AC/DC Power
Supply Unit
RJ45
I/O Interface
Navigation
Equipment
GPS O/P (NMEA 0183)
Wi-Fi
RS232 Serial
Analog Phone
15-m Antenna Cable
+12V / +24V DC
RJ11
Primary Handset
