SATLINK FLEET ONE Installation Manual Ref: SL00-01191 Ver: 003
Page 25 of 38
Proprietary Information Not To Be Disclosed Without Written Authorisation From
Satlink S.L., All Rights Reserved
3.1 BDU’s Outputs Connection
The additional information of the output ports of GPS and GPIO.

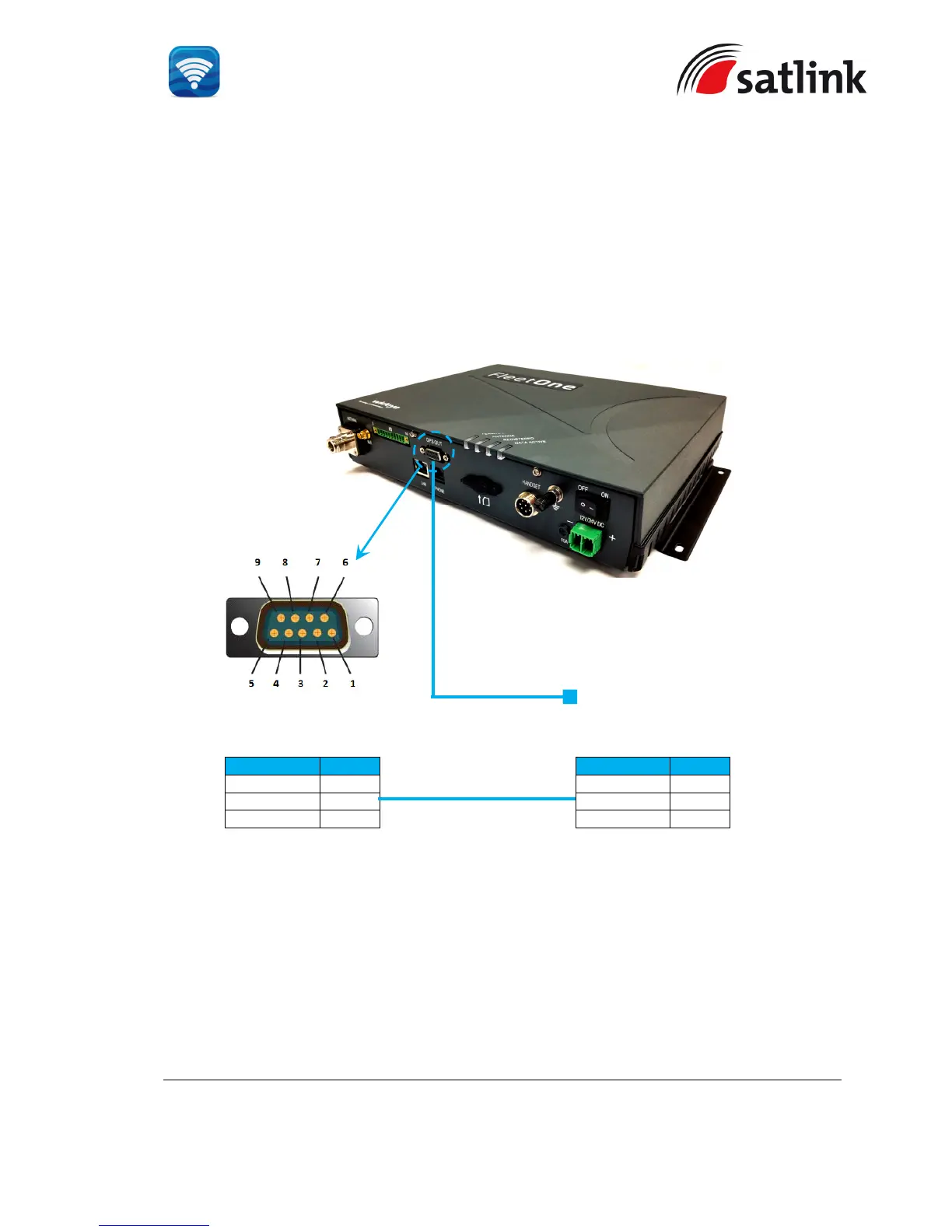

3.1.1 GPS Output Connector
The BDU has a GPS output (RS-232 serial) connector for outputting the GPS data in
NMEA0183 format.
RS-232 Output Pinout
Pin No.
Signal
Pin 3 TX
Pin 2 RX
Pin 5 GND
Navigation
Equipment
RS-232 Pinout
Pin No.
Signal
Pin 2 RX
Pin 3 TX
Pin 5 GND
