1.3 Below Deck Equipment

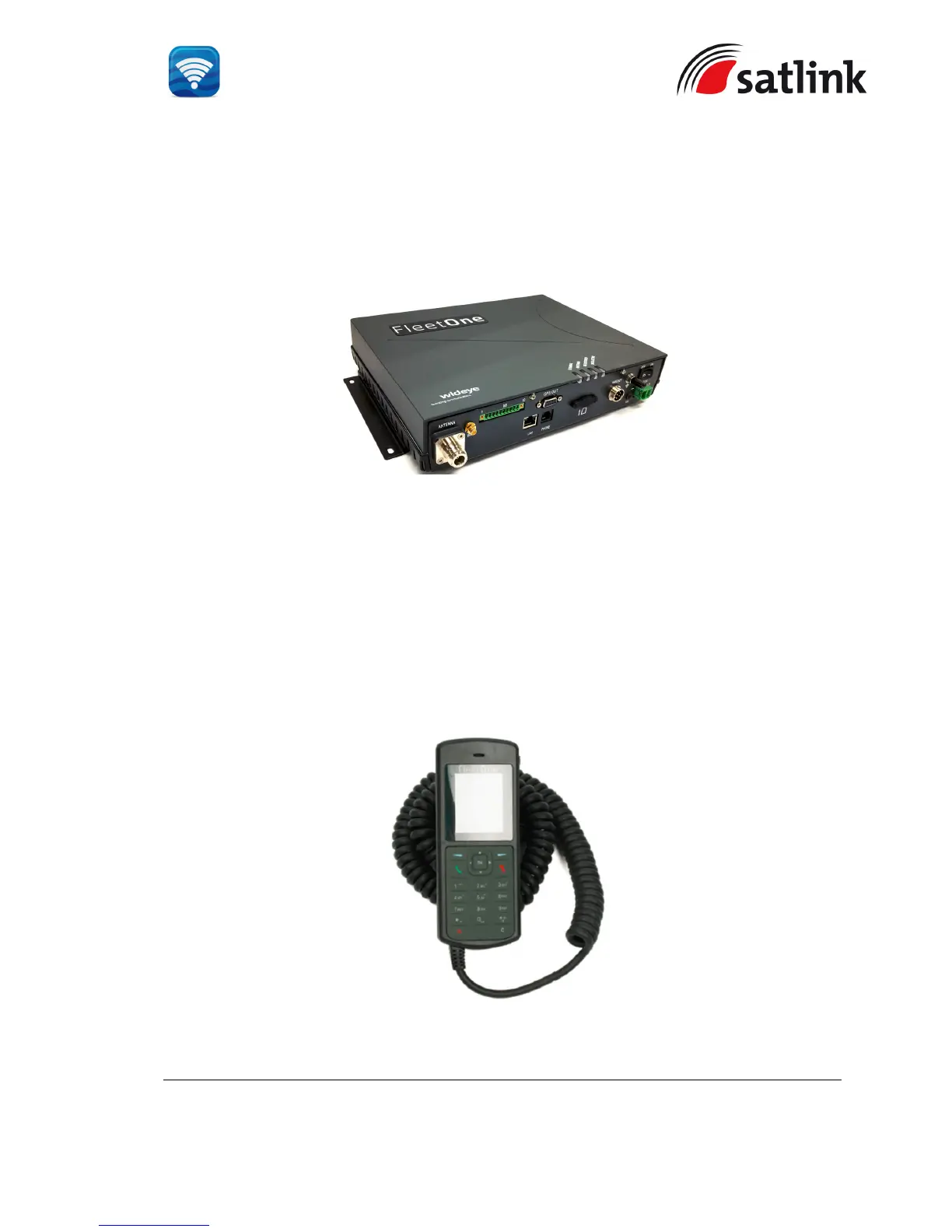

The BDU is the heart unit of the Fleet One UE. It has several interface ports and handles all
communication links between the ADU, Primary Handset and the local communication devices
such as analogue telephone, computer, network equipment, navigation equipment etc.
The BDU requires +12V or +24V DC power supply input. It supplies power to the ADU via a
single RF / coaxial antenna cable.
1.4 Wired Primary Handset with Cradle
The wired Primary Handset has a colour liquid crystal display (LCD) and keypad for making
and receiving normal voice calls and sending SMS, similar to any mobile phone. The handset
is provided with a cradle.
Additionally, it can serve as a remote access device for user to access various configuration
parameters supported by the BDU.
The Primary Handset’s connector is plugged into the BDU’s primary handset port. It is
powered directly from the BDU.
