2.3 Installation of Primary Handset

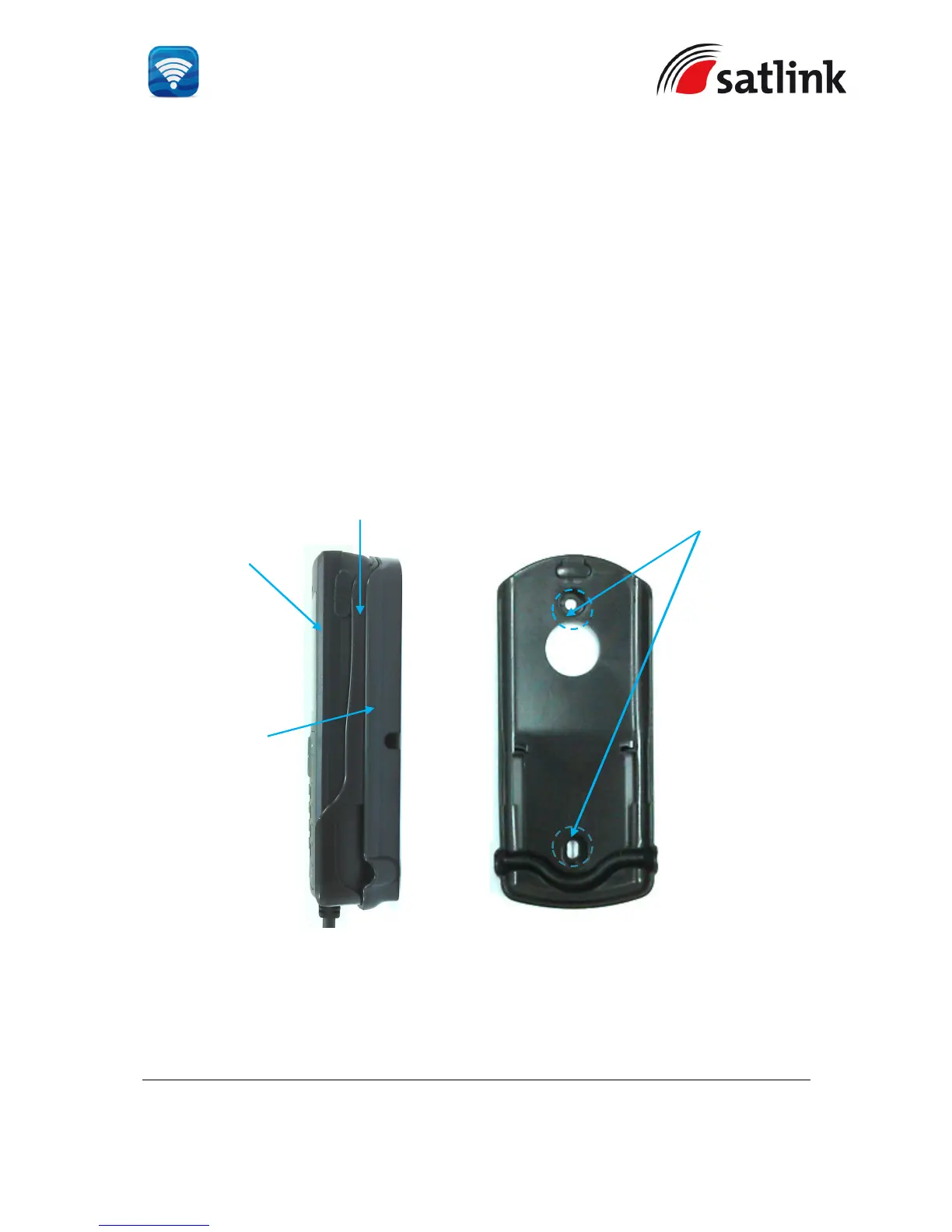

The primary handset is provided with cradle. It can be mounted on a desktop, bulkhead, top
ceiling or under captain’s console as similar as the BDU.
The primary handset is to be separated from its cradle so that the cradle can be fixed with
the M5 x 12mm self-tapping screws.
The procedure of the installing the cradle is simple as follow:
a. Separate the handset from the cradle and remove the plastic cover of the cradle.
b. Position the cradle on the mounting areas.
c. Fix the cradle with M5 x 12mm self-tapping screws, which are supplied.
d. Reattach the plastic cover onto the cradle.
e. Secure the handset onto the cradle.
The primary handset is placed on the cradle and its end connector is plugged securely to the
BDU’s handset circular port.
