The BDU can be installed on a desktop, bulkhead, top ceiling or under captain’s console.
The procedure of the installing the BDU is simple as follow:
Place the BDU on the desired installation area.

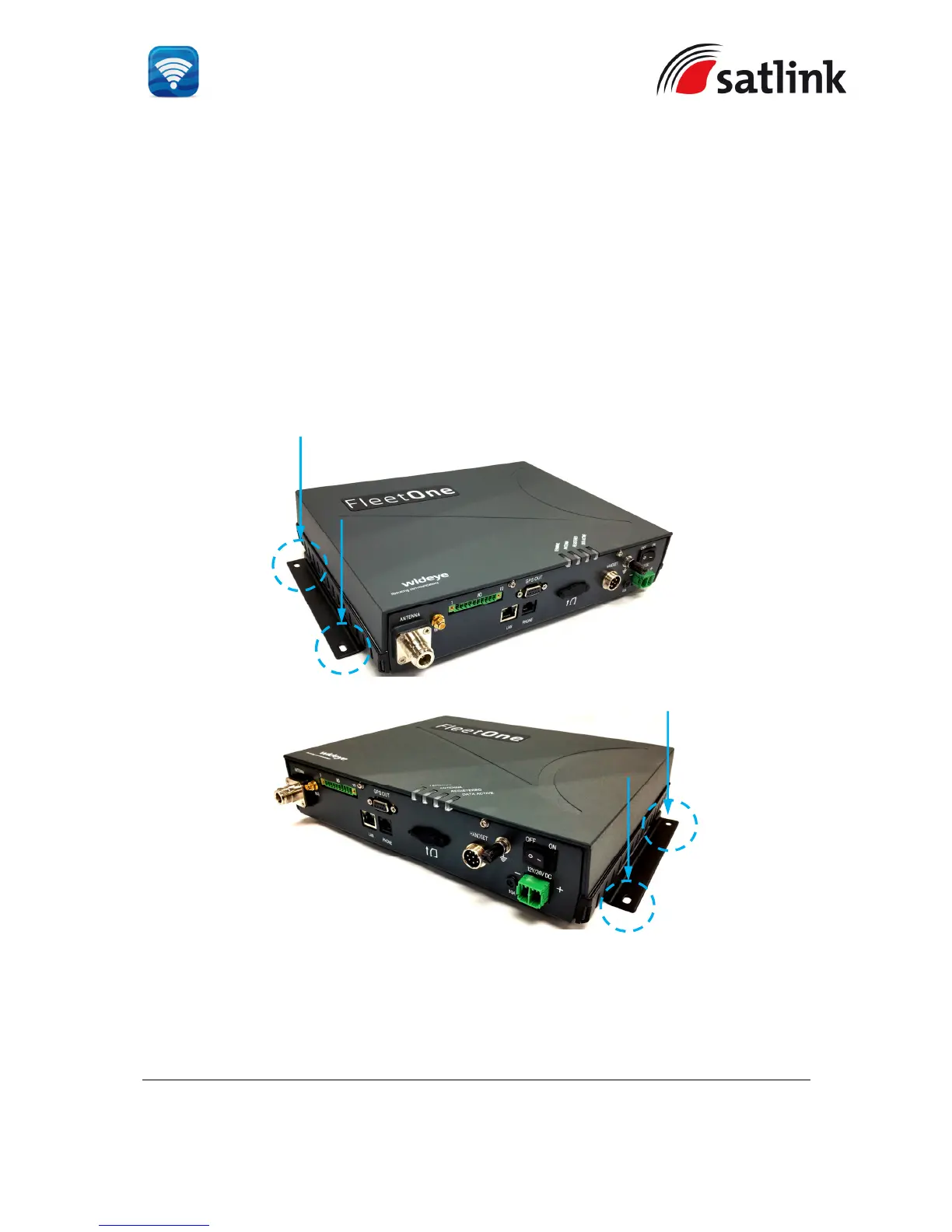

Look for the holes of the BDU’s mounting brackets.
Using the holes of mounting brackets and four M4x12mm self-tapping or machined
screws so that the BDU is secured to the selected surface.
