2.1.5 Antenna Mast
The antenna unit should be located at least 3-meter away from the ship’s mast having a
diameter of less than 15cm. If the antenna mast is available on the vessel and it is free of
any shock or vibration, its physical size shall support the weight and size of that Fleet One
ADU.

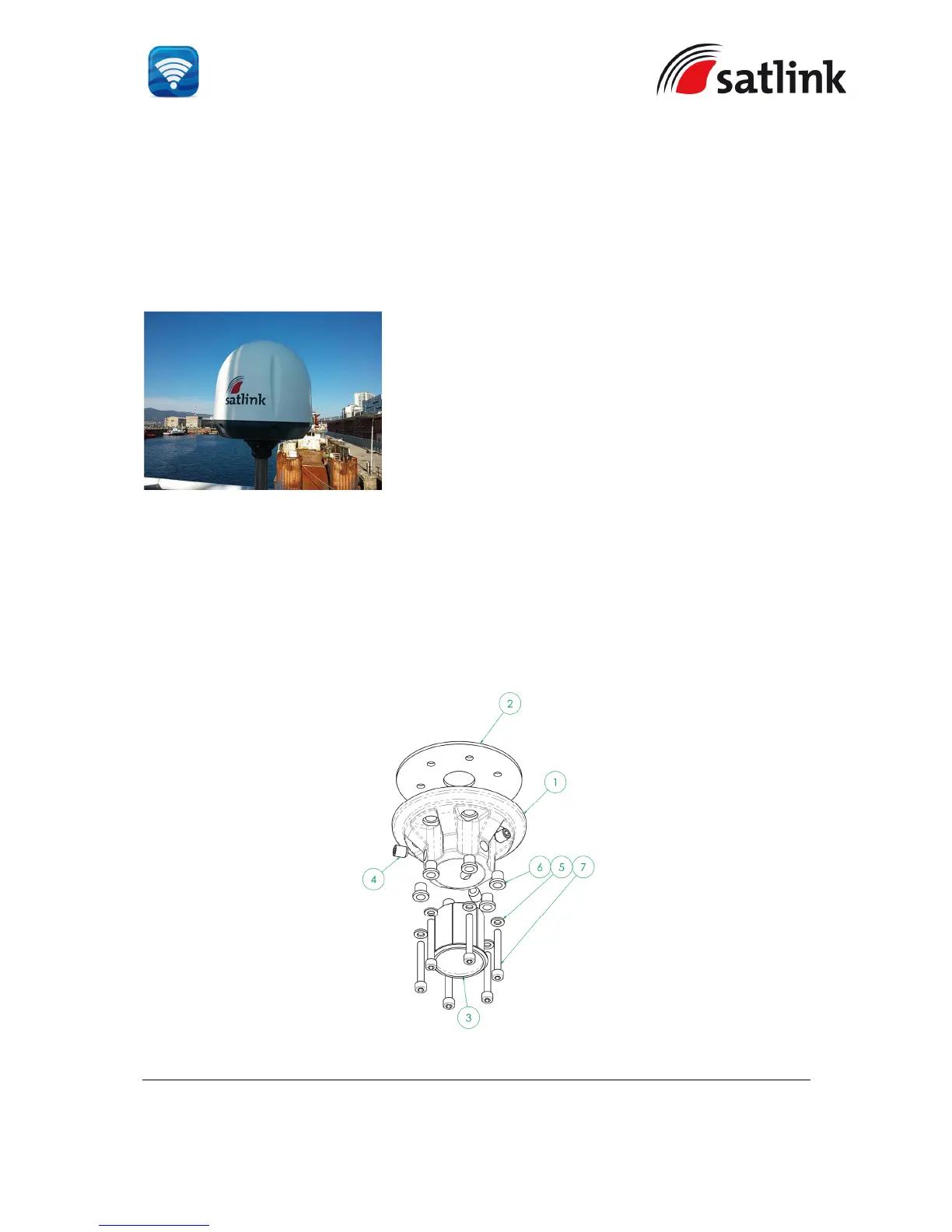

An example of the antenna mast is illustrated as below and the recommendations of the
antenna mast:
The antenna must be installed using Satlink mounting kit SL40-01937 that includes a flange
to be mounted on the antenna.
The antenna must be mounted on a 40mm stainless steel tube and run the coaxial cable
inside the tube.
The Satlink mounting kit flange is designed to meet the dimensions of the ADU’s mounting
base, where there are 6 holes.
The rubber gasket is required to be inserted between the ADU mounting base and the flange
.
