3 CONNECTIONS

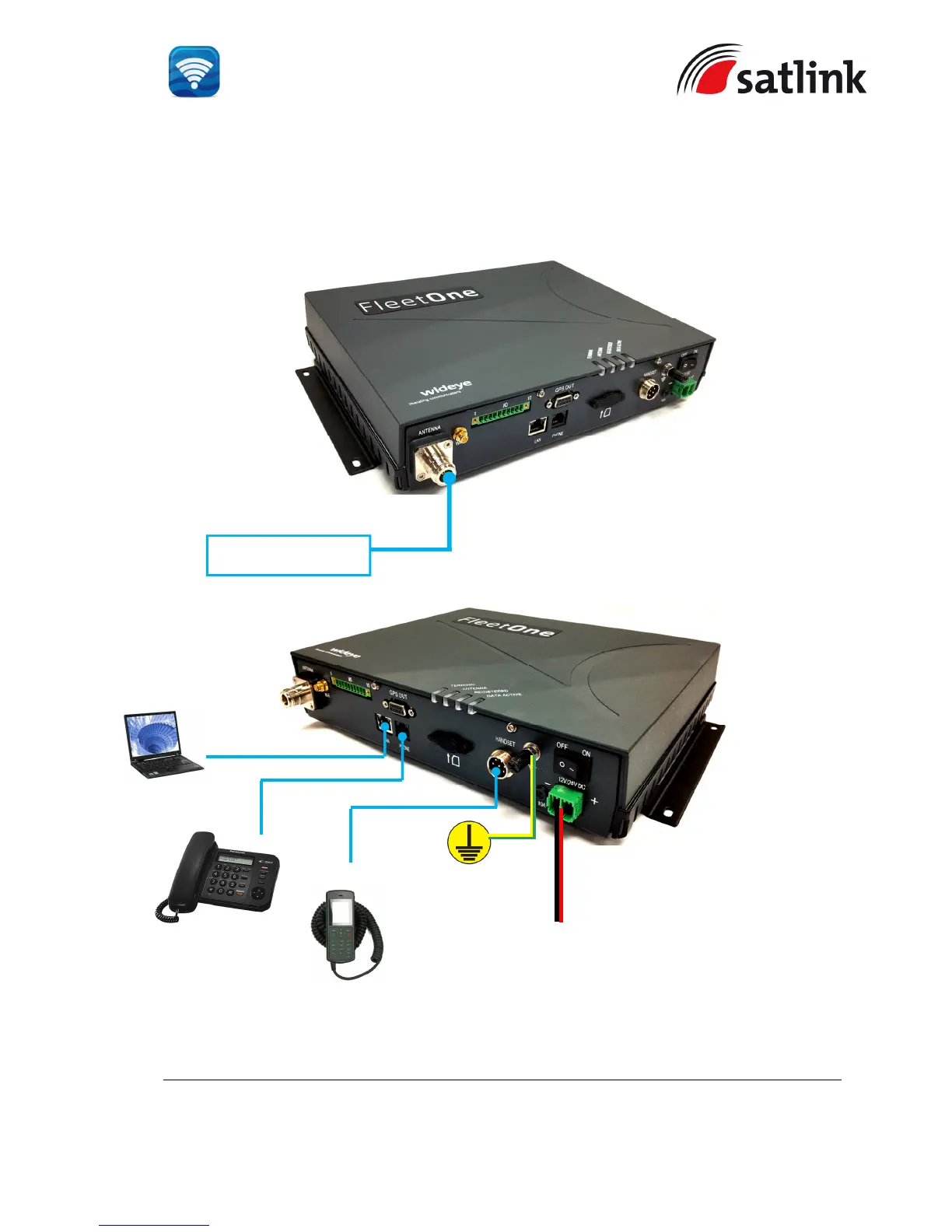

Below is the interconnection diagram of Fleet One Terminal with the cables.
+
1
2V/24V DC
Input from
Vessel’s power
distributor
Bolt to vessel’s
hull
Computer
1.5m Ethernet LAN
(Category 5) Cable
1.8m DC Power
Cable
Antenna Unit (ADU)
15-meter Antenna Cable
Primary Handset
1m Handset Cable
Telephone Cable
Standard
Analog Phone
