Section 5: Interface Specifications
LM Basic 408e/412e Operator’s Manual Page 5-9
5.11 SINGLE JOB BUFFER

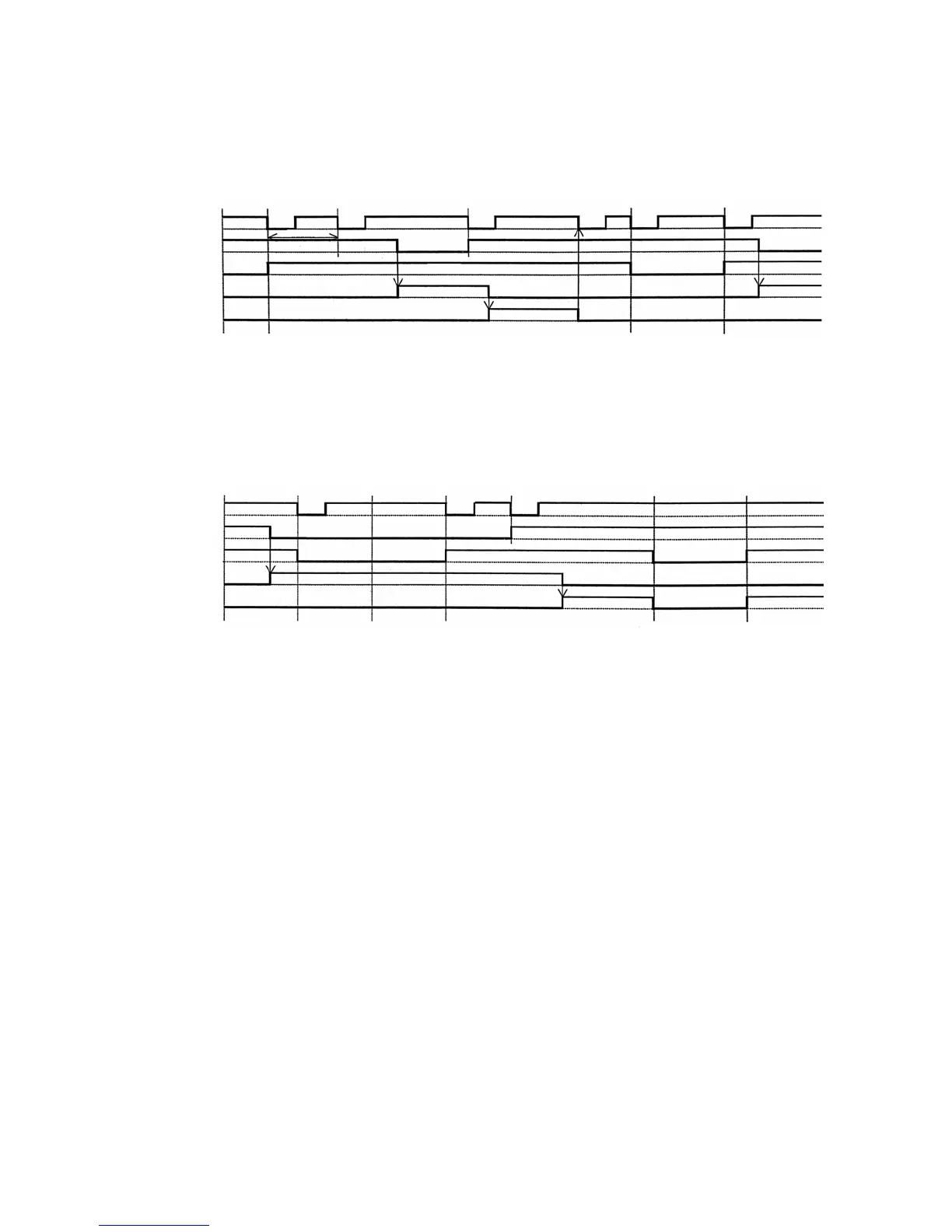

Timing Chart — Normal Processing
Timing Chart — Error Processing
Power ON
Printer side
SD
RD
Printer status
Initial
STX · · ETX (2
Online
Offline
Receive, analyze, edit (1)
Print (1)
Note: This protocol will execute an “XON” polling at an interval of 500ms, from the moment the power is turned on until the recept
Pressing Start / Stop Key Pressing Start / Stop Key
STX · · ETX (1)
XON XON XOFF XON XON XOFF
500ms
Receive, analyze
Power ON
Printer side
SD
RD
Printer status
Head Open
Online
Offline
Receive, analyze, edit (1)
Print (1)
Print (1)
Note: Paper End will be cleared when the Head has been closed.
Pressing Start / Stop key Pressing Start / Stop key
STX ········ · · · · · · · · · · · · · · · · · ···········ETX(1)
XONXOFF XOFF
Receive, analyze
Head Closed Paper End
