SECTION 2: INSTALLATION
SATO D508/D512 Operator Manual Page 2-9
6. Close the Top Cover.
7. After loading the label media, it is
recommended that you run a Test
Print to make sure the labels are
correctly loaded and printed.

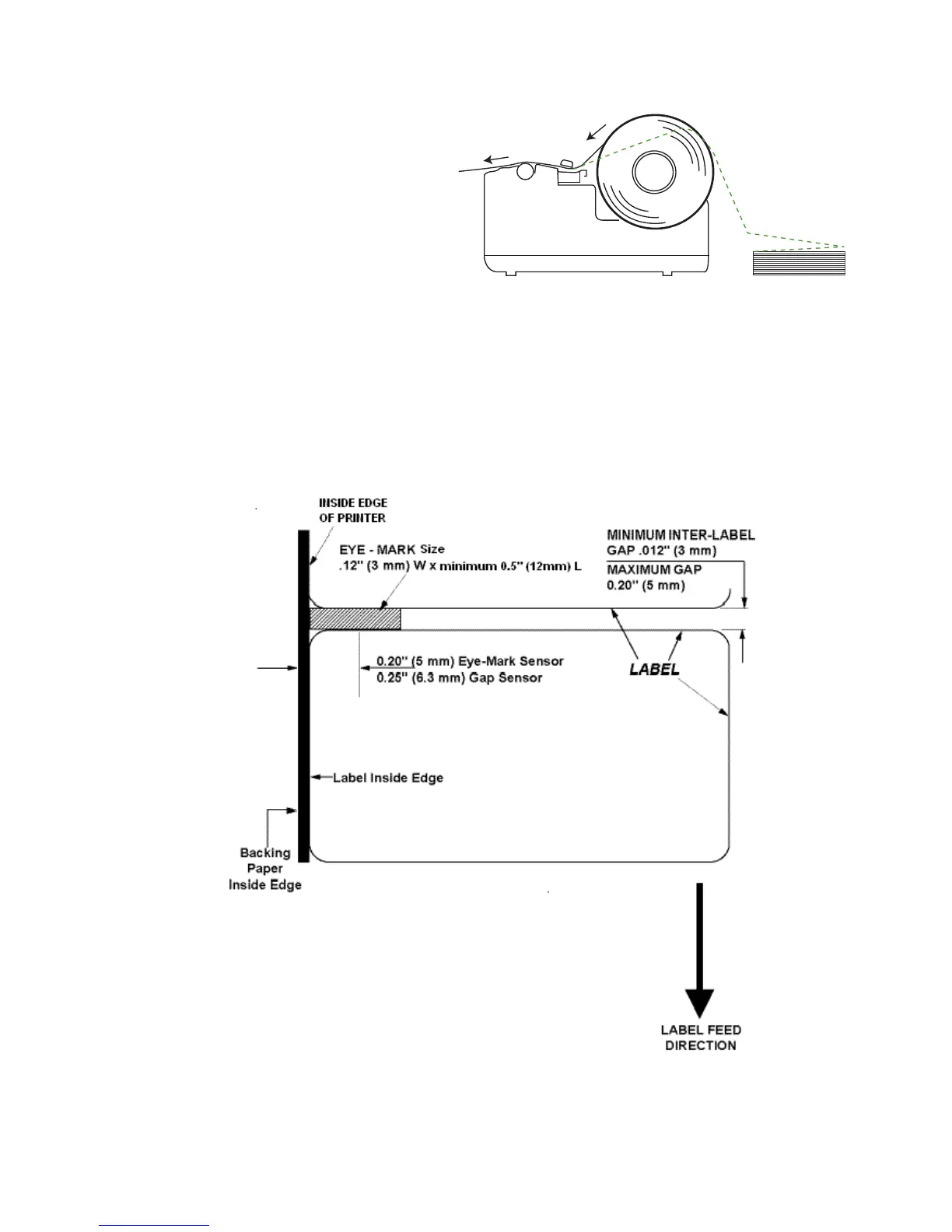

2.3 LABEL SENSING
The SATO D508 / D512 printer uses label Gap (see-through) sensing. The Sensor Assembly is
located on the left edge of the media and is automatically positioned by the Paper Guides.
Fanfold-label path
Roll-label path
Overview of the fanfold-paper loading path
