10 Press the LINE key to move the cursor under the yes option, then press FEED to select.
11 Enter all of the date data required for calender operation.
12 Verify proper operation and replace housing covers.

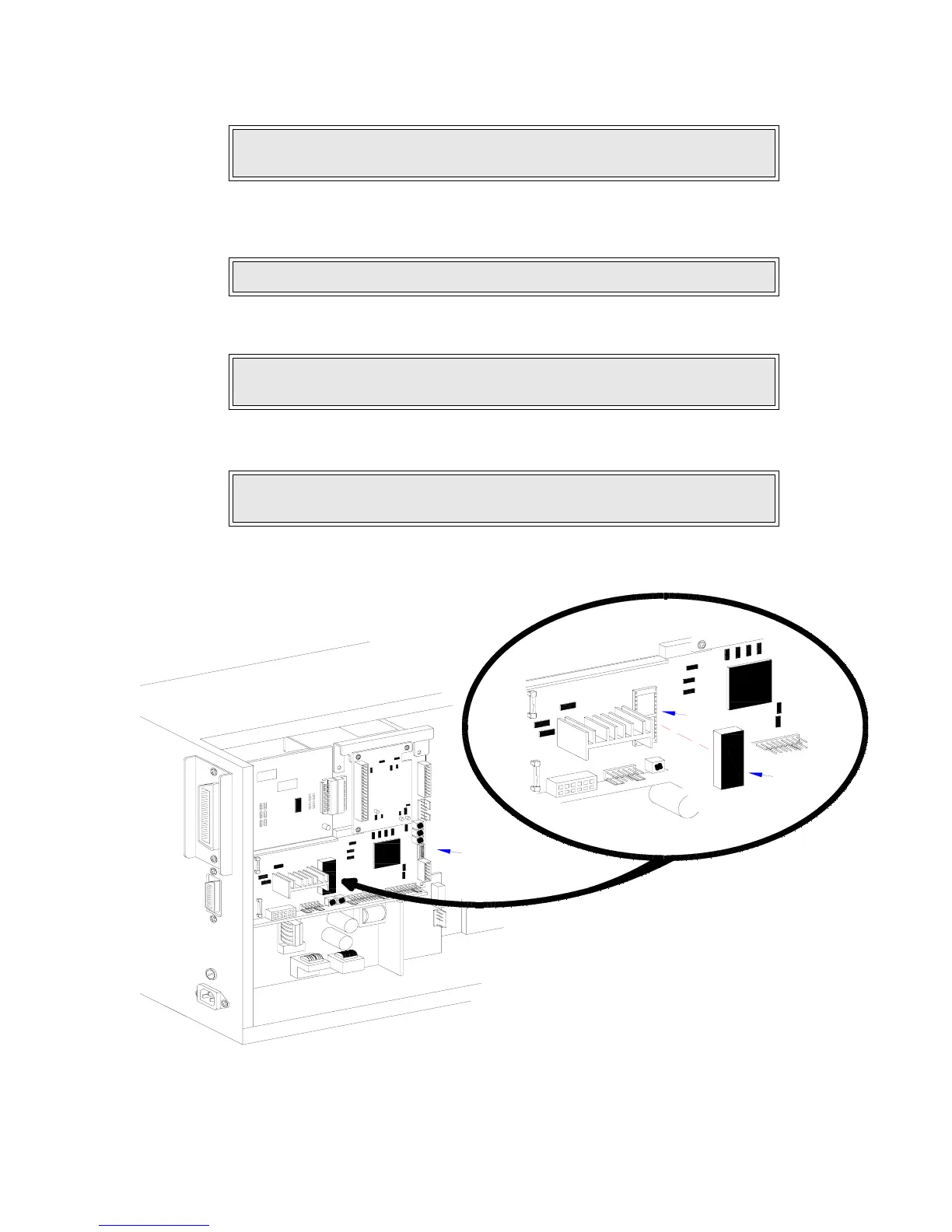

Figure 4-5, Real-Time Clock Installation
LCD DISPLAY: SET CALENDER
YES NO
LCD DISPLAY: CALENDER 00/00/00 00:00
NOTE: Press the LINE key to scroll through the numeral options and the
FEED key to move the cursor laterally for each date entry.
NOTE: Figure 10-1 in the Diagrams & Schematics section provides guidance
on housing cover installation.
