Section 7: Replacement Procedures
M84Pro Service Manual PN 9001111A Page 7-16

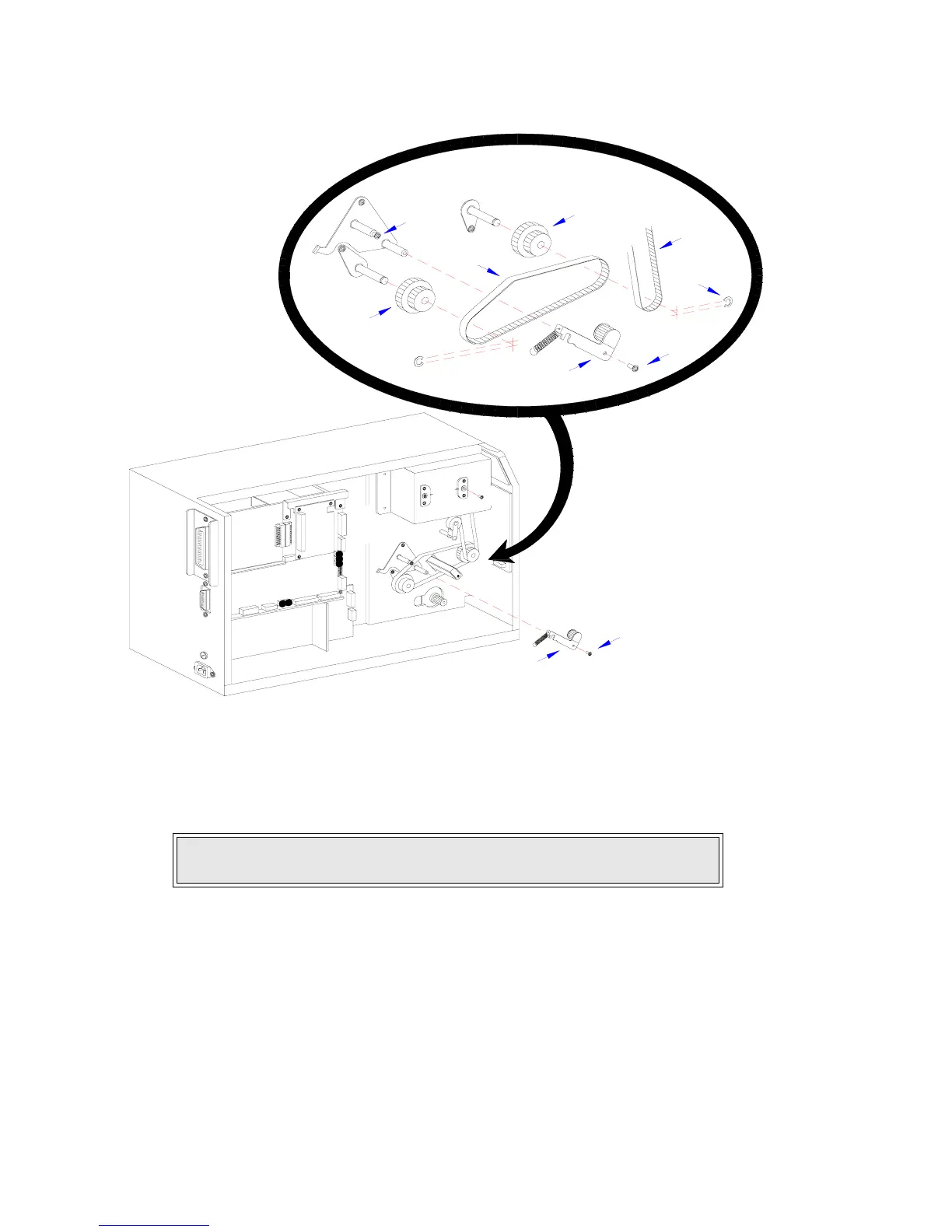

Figure 7-12c, Platen Roller Belt Replacement
7 Remove screw (11, Figure 7-12c) and loosen screw (12) to free pulley tension bracket (13).
8 Remove platen roller belt (14) and ribbon rewind belt (15) from feed roller pulley (16) and
platen roller pulley (17) respectively.
9 Remove two screws (19, Figure 7-12d) and four screws (20) and withdraw ribbon frame
(21).
10 Remove ribbon rewind belt (15) from ribbon rewind spindle pulley (22).
11 Prepare to replace timing belts (3), (4), (14), and (15).
12 Apply replacement belt (15) to pulley (22) and allow to suspend.
13 Apply ribbon frame (21) to the printer frame and secure using four screws (20) and two
screws (19).
NOTE: Remove e-clips (18) if removal or replacement of pulleys (16) and
(17) is required.
I
N
T
E
R
F
A
C
E
M
A
I
N
C
I
R
C
U
I
T
B
O
A
R
D
D
A
U
G
H
T
E
R
B
O
A
R
D
P
O
W
E
R
B
O
A
R
D
B
O
A
R
D
15
17
11
14
12
16
13
18
11
13
