5.3. Assigning Inputs and Outputs (I/Os)
The PAV-SIPA1SM, PAV-SIPA50SM, PAV-AOM8C, PAV-AOMBAL8C and PAV-SIPA125SM have this feature enabled. Assigned I/Os are Zone Groups
(logical assignments). This allows the software to use two or more physical I/Os as a single logical output. To group audio outputs for IP Audio
devices, follow the steps below:

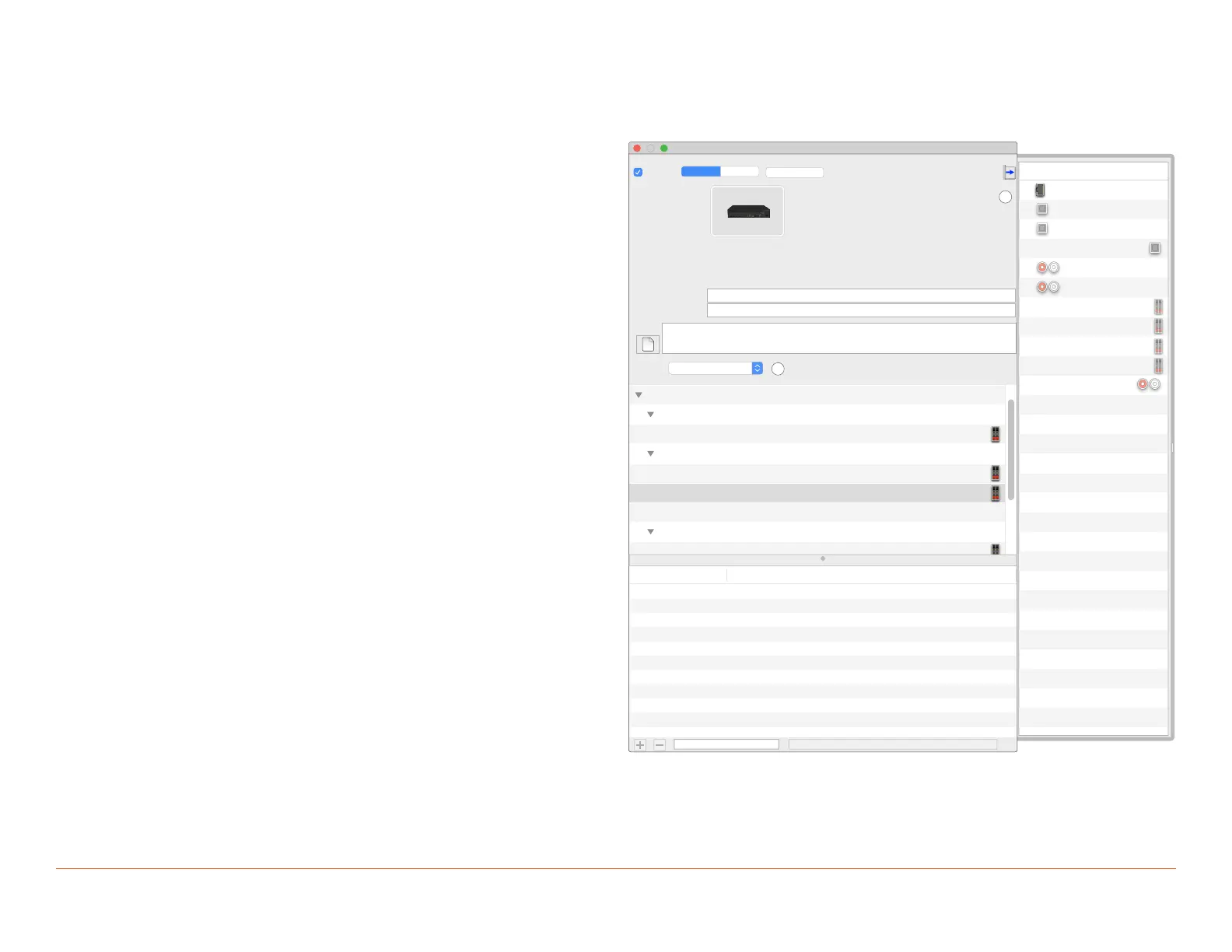

1. Select the PAV-SIPA[x]SM device.
2. Open Inspector.
3. Click the Show drop-down.
4. Select Assigned I/Os.
5. Move the physical outputs to be combined into the same
Audio Output group.
NOTE: The Digital Audio Output (TOSLINK) cannot be assigned to
a group in this way.
For more information on the use of this feature, refer to the article
on Support for Multiple Audio Outputs Active Simultaneously in a
Zone, available on the Savant Customer Community.
