Savant IP Audio 1 User Manual

Savant IP Audio Deployment Guide Copyright © 2020 Savant Systems, LLC
009-1571-03 | 200224 29 of 39
7. Expansion
Savant IP Audio devices can be connected to a dedicated AVB network using a Savant certified AVB/TSN switch, or series of connected switches.
IMPORTANT NOTES:
– The number of IP Audio devices which can be supported in any given system is defined by the Savant Host type and da Vinci runtime version
being used on site. For Host feature support limits, refer to the Release ReadMe or Host Licensing and Feature Support Matrix for the relevant da
Vinci runtime version, available via the Savant Customer Community.
– Some Host support parameters for IP Audio devices may reference additional “Listen-Only devices”, which includes IP Audio Micro Aperture
Speakers.

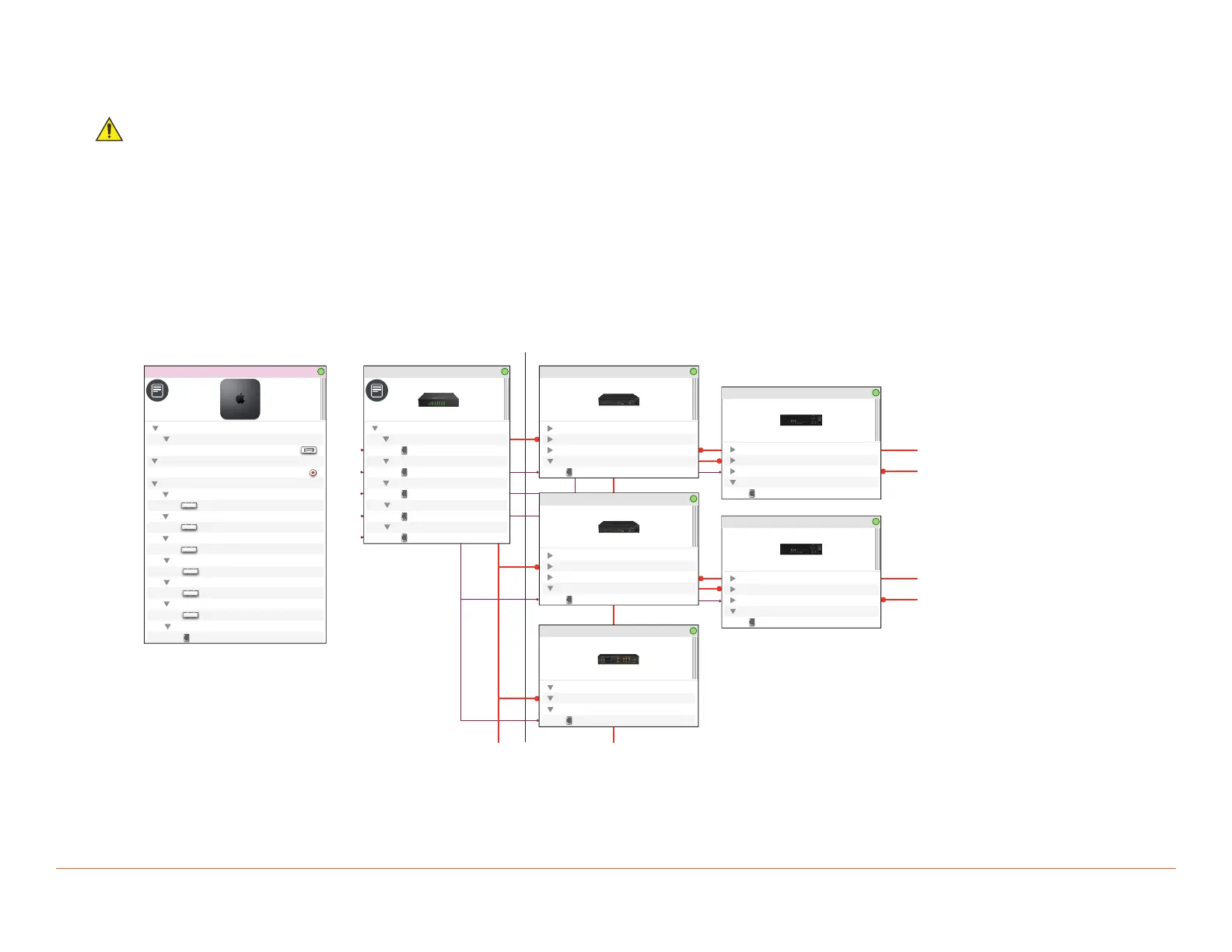

7.1. Blueprint Layout with 5 IP Audio devices
The example image below shows only the IP Audio devices and the AVB/TSN switch to illustrate how to have these devices work as a “single switch”.
Each IP Audio component’s AVB_A Ethernet Port is connected to one of the AVB_B Ethernet Ports on the switch. The AVB Switch Uplink Port must
be connected physically to the regular networking switch on site, however this connection is assumed, and not represented in Blueprint.
Savant Host
Assigned Outputs
Output 1
HDMI (HDMI)
Data
Ethernet (Ethernet)
Outputs
Headphone port (Analog/Optical Minijack)
Assigned Data
Thunderbolt
Thunderbolt (rightmost) (USB (A))
Thunderbolt 1
Thunderbolt (leftmost) (USB (A))
Thunderbolt 2
Thunderbolt (second from left) (USB (A))
Thunderbolt 3
Thunderbolt (third from left) (USB (A))
USB 1
USB (left) (USB (A))
USB 2
USB (right) (USB (A))
AVB Switch
Assigned Data
Port 1
AVB_B Ethernet Port (AVB (B))
Port 2
AVB_B Ethernet Port (AVB (B))
Port 3
AVB_B Ethernet Port (AVB (B))
Port 4
AVB_B Ethernet Port (AVB (B))
Port 5
AVB_B Ethernet Port (AVB (B))
SIPA125SM_01
Control Ports
Data
AVB_A Ethernet Port (AVB (A))
Assigned Inputs
Assigned Outputs
SIPA125SM_02
Control Ports
Data
AVB_A Ethernet Port (AVB (A))
Assigned Inputs
Assigned Outputs
SIPA50SM_01
Control Ports
Data
AVB_A Ethernet Port (AVB (A))
Assigned Inputs
Assigned Outputs
SIPA50SM_02
Control Ports
Data
AVB_A Ethernet Port (AVB (A))
Assigned Inputs
Assigned Outputs
AIM7C_01
Control Ports
Data
AVB_A Ethernet Port (AVB (A))
Assigned Inputs
